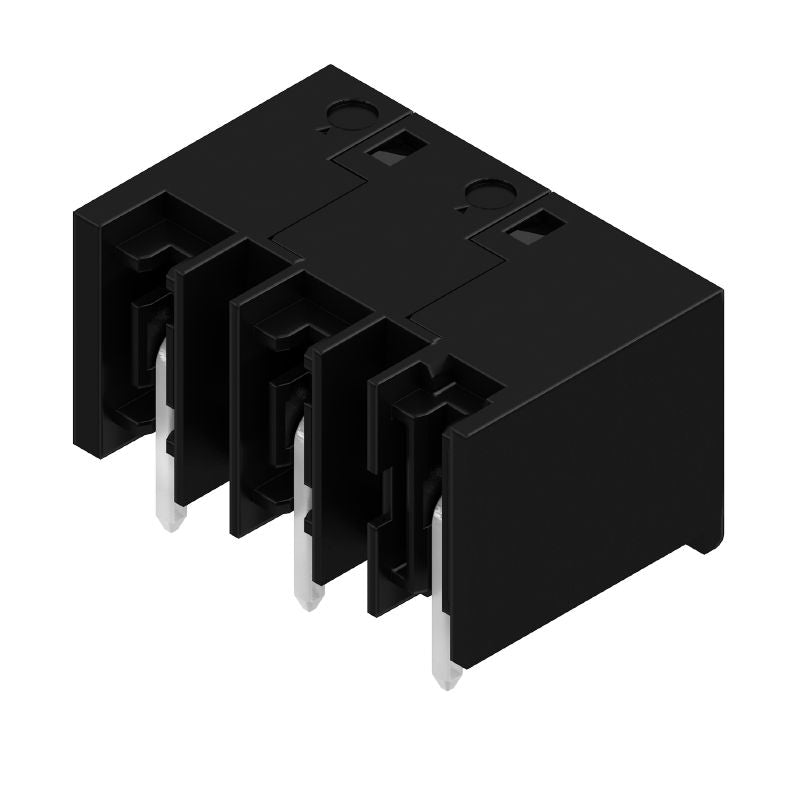

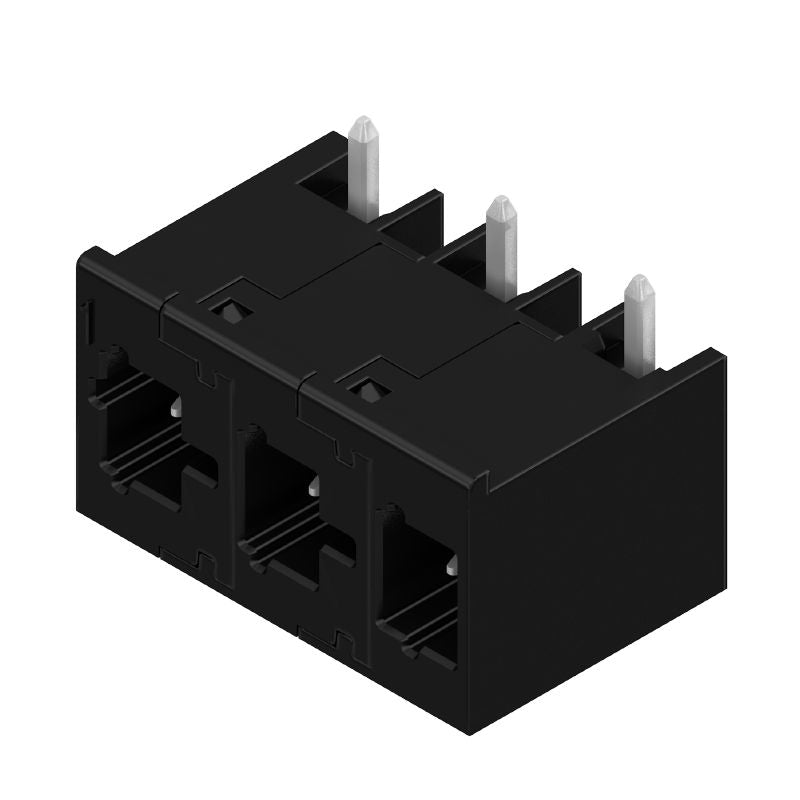

8000078322 - 3-Pole 7.50mm Elbow PCB Connector, RoHS Compliant (Pack of 25)
8000078322 - 3-Pole 7.50mm Elbow PCB Connector, RoHS Compliant (Pack of 25)
SKU: SKU: 8000078322 Download PDF
- 8000078322 - 3-Pole 7.50mm Elbow PCB Connector, RoHS Compliant (Pack of 25)
- 8000078322 - 3-Pole 7.50mm Elbow PCB Connector, RoHS Compliant (Pack of 25)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
This PCB plug-in connector features a male header, ideal for THT/THR soldering, with a pitch of 750 mm It is designed to support 3 poles and includes a unique 270° elbow shape for versatility Each piece is packaged in a tube and meets RoHS compliance along with standard certifications The connector operates effectively in a temperature range from -50 °C to 125 °C and weighs 3124 g, making it a reliable choice for your electronic needs.
Features and Benefits:
•Compliant with RoHS without exemptions.
•Packaged in a tube.
•Insulating material is PA 9T.
•The product family is OMNIMATE 4.0.
•Number of solder pins per pole is 1.
•Solder pin length is 3.2 mm.
•Protection degree is IP20.
•Rated current up to 30.4 A at 1000 V.
•Board connection in various electronic setups.

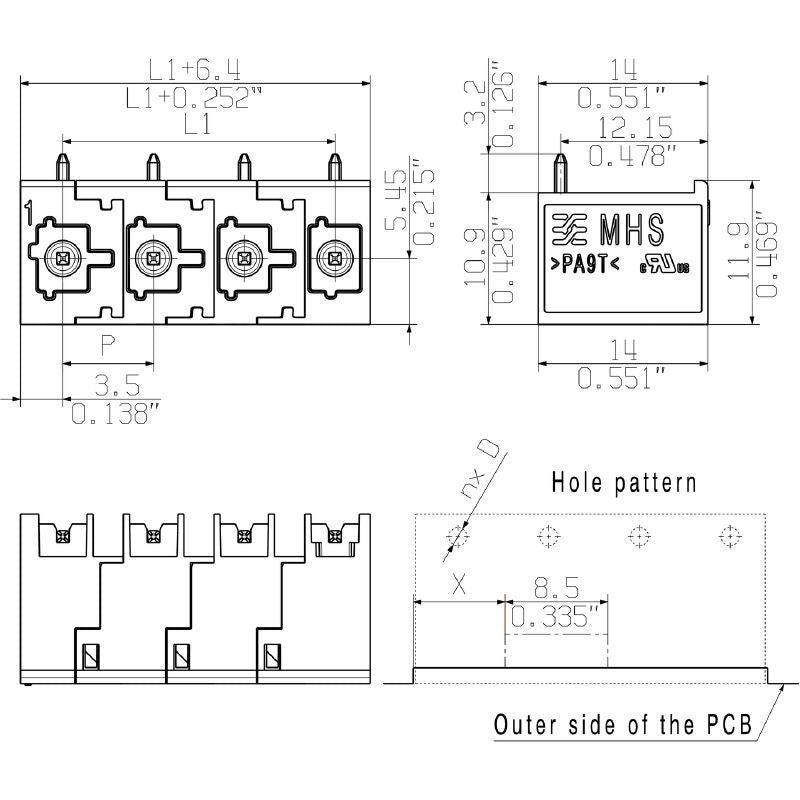

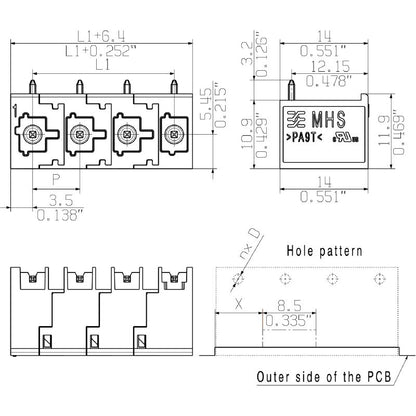

Specifications:
| Depth | 14 mm |
| Height | 14.1 mm |
| Width | 21.4 mm |
| Ambient temperature | -50 °C…125 °C |
| Number of poles | 3 |
| Pitch in mm (P) | 7.5 mm |
| Solder eyelet hole diameter (D) | 1.4 mm |
| Rated voltage (Use group B / UL 1059) | 300 V |
| Rated current (Use group B / UL 1059) | 18.5 A |
| UL 94 flammability rating | V-0 |
| Moisture Level (MSL) | 1 |
| Insulating material group | I |
