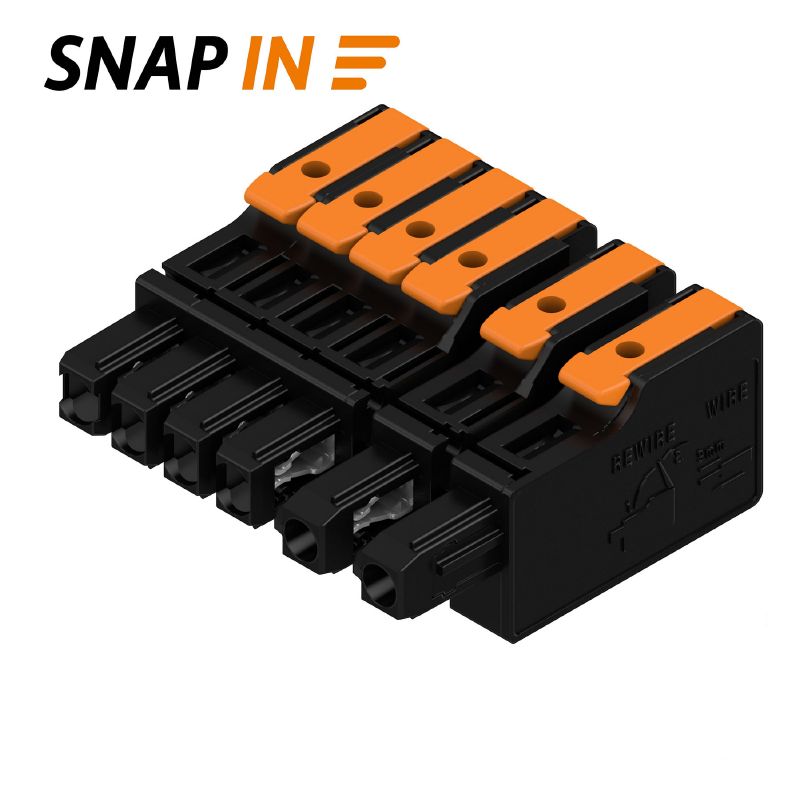

8000078350 - 7.50mm Pitch Female PCB Connector, 6 Pole, 1000V (Pack of 48)
8000078350 - 7.50mm Pitch Female PCB Connector, 6 Pole, 1000V (Pack of 48)
SKU: SKU: 8000078350 Download PDF
- 8000078350 - 7.50mm Pitch Female PCB Connector, 6 Pole, 1000V (Pack of 48)
- 8000078350 - 7.50mm Pitch Female PCB Connector, 6 Pole, 1000V (Pack of 48)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing our reliable PCB plug-in connector, designed specifically for female plugs with a 750 mm pitch and accommodating 6 poles This versatile connector facilitates a range of wire connections and adheres to RoHS standards, ensuring an environmentally responsible choice Each box contains 48 connectors, making it a practical option for various applications
With a robust rated voltage of 1000 V and a current capacity of 34.
6 A as per IEC standards, it also meets UL ratings at 185 A for select wire sizes Engineered to function in extreme temperatures from -50 °C to 125 °C, this connector prioritizes safety by meeting rigorous protocols that minimize the risk of unintended electrical contact.
Features and Benefits:
•Field connection type with SNAP IN lever.
•Touch-safe protection according to DIN VDE standards.
•Compliant with RoHS and environmental regulations.
Specifications:
| Number of poles | 6 |
| Pitch | 7.5 mm |
| Rated cross-section | 2.5 mm² |
| Plugging cycles | ≥ 25 |
| Insulating material | PBT GF |
| Operating temperature range | -50 °C to 125 °C |
| Storage temperature range | -25 °C to 55 °C |
| Rated current | 34.6 A |
| Rated voltage | 1000 V |
| Clamping range | 0.34 mm² to 4 mm² |
| Wire connection cross section AWG | AWG 20 - AWG 12 |
