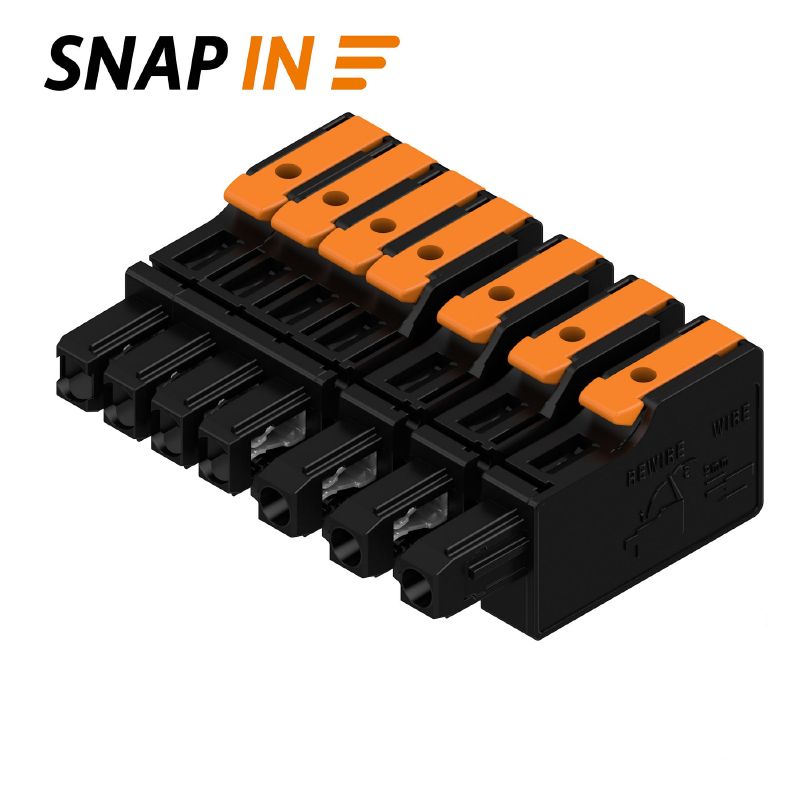

8000078351 - 7.5mm 7-Pole Female Plug PCB Connector with SNAP IN Lever (Pack of 42)
8000078351 - 7.5mm 7-Pole Female Plug PCB Connector with SNAP IN Lever (Pack of 42)
SKU: SKU: 8000078351 Download PDF
- 8000078351 - 7.5mm 7-Pole Female Plug PCB Connector with SNAP IN Lever (Pack of 42)
- 8000078351 - 7.5mm 7-Pole Female Plug PCB Connector with SNAP IN Lever (Pack of 42)
Couldn't load pickup availability
Description:
Introducing the MPS 7S/03-5/04 S TN B B female plug PCB connector, featuring a 75 mm pitch and a capacity for 7 poles This connector is RoHS compliant and holds UL certification under E60693, ensuring reliability and safety Designed for easy field connections, it employs a SNAP IN mechanism paired with a lever to facilitate multiple wire connection methods With an operating temperature range of -50 °C to 125 °C and a storage temperature range of -25 °C to 55 °C, it is versatile enough to accommodate various wire sizes for diverse applications.
Features and Benefits:
•Built for snap-in lever connections.
•Certified RoHS compliant.
•Compatible with a wide range of wire sizes and types.
•Designed for easy assembly.
•Touch-safe protection according to DIN VDE standards.
Specifications:
| Pitch in mm | 7.5 |
| Number of poles | 7 |
| Rated voltage (IEC) | 1000 V |
| Rated current (IEC) | 34.6 A |
| Net weight | 20.249 g |
| Ambient temperature | -50 °C to 125 °C |
| Insulating material | PBT GF |
| Contact material | Cu-alloy |
| Rated impulse voltage (IEC II/2) | 6 kV |
| Stripping length | 9 mm |
| Clamping range min | 0.34 mm² |
| Clamping range max | 4 mm² |
| UL voltage rating | 1000 V |
