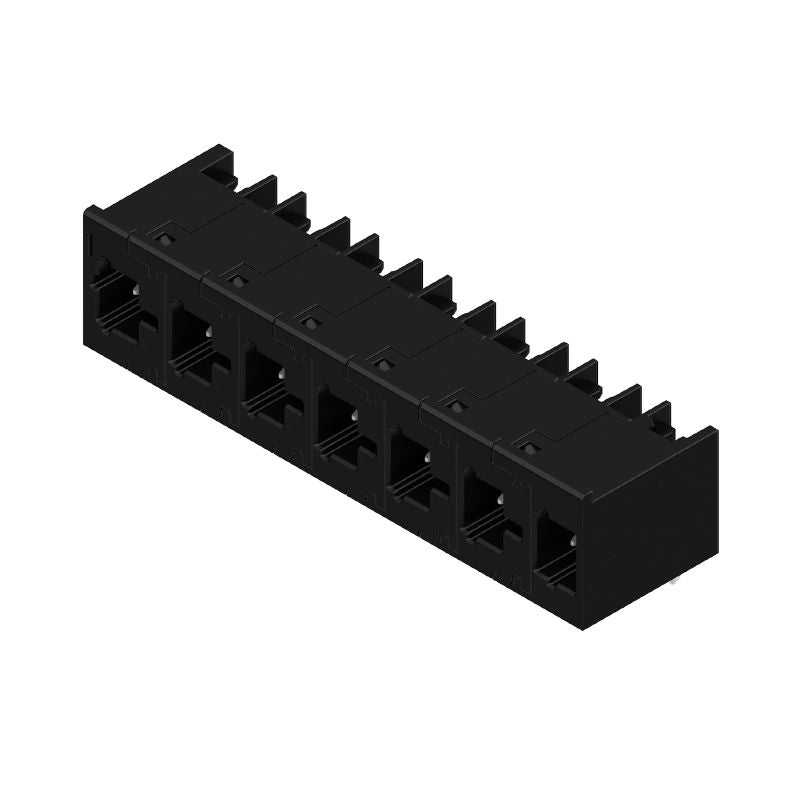

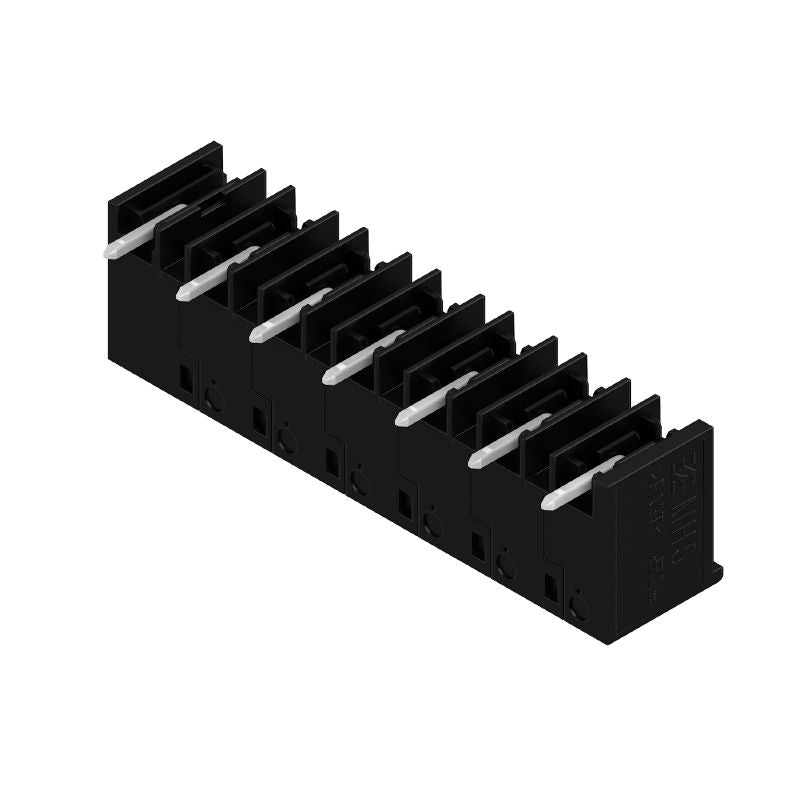

8000078312 - 7-Pole Male PCB Connector, 7.50mm Pitch, 90° Angle (Pack of 10)
8000078312 - 7-Pole Male PCB Connector, 7.50mm Pitch, 90° Angle (Pack of 10)
SKU: SKU: 8000078312 Download PDF
- 8000078312 - 7-Pole Male PCB Connector, 7.50mm Pitch, 90° Angle (Pack of 10)
- 8000078312 - 7-Pole Male PCB Connector, 7.50mm Pitch, 90° Angle (Pack of 10)
Couldn't load pickup availability
Description:
Discover this durable male header plug-in connector, perfect for mounting onto PCBs with THT/THR solder connections With a 750 mm pitch, this connector features 7 poles arranged at a convenient 90° angle It meets ROHS standards and boasts UL certification Designed to handle IEC voltage ratings of up to 1000 V and current ratings of 304 A, it also complies with UL standards, offering ratings of 300 V and 18.
5 A This reliable connector is an essential component for your electronic projects.
Features and Benefits:
•Compatible with ambient temperatures ranging from -50 °C to 125 °C.
•Compliant with RoHS regulations without exemptions.
•Crafted from insulating material PA 9T.
•Rated for 25 plugging cycles minimum.
•IP20 protection degree against foreign objects.

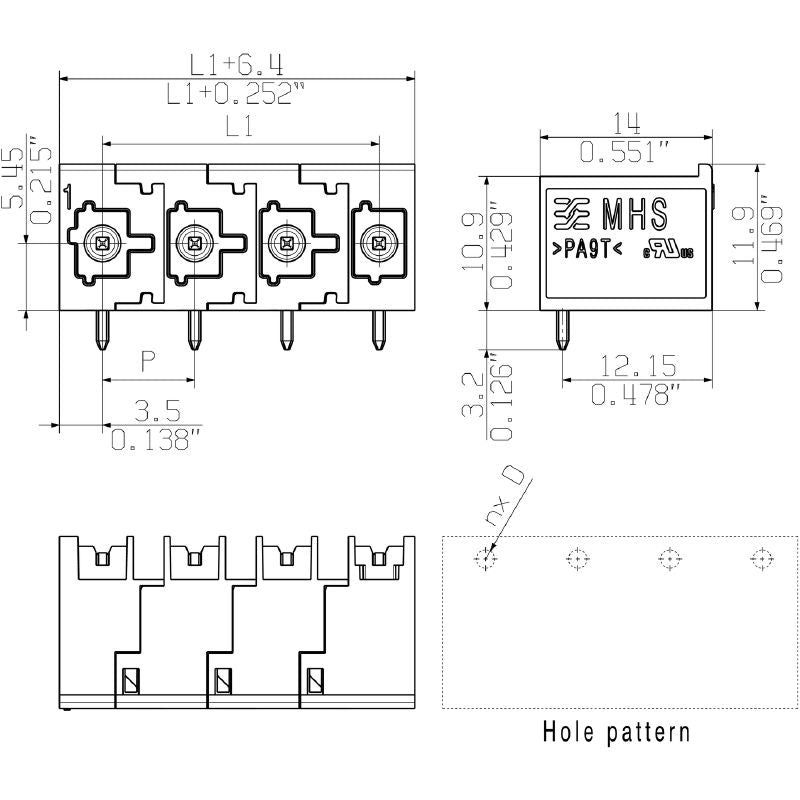

Specifications:
| Depth | 14 mm |
| Height | 15.1 mm |
| Width | 51.4 mm |
| Operating temperature range | -50 °C to 125 °C |
| IEC rated voltage | 1000 V |
| UL rated voltage | 300 V |
| Rated current at 20°C | 30.4 A |
| Number of poles | 7 |
| Plugging force/pole | 9 N |
| Pulling force/pole | 8 N |
| Insulating material group | I |
| Storage temperature min | -25 °C |
| Storage temperature max | 55 °C |
