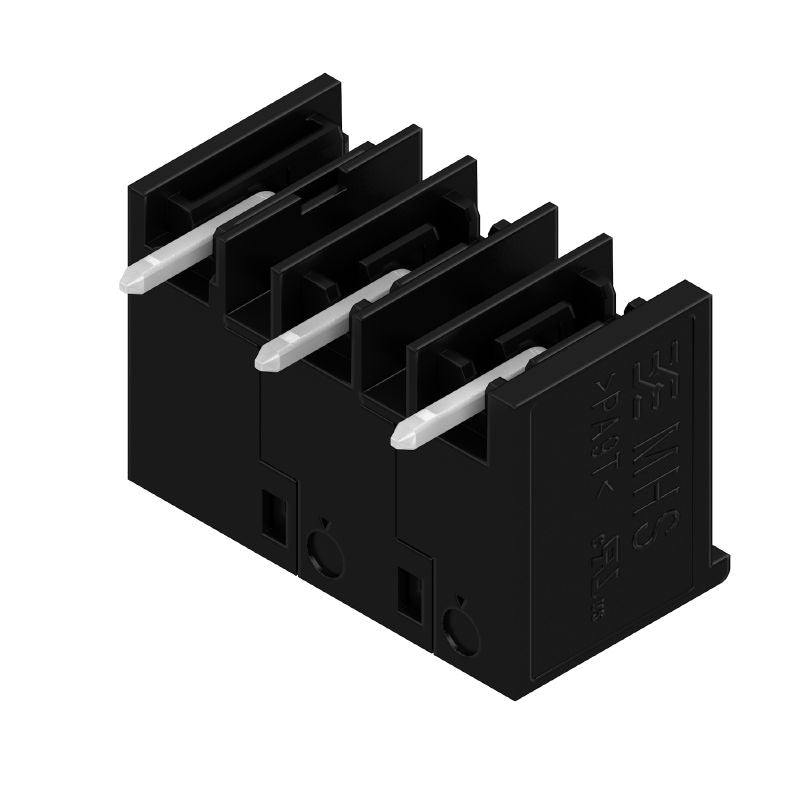

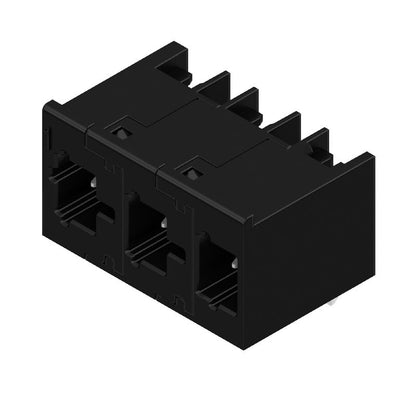

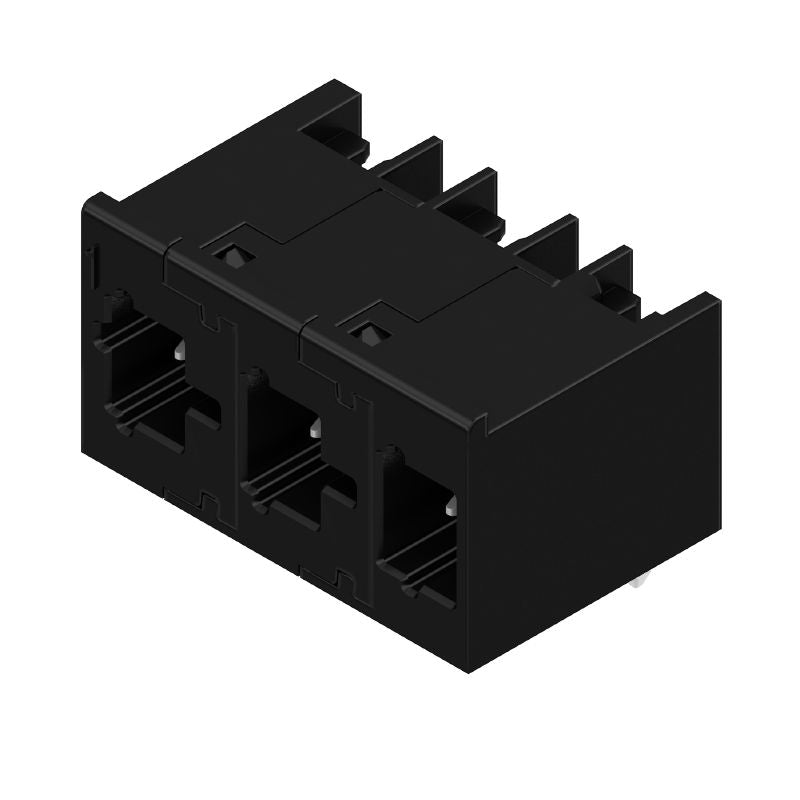

8000078308 - 7.5mm 3-Pole Male Header Connector for THT/THR Applications (Pack of 25)
8000078308 - 7.5mm 3-Pole Male Header Connector for THT/THR Applications (Pack of 25)
SKU: SKU: 8000078308 Download PDF
- 8000078308 - 7.5mm 3-Pole Male Header Connector for THT/THR Applications (Pack of 25)
- 8000078308 - 7.5mm 3-Pole Male Header Connector for THT/THR Applications (Pack of 25)
Couldn't load pickup availability
Description:
Crafted for durability, this male header PCB plug-in connector is tailored for THT/THR solder applications It features a 75 mm pitch and consists of three poles arranged at a 90° angle, conveniently packaged in a tube With the capability to handle voltages up to 1000 V and currents of 304 A in accordance with IEC standards, it also meets UL specifications for up to 300 V and 185 A, making it a reliable choice for various electronic needs.
Features and Benefits:
•Compliant with RoHS without exemptions.
•Rated for high temperatures from -50 °C to 125 °C.
•IP20 protection degree.
•Can withstand a minimum of 25 plugging cycles.
Specifications:

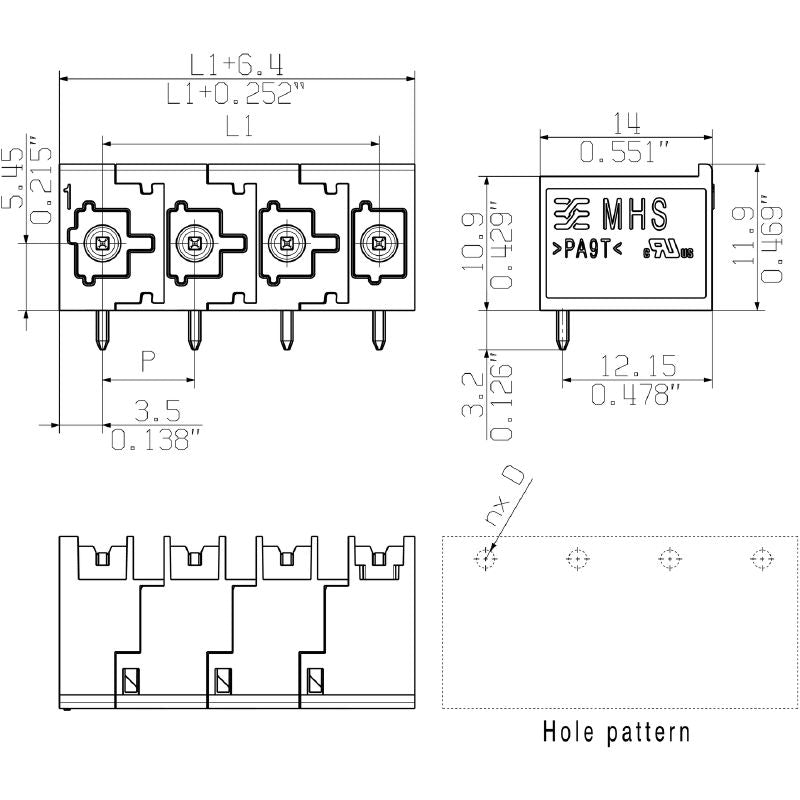

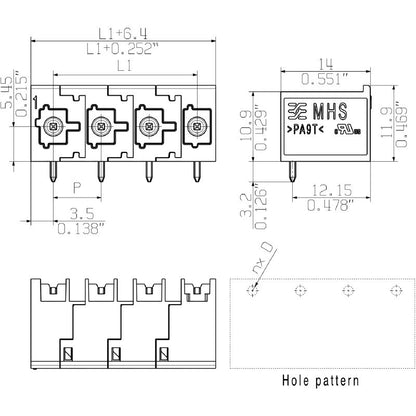

| Depth | 14 mm |
| Height | 15.1 mm |
| Width | 21.4 mm |
| Solder pin length | 3.2 mm |
| Insulating material | PA 9T |
| Moisture Level | 1 |
| UL 94 flammability rating | V-0 |
| Contact base material | CuMg |
| Contact material | Cu-alloy |
| Rated current (Use group B) | 18.5 A |
| Rated voltage (Use group B / UL 1059) | 300 V |
| Rated impulse voltage for surge voltage class / pollution degree II/2 | 4 kV |
| Storage temperature, min. | -25 °C |
| Storage temperature, max. | 55 °C |
