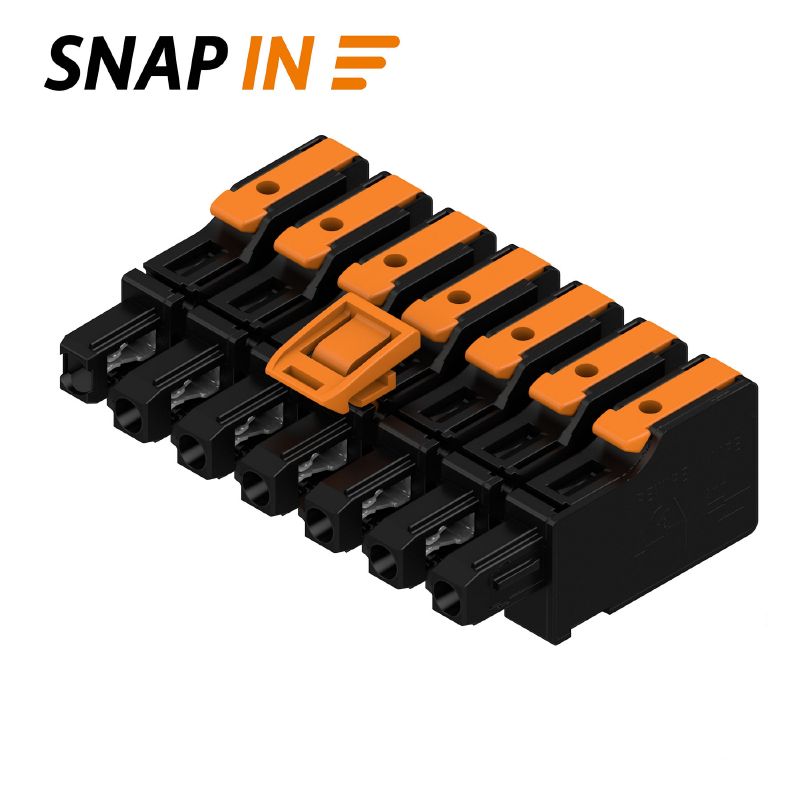

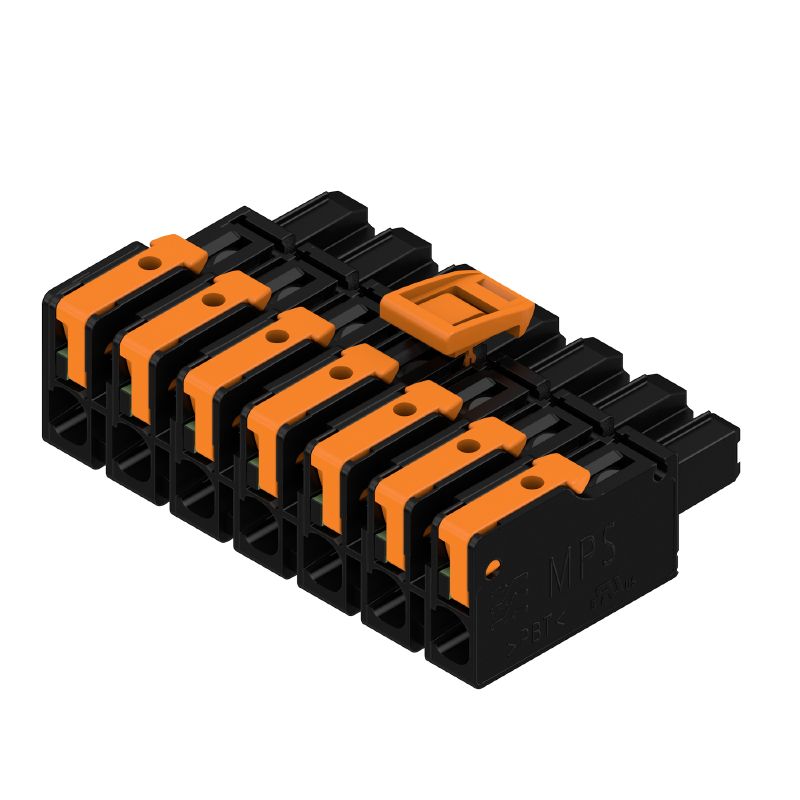

8000078358 - 7-Pole PCB Connector, 7.50mm Pitch, 1000V, 34.6A (Pack of 36)
8000078358 - 7-Pole PCB Connector, 7.50mm Pitch, 1000V, 34.6A (Pack of 36)
SKU: SKU: 8000078358 Download PDF
- 8000078358 - 7-Pole PCB Connector, 7.50mm Pitch, 1000V, 34.6A (Pack of 36)
- 8000078358 - 7-Pole PCB Connector, 7.50mm Pitch, 1000V, 34.6A (Pack of 36)
Couldn't load pickup availability
Description:
Discover the reliability of this PCB plug-in connector, featuring a female connector with a pitch of 750 mm and equipped with seven poles It's engineered to handle a voltage rating of 1000 V and a current capacity of 346 A, accommodating wire connections ranging from 05 to 4 mm² This connector adheres to RoHS and UL regulations, ensuring it meets high safety and quality standards.
Features and Benefits:
•Designed for field connection.
•Utilizes SNAP IN wire connection method.
•Safe from finger touch according to DIN VDE standards.
•RoHS compliant without exemption.
•Can operate in a temperature range from -50 °C to 125 °C.

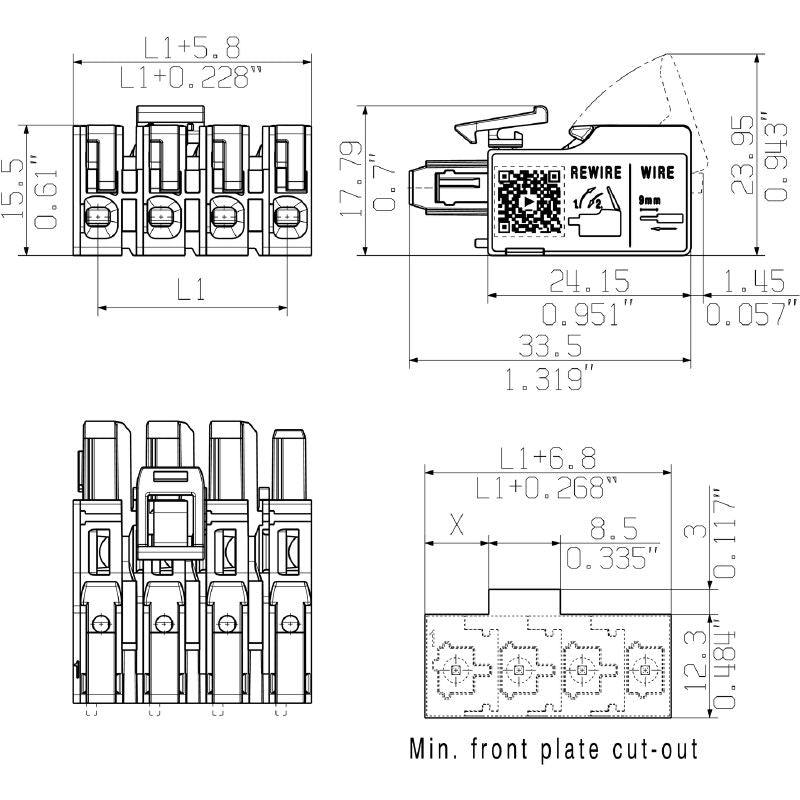

Specifications:
| Pitch in mm (P) | 7.5 mm |
| Number of poles | 7 |
| Depth | 34.95 mm |
| Height | 17.5 mm |
| Width | 50.8 mm |
| Net weight | 22.879 g |
| Ambient temperature | -50 °C…125 °C |
| IP Protection Degree | IP20 |
| Contact material | Cu-alloy |
| Insulating material | PBT GF |
| Color | black |
| Rated voltage (IEC) | 1000 V |

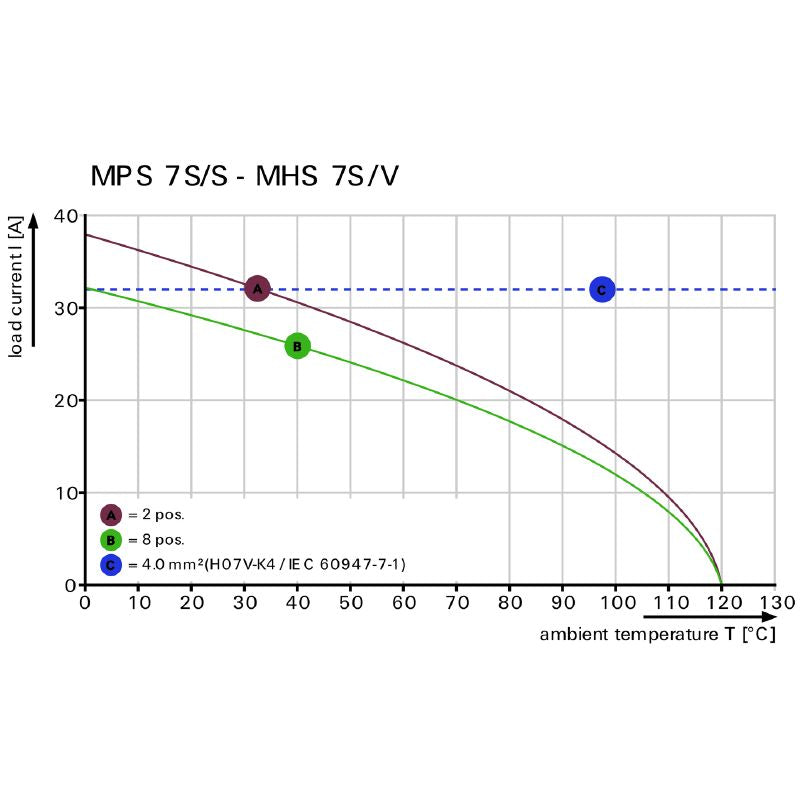

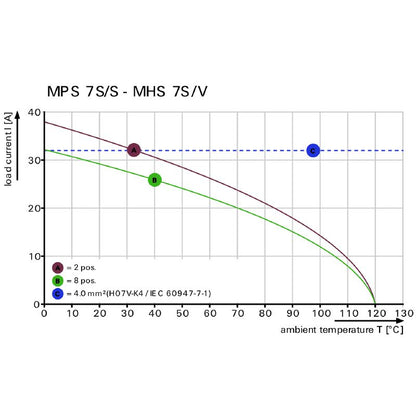

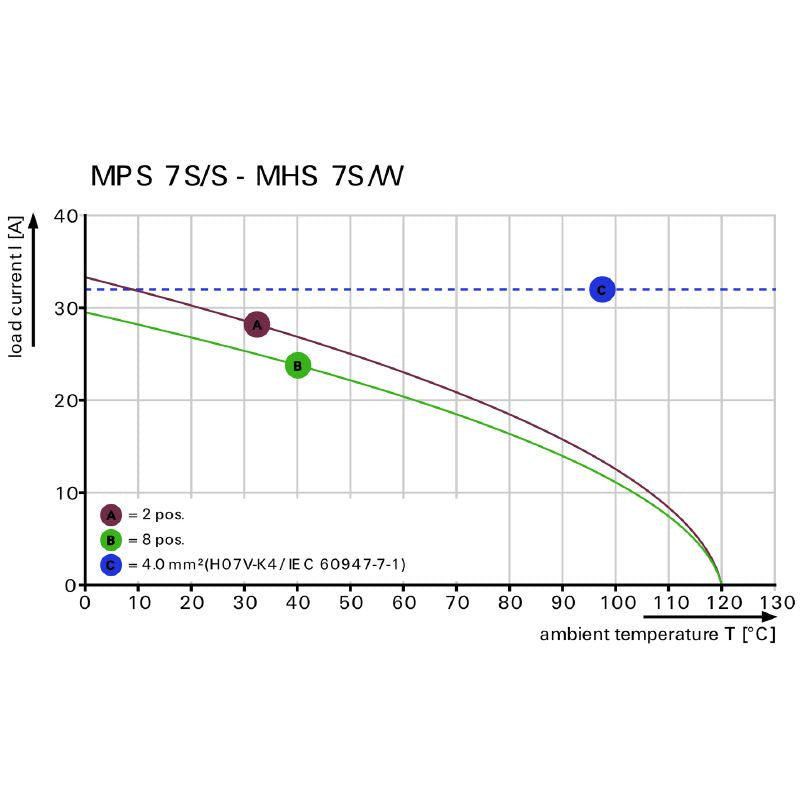

| Rated current (IEC) | 34.6 A |
| Rated current (UL) | 18.5 A |
