8000078330 - 4-Pole 7.50mm RoHS PCB Connector with SNAP IN Lever (Pack of 66)

8000078330 - 4-Pole 7.50mm RoHS PCB Connector with SNAP IN Lever (Pack of 66)

SKU: SKU: 8000078330   Download PDF

Select a Variant:
  • 8000078330 - 4-Pole 7.50mm RoHS PCB Connector with SNAP IN Lever (Pack of 66)
Qty:
Regular price Now $247.86   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $247.86 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

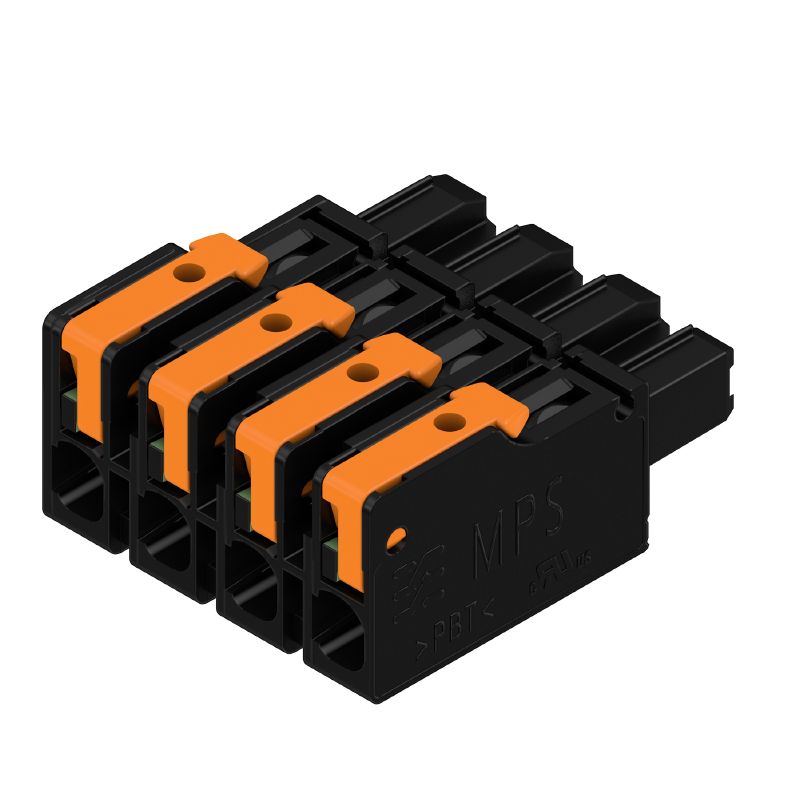

Introducing the MPS 7S/04 S TN B B connector, a reliable female PCB connector designed with a 750 mm pitch and four poles This connector adheres to RoHS standards and features a UL certification (E60693), ensuring high-quality performance It accommodates wire sizes ranging from 05 to 4 mm², corresponding to AWG 20 to AWG 12, which makes it suitable for a diverse range of applications Packaged in boxes of 66 units, this connector is built to operate efficiently in temperatures from -50 °C to a maximum of 125 °C.

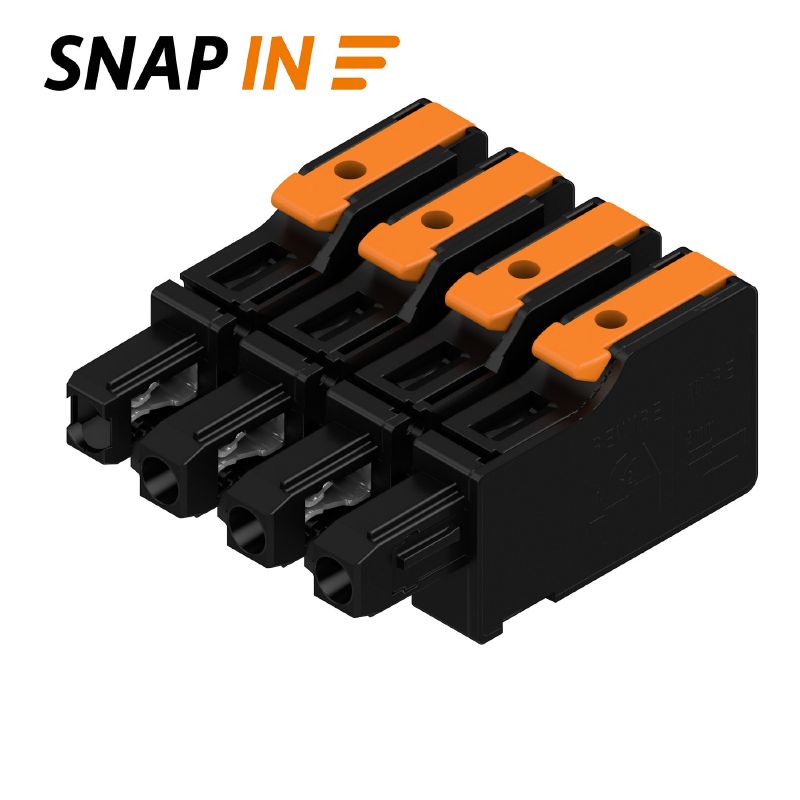

Its SNAP IN connection method with a lever facilitates easy and secure wiring.

Features and Benefits:

    •Rated for up to 1,000 V and 34.6 A according to IEC standards.

    •IP20 protection degree, ensuring safety from finger touch.

    •Touch-safe protection compliant with DIN VDE standards.

    •Easy wire connection with a stripping length tolerance range.

    •Constructed from durable materials like PBT GF and Cu-alloy.

Specifications:

 Depth 34.95 mm
 Height 15.5 mm
 Width 28.3 mm
 Insulating material PBT GF
 Conductor outlet direction 180°
 Number of poles 4
 Stripping length 9 mm

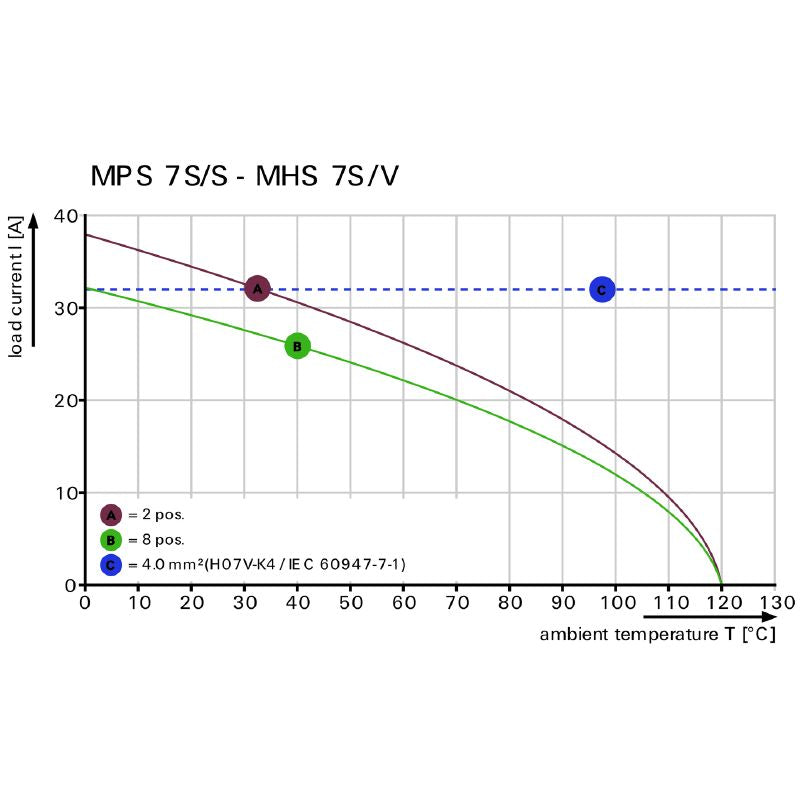

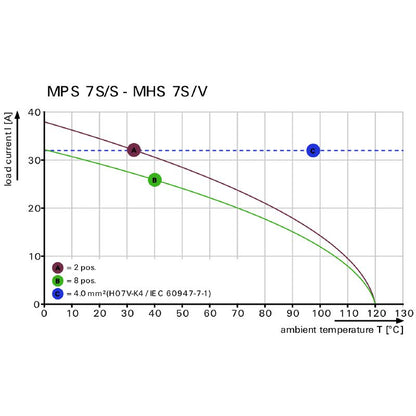

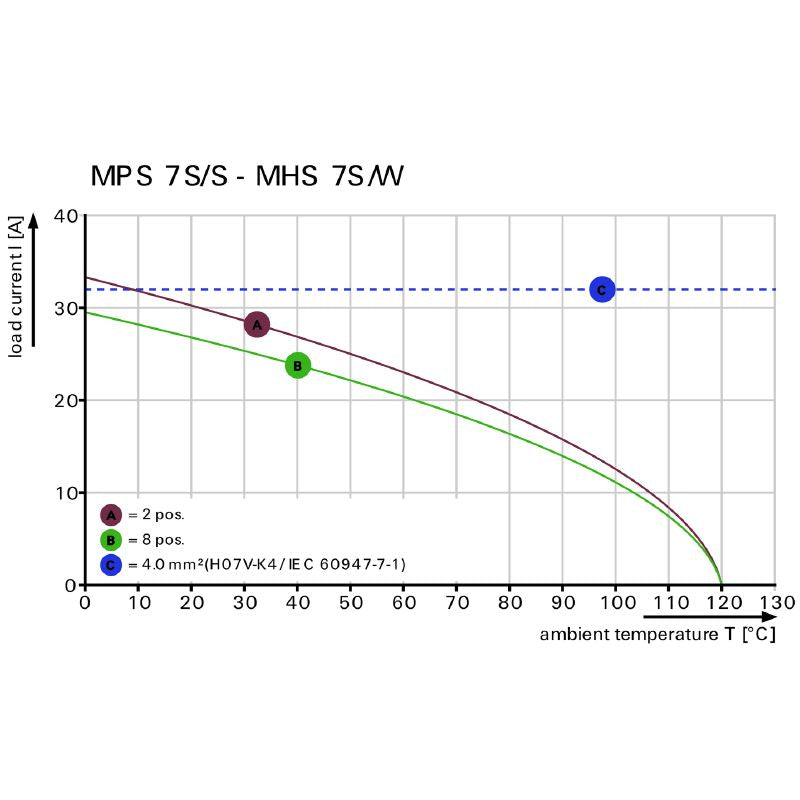

 Rated current, min. number of poles (Tu=20°C) 34.6 A
 Rated current, max. number of poles (Tu=20°C) 29.1 A
 Operating temperature, min. -50 °C
 Operating temperature, max. 125 °C
 Storage temperature, min. -25 °C
 Storage temperature, max. 55 °C
 Plugging cycles 25
