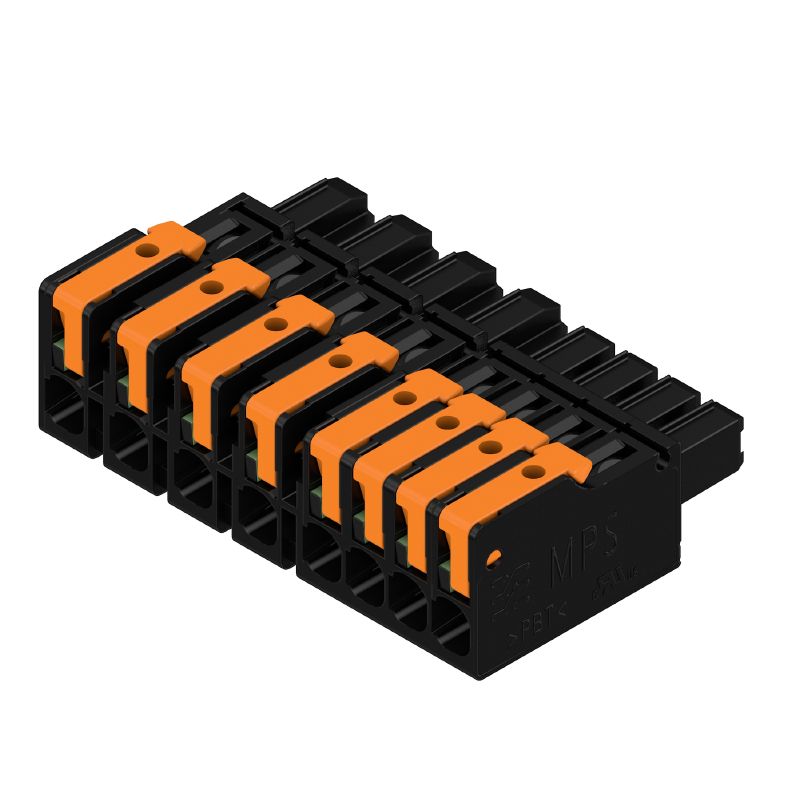

8000078352 - 7.50mm 8-Pole Female Connector, ROHS & UL Certified (Pack of 36)
8000078352 - 7.50mm 8-Pole Female Connector, ROHS & UL Certified (Pack of 36)
SKU: SKU: 8000078352 Download PDF
- 8000078352 - 7.50mm 8-Pole Female Connector, ROHS & UL Certified (Pack of 36)
- 8000078352 - 7.50mm 8-Pole Female Connector, ROHS & UL Certified (Pack of 36)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing this versatile female PCB plug-in connector, specifically engineered with a 750 mm pitch and equipped with 8 poles It meets industry standards with both ROHS and UL certifications, ensuring safety and reliability This connector operates effectively with a voltage rating of up to 1000 V and can manage currents up to 346 A according to IEC specifications when linked with wires ranging from 0.
5 to 4 mm² Weighing in at around 23504 grams, it also boasts finger-safe touch protections for enhanced user safety.
Features and Benefits:
•Compliant with RoHS and UL standards.
•Size allows for a compact design.
•Touch-safe protection as per DIN VDE standards.

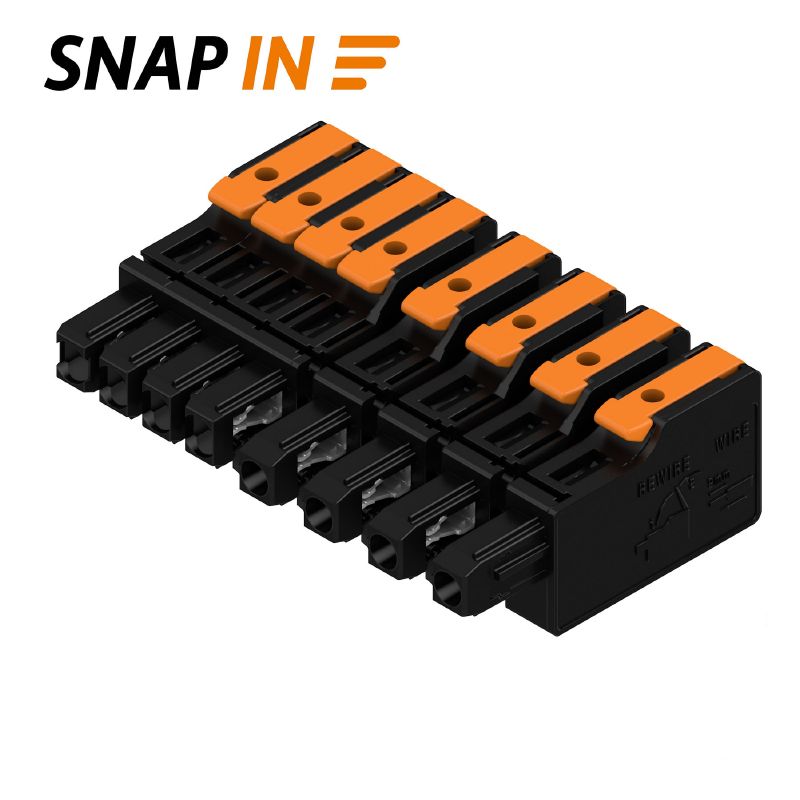

•SNAP IN wire connection method facilitates easy installation.
•Can operate over a wide temperature range of -50 °C to 125 °C.

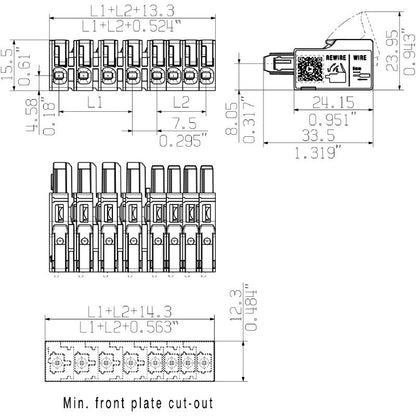

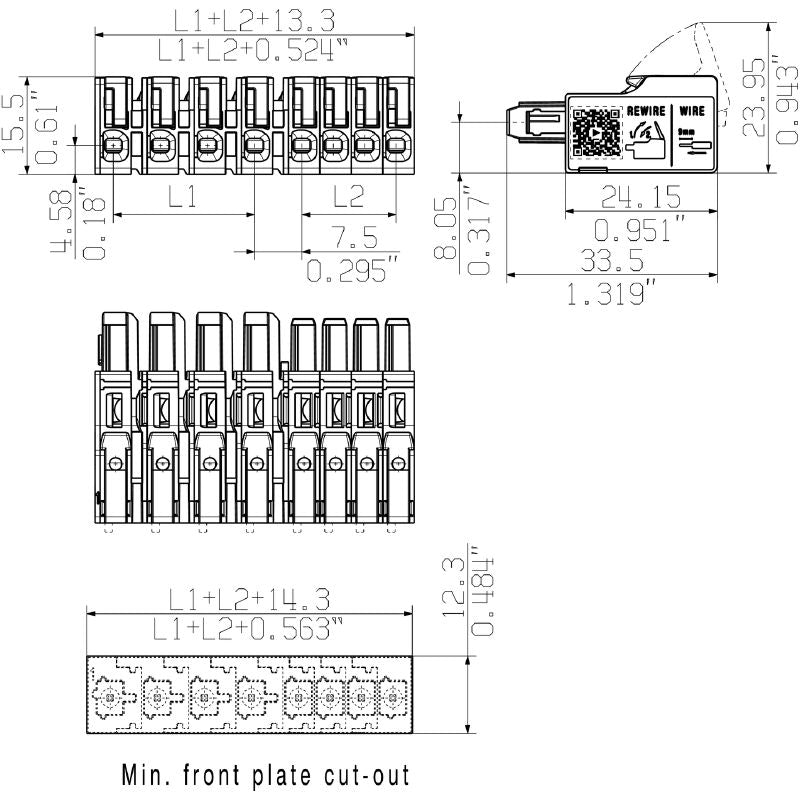

Specifications:
| Depth | 34.95 mm |
| Height | 15.5 mm |
| Rated cross-section | 2.5 mm² |
| Stripping length | 9 mm |
| Conductor outlet direction | 180° |
| Number of rows | 1 |
| Clamping range (min) | 0.34 mm² |
| Clamping range (max) | 4 mm² |
| Operating temperature (min) | -50 °C |
| Operating temperature (max) | 125 °C |
| Rated voltage | 1000 V |
| Rated current (max) | 34.6 A |
| Touch-safe protection | Safe from finger touch |
