8000078344 - 7.50mm Female PCB Connector, 4 Poles, 34.6A Capacity (Pack of 72)
8000078344 - 7.50mm Female PCB Connector, 4 Poles, 34.6A Capacity (Pack of 72)
SKU: SKU: 8000078344 Download PDF
- 8000078344 - 7.50mm Female PCB Connector, 4 Poles, 34.6A Capacity (Pack of 72)
- 8000078344 - 7.50mm Female PCB Connector, 4 Poles, 34.6A Capacity (Pack of 72)
Couldn't load pickup availability
Description:

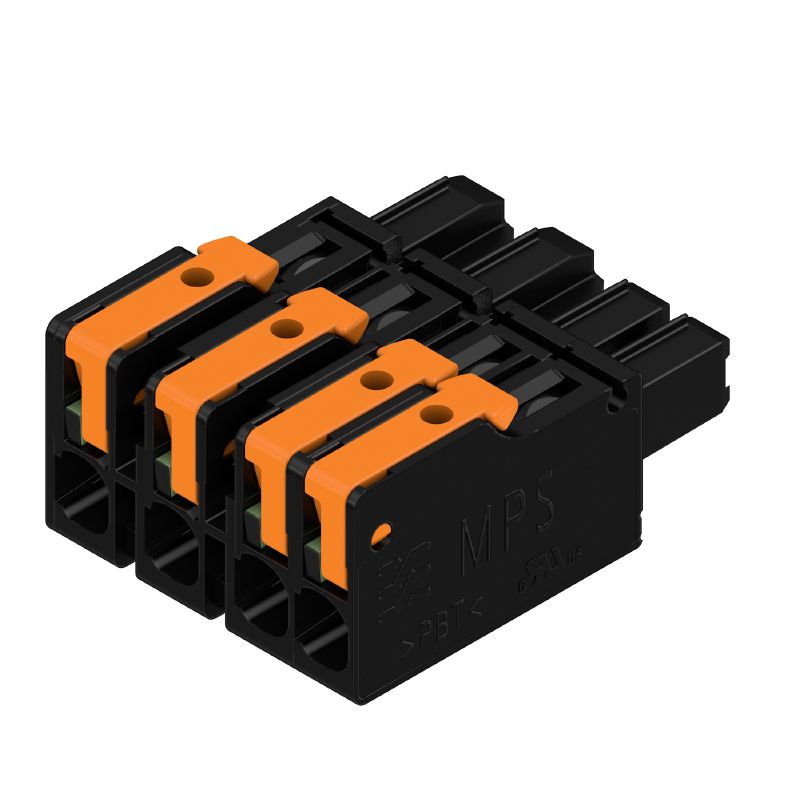

Introducing the MPS 7S/02-5/02 S TN B B, a reliable PCB plug-in connector that features a female plug design with a 750 mm pitch This connector is made with 4 poles and comes securely packaged in a box Complying with IEC standards, it supports high voltage up to 1000 V and can handle a current of 346 A for wire cross-sections between 05 and 4 mm² Additionally, this component meets UL requirements, allowing for a maximum current of 18.
5 A while accommodating AWG sizes from 20 to 12 Built for versatility, it operates effectively in ambient temperatures ranging from -50 °C to 125 °C.
Features and Benefits:
•RoHS compliant without exemptions.
•Safe from finger touch according to DIN VDE.
•Operating temperature range of -50 °C to 125 °C.
•Conductor outlet direction of 180°.
•Utilizes a SNAP IN with lever connection method.
•Has a minimum plugging cycle life of 25 cycles.
Specifications:
| Depth | 34.95 mm |
| Height | 15.5 mm |
| Manufacturing Series | OMNIMATE 4.0 |
| Touch-safe Protection | IP 20 |
| Insulating Material | PBT GF |
| Colour | black |
| Rated Voltage | 1000 V |
| Rated Current (40°C, max.) | 25.9 A |
| Pitch | 7.5 mm |
| Stripping Length | 9 mm |
| Pluggable Contact Material | Cu-alloy |
| Rated Impulse Voltage II/2 | 6 kV |
| Rated Impulse Voltage III/2 | 8 kV |
