Description:

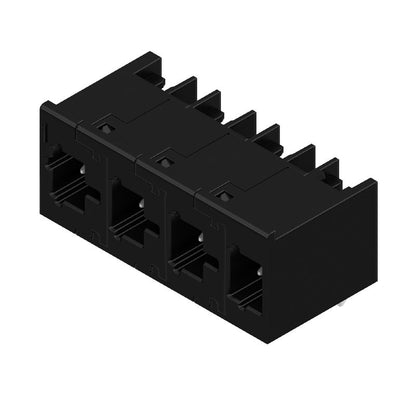

Introducing a male header PCB plug-in connector, ideal for THT/THR soldering applications With a pitch distance of 750 mm, this connector features four poles positioned at a 90° angle, ensuring secure connections It's UL certified (Certificate No E60693) and adheres to RoHS regulations for added safety Packaged in a convenient tube, this product simplifies handling and storage, making it a practical addition to your electronics toolkit.
Features and Benefits:
•Packaged in a tube for convenient handling.
•Compliant with RoHS without exemption.
•Compatible with UL testing standards.
•Mountable onto PCB using THT/THR solder connections.
•Designed with a 90° outgoing elbow.
Specifications:
| IEC Voltage Rating | 1000 V / 30.4 A |
| UL Voltage Rating | 300 V / 18.5 A |

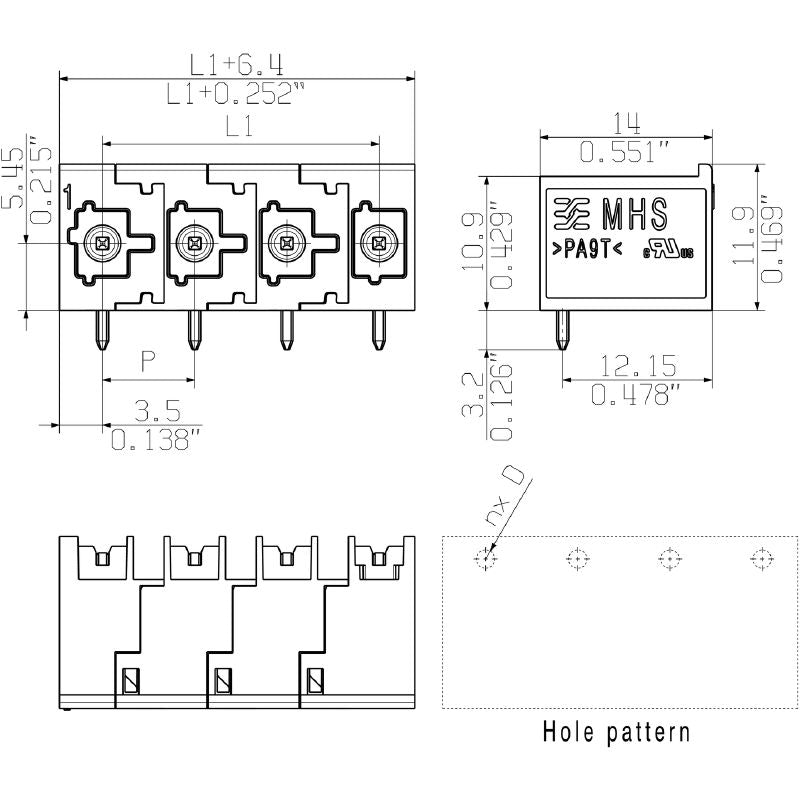

| Dimensions | {'Depth': '14 mm', 'Height': '15.1 mm', 'Width': '28.9 mm'} |
| Ambient Temperature | -50 °C…125 °C |
| Number of Poles | 4 |
| Protection Degree | IP20 |
| Plugging Cycles | ≥ 25 |
| Solder Pin Length | 3.2 mm |
| Contact Material | Cu-alloy |
| Rated Current (Tu=20°C) | 30.4 A |
| Rated Voltage | 1000 V for pollution degree II/2 |
| Flammability Rating | UL 94 V-0 |
| Storage Temperature | -25 °C to 55 °C |
| Moisture Level (MSL) | 1 |
| Comparative Tracking Index (CTI) | ≥ 600 |
