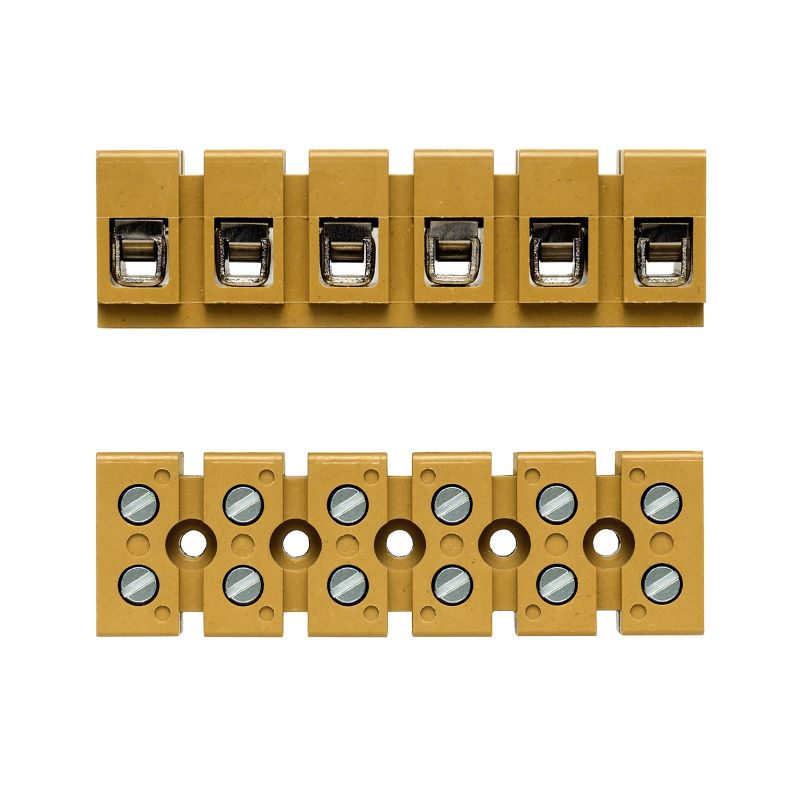

7906260000 - Medium Yellow Terminal Strip, 12 Connections, 6 mm² Capacity (Pack of 20)
7906260000 - Medium Yellow Terminal Strip, 12 Connections, 6 mm² Capacity (Pack of 20)
SKU: SKU: 7906260000 Download PDF
- 7906260000 - Medium Yellow Terminal Strip, 12 Connections, 6 mm² Capacity (Pack of 20)
- 7906260000 - Medium Yellow Terminal Strip, 12 Connections, 6 mm² Capacity (Pack of 20)
Couldn't load pickup availability
Description:
Introducing the MK 6/6/E, a medium yellow terminal strip perfect for both single and multi-pole connections with reliable screw fastening It accommodates wire sizes up to 6 mm² and is capable of handling a nominal current of 41 A at a maximum voltage of 690 V With 12 connection points arranged in a single level, this terminal strip is an excellent choice for efficient electrical installations.
Features and Benefits:
•Medium yellow color.
•Screw connection type.
•Suitable for direct mounting on mounting plates.
•Compliant with RoHS and environmental standards.
Specifications:
| Depth | 22 mm |
| Height | 23 mm |
| Width | 75.5 mm |
| Storage temperature | -25 °C...55 °C |
| Ambient temperature | -5 °C…40 °C |
| Continuous operating temperature (min) | -60 °C |
| Continuous operating temperature (max) | 130 °C |
| Number of poles | 6 |
| Rated cross-section | 6 mm² |
| Rated voltage | 690 V |
| Nominal current | 41 A |
| Volume resistance according to IEC 60947-7-x | 0.78 mΩ |
| Rated impulse withstand voltage | 8 kV |
| Basic material | KrG |
| UL File Number | E60693 |
| Clamping range (max) | 6 mm² |
| Clamping range (min) | 0.33 mm² |
