0274320000 - Medium Yellow Terminal Strip, 14 Connections, 24A Capacity (Pack of 50)
0274320000 - Medium Yellow Terminal Strip, 14 Connections, 24A Capacity (Pack of 50)
SKU: SKU: 0274320000 Download PDF
- 0274320000 - Medium Yellow Terminal Strip, 14 Connections, 24A Capacity (Pack of 50)
- 0274320000 - Medium Yellow Terminal Strip, 14 Connections, 24A Capacity (Pack of 50)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

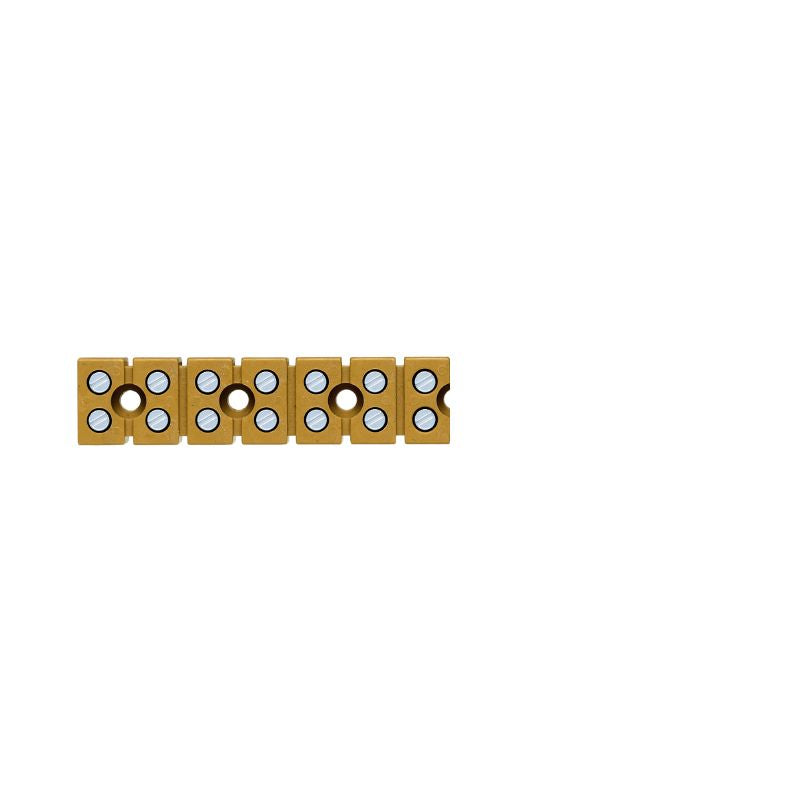

Introducing the MK 3/7 terminal strip, a versatile solution for your electrical connection needs This terminal strip accommodates both single and multi-pole configurations with a reliable screw connection Built for medium yellow applications, it supports wire cross-sections of 25 mm² and can carry currents of up to 24 A and voltages of 400 V With 14 connection points arranged in a single level, it is ideal for a variety of mounting strip setups, ensuring efficient and secure installations.
Features and Benefits:
•Compliant with RoHS regulations without exemptions.
•Mounting plate compatible.
•Direct mounting installation method.
•UL 94 flammability rating of 5VA.
•Suitable for a temperature range from -25 °C to +55 °C.
•Used in electrical installations requiring terminal strips.
Specifications:
| Manufacturer | AIM ELECTRONICS |
| Certificate No. (UR) | E60693 |
| Certificate No. (cURusEX) | E184763 |
| Depth | 16.1 mm |
| Height | 15 mm |
| Width | 63.5 mm |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Rated voltage | 400 V |
| Nominal current | 24 A |
| Number of potentials | 1 |
| Rated cross-section | 2.5 mm² |
| Stripping length | 5 mm |
| Tightening torque, max. | 0.45 Nm |
| Tightening torque, min. | 0.4 Nm |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 22 |
| Clamping range, max. | 4 mm² |
| Clamping range, min. | 0.33 mm² |
