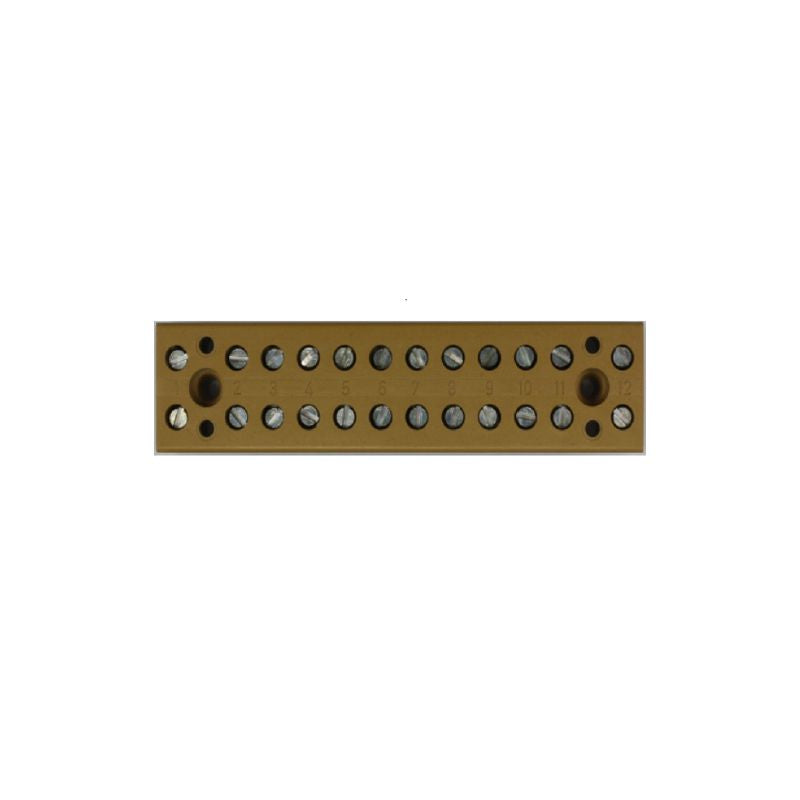

0625320000 - Medium Yellow 24-Port Terminal Strip, 4mm², 32A, Screw Connection (Pack of 25)
0625320000 - Medium Yellow 24-Port Terminal Strip, 4mm², 32A, Screw Connection (Pack of 25)
SKU: SKU: 0625320000 Download PDF
- 0625320000 - Medium Yellow 24-Port Terminal Strip, 4mm², 32A, Screw Connection (Pack of 25)
- 0625320000 - Medium Yellow 24-Port Terminal Strip, 4mm², 32A, Screw Connection (Pack of 25)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Enhance your electrical connections with this versatile terminal strip, designed for both single and multi-pole setups Featuring a striking medium yellow color, it supports wire sizes of up to 4 mm² and can handle a maximum current of 32 A at 400 V With 24 connection points available and a compact single-level design, this terminal strip is engineered for efficiency and reliability in your wiring projects.
Features and Benefits:
•Utilizes direct mounting for installation.
•Compliant with RoHS regulations.
•No additional cover plate is required.
•Suitable for mounting on plates.
•Designed for clamping conductors with both rated and additional connections.
Specifications:
| Dimensions | {'Depth': '20 mm', 'Height': '22 mm', 'Width': '92 mm'} |
| Operating Temperature | {'Storage Temperature': '-25 °C to 55 °C', 'Ambient Temperature': '-5 °C to 40 °C', 'Continuous Operating Temperature': {'Min': '-60 °C', 'Max': '130 °C'}} |
| Material | {'Basic Material': 'KrG', 'Color': 'medium yellow', 'UL 94 Flammability Rating': 'V-0'} |
| Electrical Ratings | {'Rated Voltage': '400 V', 'Nominal Current': '32 A', 'Rated DC Voltage': '400 V', 'Volume Resistance': '1 mΩ', 'Rated Impulse Withstand Voltage': '6 kV'} |
| Connection Details | {'Number of Connections': '24', 'Clamping Range': {'Max': '4 mm²', 'Min': '0.33 mm²'}, 'Wire Connection Cross Section': {'Max': '4 mm²', 'Min': '0.5 mm²', 'AWG Size': {'Max': '12', 'Min': '22'}}, 'Tightening Torque': {'Max': '0.6 Nm', 'Min': '0.5 Nm'}} |
| Certifications | {'UL File Number': 'E60693', 'CSA Certificate': '200039-2165696'} |
| Standards | IEC 60947-7-1 |
