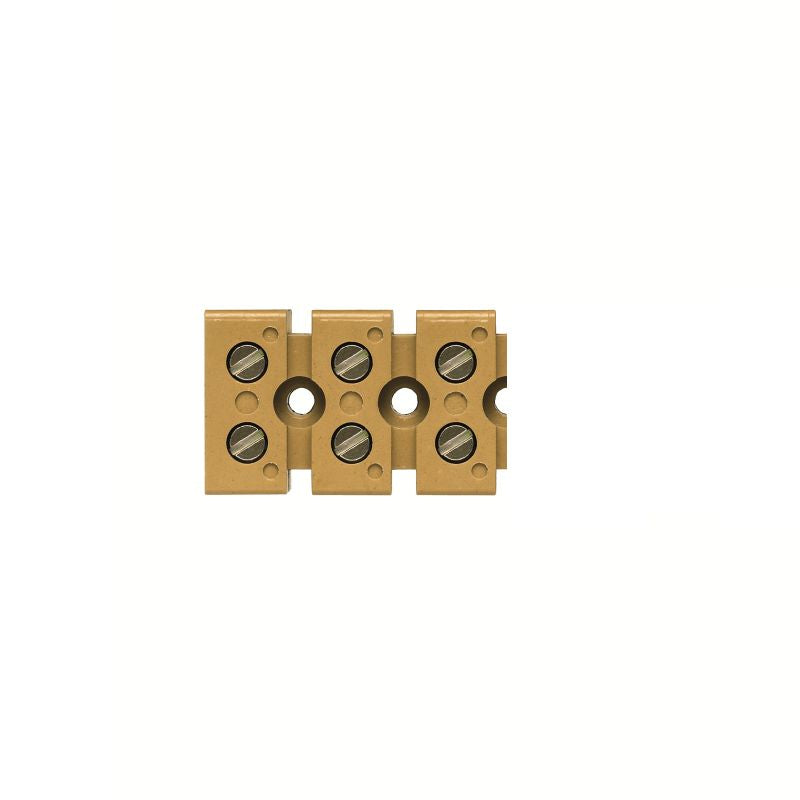

0620320000 - 6mm² Yellow Terminal Strip, 41A Max Current, 6 Connections (Pack of 50)

0620320000 - 6mm² Yellow Terminal Strip, 41A Max Current, 6 Connections (Pack of 50)

SKU: SKU: 0620320000   Download PDF

Select a Variant:
  • 0620320000 - 6mm² Yellow Terminal Strip, 41A Max Current, 6 Connections (Pack of 50)
Qty:
Regular price Now $484.29   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $484.29 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the MK 6/3 terminal strip, a versatile solution for your electrical needs This terminal strip, available in a vibrant medium yellow, offers both single and multi-pole options with secure screw connections It accommodates up to six connections, stands at a rated capacity of 6 mm², and is designed to handle a maximum current of 41 A along with a voltage rating of 690 V With its one-level configuration, this terminal strip is ideal for a variety of applications.

Features and Benefits:

    •Compliant with RoHS without exemption.

    •Direct mounting capability.

    •Mounting plate included.

    •Can accommodate wire sizes from AWG 22 to 10.

    •Designed for a high operating temperature range from -60 °C to 130 °C.

Specifications:

 Depth 22 mm
 Height 23 mm
 Width 36.5 mm
 Rated voltage 690 V
 Rated current 41 A
 Rated cross-section 6 mm²
 Clamping range, max 6 mm²
 Clamping range, min 0.33 mm²
 Number of connections 6
 Number of levels 1
 UL file number (UR) E60693
 UL file number (cURusEX) E184763
 Stripping length 9 mm
 Tightening torque, max 2 Nm
 Tightening torque, min 1.2 Nm
 Volume resistance according to IEC 60947-7-x 0.78 mΩ
