7906100000 - Medium Yellow 32A Terminal Strip for 24 Connections (Pack of 25)
7906100000 - Medium Yellow 32A Terminal Strip for 24 Connections (Pack of 25)
SKU: SKU: 7906100000 Download PDF
- 7906100000 - Medium Yellow 32A Terminal Strip for 24 Connections (Pack of 25)
- 7906100000 - Medium Yellow 32A Terminal Strip for 24 Connections (Pack of 25)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

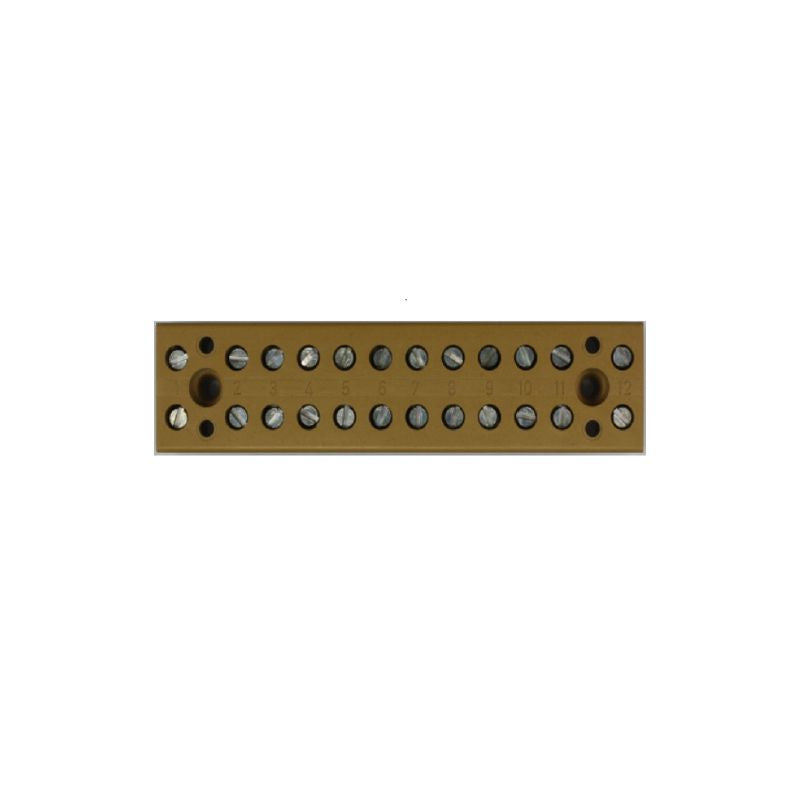

Introducing the BK 12/E terminal strip, specially crafted for both single and multi-pole connections This medium yellow strip boasts a secure screw connection and accommodates wires with a maximum cross-section of 4 mm² With a current rating of 32 A and a voltage capacity of 400 V, it offers a robust solution for your electrical needs Designed for one level of connections, this terminal strip features a total of 24 connections, making it a practical choice for various applications.
Features and Benefits:
•Medium yellow color.
•Screw connection type.
•24 connections.
•Compact design suitable for mounting plates.
Specifications:
| Depth | 20 mm |
| Height | 22 mm |
| Width | 92 mm |
| Storage temperature | -25 °C...55 °C |
| Ambient temperature | -5 °C…40 °C |
| Continuous operating temperature, min. | -60 °C |
| Continuous operating temperature, max. | 130 °C |
| Rated cross-section | 4 mm² |
| Rated voltage | 400 V |
| Nominal current | 32 A |
| Volume resistance according to IEC 60947-7-x | 1 mΩ |
| Rated impulse withstand voltage | 6 kV |
| Power loss in accordance with IEC 60947-7-x | 1.02 W |
| Standards | IEC 60947-7-1 |
