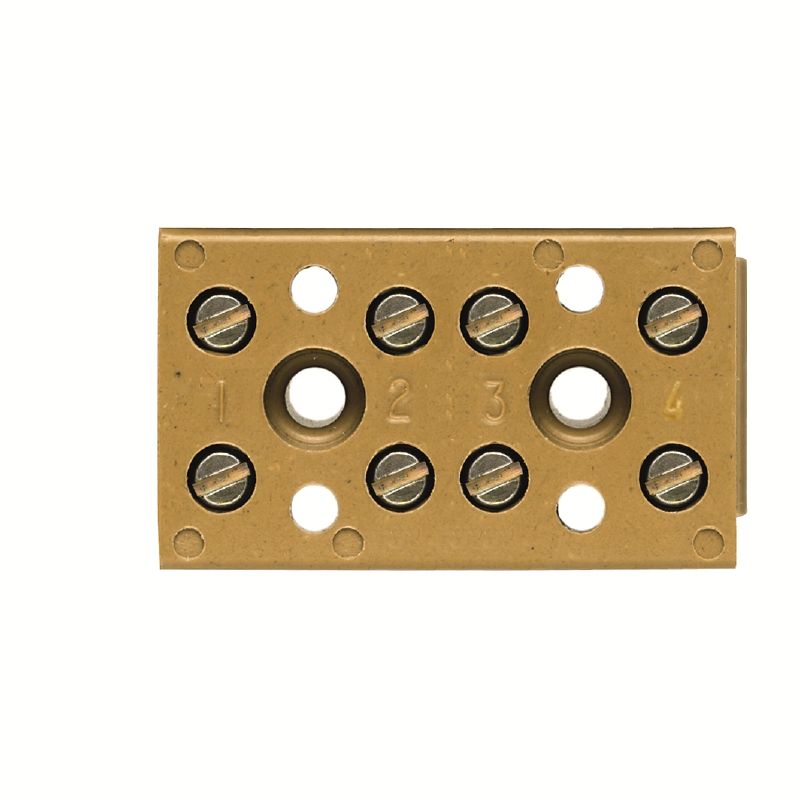

0625120000 - BK 4 CRN 32A Terminal Strip, 8 Connections, Yellow (Pack of 100)
0625120000 - BK 4 CRN 32A Terminal Strip, 8 Connections, Yellow (Pack of 100)
SKU: SKU: 0625120000 Download PDF
- 0625120000 - BK 4 CRN 32A Terminal Strip, 8 Connections, Yellow (Pack of 100)
- 0625120000 - BK 4 CRN 32A Terminal Strip, 8 Connections, Yellow (Pack of 100)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the BK 4 CRN terminal strip, expertly crafted for both single and multi-pole applications, featuring robust screw connections This medium yellow strip accommodates up to 32 A and 400 V, providing reliable performance With eight connections arranged on a single level, it ensures efficient connectivity for your electrical projects.
Features and Benefits:
•Screw connection.
•Medium yellow color.
•Designed for direct mounting.
•RoHS compliant without exemption.
Specifications:
| Depth | 20 mm |
| Height | 22 mm |
| Width | 38 mm |
| Storage temperature | -25 °C...55 °C |
| Ambient temperature | -5 °C…40 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Basic material | KrG |
| UL 94 flammability rating | V-0 |
| Rated cross-section | 4 mm² |
| Rated voltage | 400 V |
| Nominal current | 32 A |
| Number of connections | 8 |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 22 |
