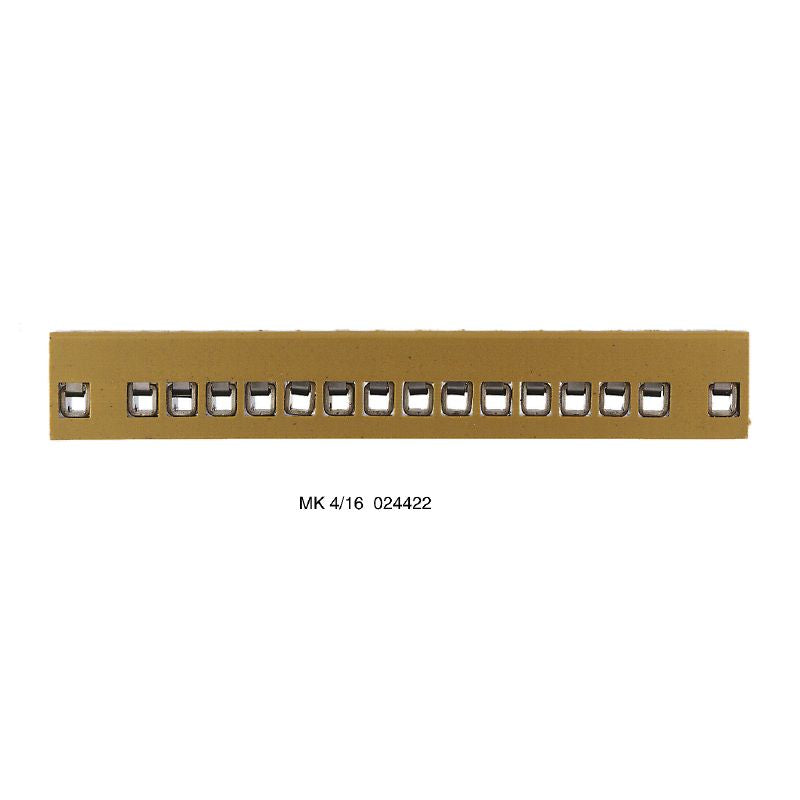

0244220000 - Yellow 2.5mm² Terminal Strip, 24A, 32 Connections (Pack of 20)
0244220000 - Yellow 2.5mm² Terminal Strip, 24A, 32 Connections (Pack of 20)
SKU: SKU: 0244220000 Download PDF
- 0244220000 - Yellow 2.5mm² Terminal Strip, 24A, 32 Connections (Pack of 20)
- 0244220000 - Yellow 2.5mm² Terminal Strip, 24A, 32 Connections (Pack of 20)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the MK 4/16 terminal strip, an essential component for secure screw connections This medium yellow strip accommodates both single and multi-pole configurations and features a rated cross-section of 25 mm² It can handle an impressive current of up to 24 A and support voltages as high as 400 V With 32 connections arranged over a single level, it's designed for efficiency and reliability in various electrical applications.
Features and Benefits:
•Screw connection method.
•Medium yellow color.
•Direct mounting installation.
•Compliant with RoHS without exemption.
•UL 94 flammability rating of 5VA.
Specifications:
| Depth | 17 mm |
| Height | 16 mm |
| Width | 103 mm |
| Storage temperature | -25 °C...55 °C |
| Ambient temperature | -5 °C…40 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| UL file number | E60693 |
| Current size B (CSA) | 15 A |
| Current size C (CSA) | 15 A |
| Voltage size B (CSA) | 150 V |
| Rated voltage | 400 V |
| Rated DC voltage | 400 V |
| Nominal current | 24 A |
| Rated impulse withstand voltage | 6 kV |
| Number of poles | 16 |
| Number of connections | 32 |
| Connection direction | on side |
| Clamping range, max. | 4 mm² |
| Clamping range, min. | 0.2 mm² |
| Rated cross-section | 2.5 mm² |
| Fixing dimension | 85.5 mm |
