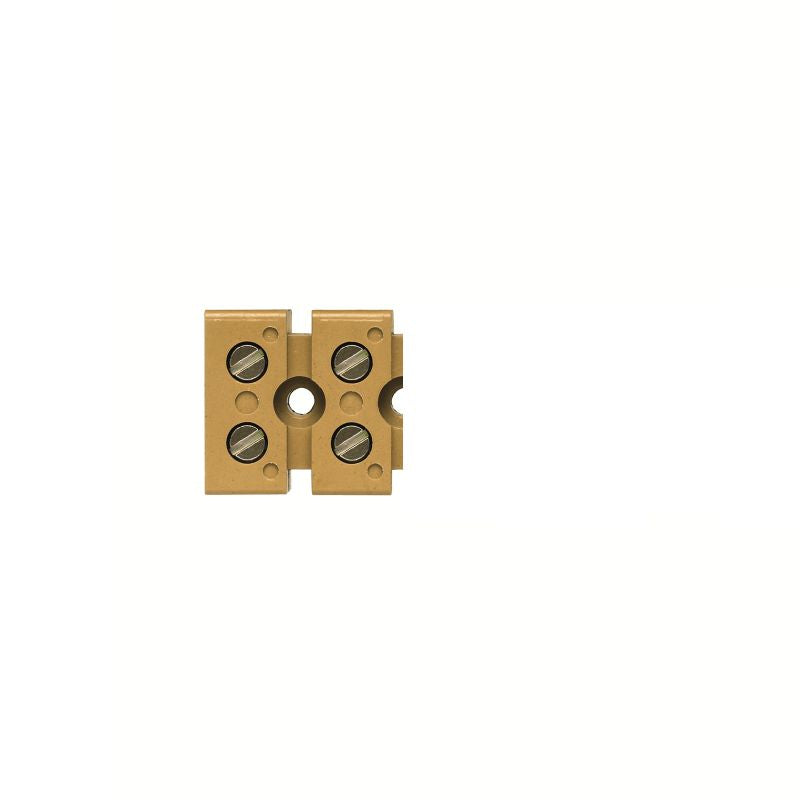

0620420000 - Yellow Terminal Strip 6mm² with 4 Screw Connections (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the MK 6/2 terminal strip, a versatile solution for both single and multi-pole applications, designed for secure screw connections This component boasts a distinctive medium yellow hue and supports a cross-sectional area of 6 mm², ensuring excellent performance with a current rating of 41 A at a maximum voltage of 690 V With four connection points and a single-level structure, it simplifies wiring needs while maintaining reliability and efficiency.

Features and Benefits:

•Approvals: ROHS compliant, UL certifications E60693 and E184763.

•Dimensions: 22 mm depth, 23 mm height, 23.5 mm width.

•Net weight: 20.7 g.

•Operating temperature range from -60 °C to 130 °C.

•Suitable for direct mounting on mounting plates.

•Number of poles: 2.

•Installation advice emphasizes direct mounting.

Specifications:
