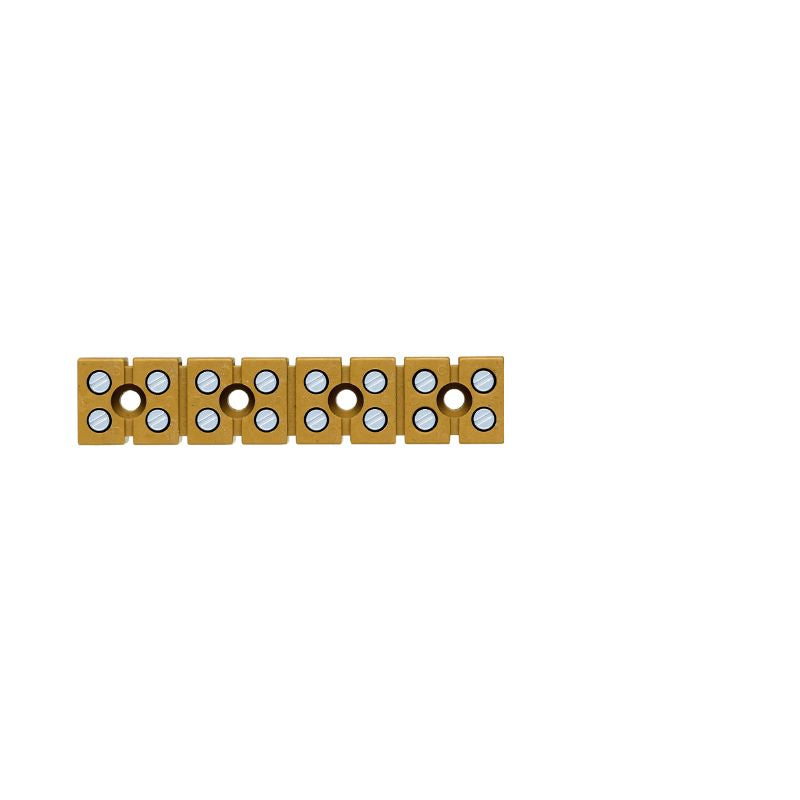

0274420000 - 16 Connection Yellow Terminal Strip, 24A, 400V (Pack of 25)
0274420000 - 16 Connection Yellow Terminal Strip, 24A, 400V (Pack of 25)
SKU: SKU: 0274420000 Download PDF
- 0274420000 - 16 Connection Yellow Terminal Strip, 24A, 400V (Pack of 25)
- 0274420000 - 16 Connection Yellow Terminal Strip, 24A, 400V (Pack of 25)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
The MK 3/8 terminal strip stands out as a versatile solution for both single and multi-pole connections, equipped with reliable screw terminals Dressed in a medium yellow hue, this terminal strip accommodates wire cross-sections of up to 25 mm², supports a current rating of 24 A, and is designed to operate safely at 400 V With its straightforward single-level configuration, this unit offers 16 connection points for efficient wiring setups.
Features and Benefits:
•RoHS compliant without exemption..
•No end cover plate is required..
•Direct mounting is possible..
Specifications:
| Depth | 16.1 mm |
| Height | 15 mm |
| Width | 72.75 mm |
| Rated voltage | 400 V |
| Rated current | 24 A |
| Storage temperature | -25 °C to 55 °C |
| Ambient temperature | -5 °C to 40 °C |
| Clamping range (max) | 4 mm² |
| Clamping range (min) | 0.33 mm² |
| Connection cross-section (max) | 2.5 mm² |
| Connection cross-section (min) | 1.5 mm² |
| Wire connection size (max) | 12 AWG |
| Wire connection size (min) | 22 AWG |
| Volume resistance | 1.33 mΩ |
| Rated impulse withstand voltage | 6 kV |
