7906240000 - 6mm² Terminal Strip, 41A, 8 Connections (Pack of 20)
7906240000 - 6mm² Terminal Strip, 41A, 8 Connections (Pack of 20)
SKU: SKU: 7906240000 Download PDF
- 7906240000 - 6mm² Terminal Strip, 41A, 8 Connections (Pack of 20)
- 7906240000 - 6mm² Terminal Strip, 41A, 8 Connections (Pack of 20)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

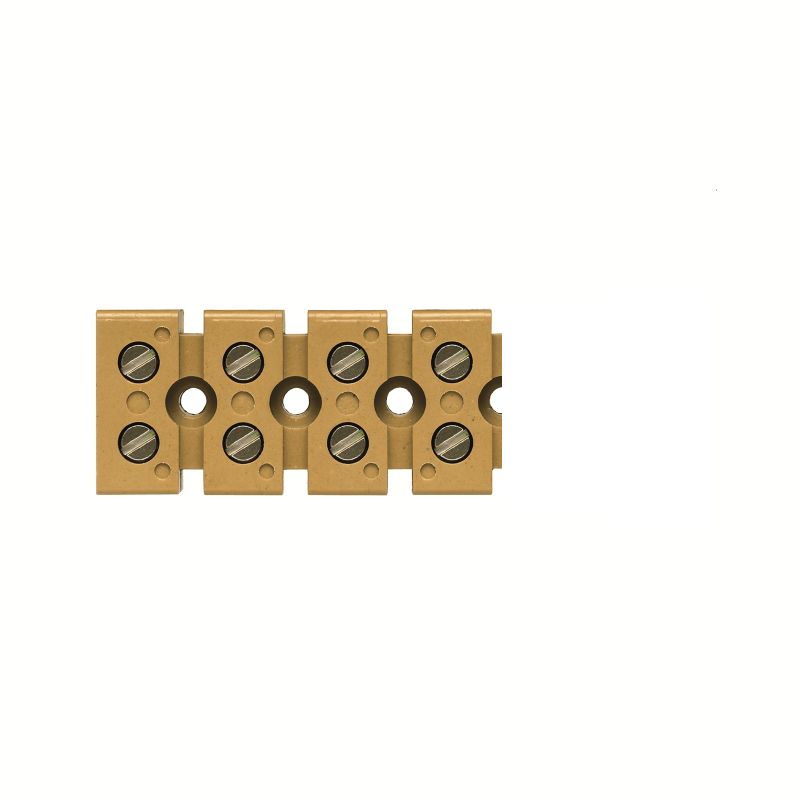

Introducing the MK 6/4/E terminal strip, a versatile solution for your electrical needs This sturdy strip features both single and multi-pole connections with a reliable screw mechanism Engineered for medium-duty electrical applications, it supports a wire cross-section of 6 mm² and can handle currents up to 41 A with a voltage rating of 690 V Equipped with 8 connection points, it operates on a single level design for streamlined installation and use.
Perfect for enhancing your electrical setups with efficiency and reliability.
Features and Benefits:
•Medium yellow color.
•UL 94 flammability rating of 5VA.
•Direct mounting installation.
•Compliant with RoHS.
•Constructed from KrG material.
Specifications:
| Depth | 22 mm |
| Height | 23 mm |
| Width | 49.5 mm |
| Net weight | 38.236 g |
| Storage temperature | -25 °C...55 °C |
| Ambient temperature | -5 °C…40 °C |
| Continuous operating temp. (min) | -60 °C |
| Continuous operating temp. (max) | 130 °C |
| Rated voltage | 690 V |
| Rated DC voltage | 690 V |
| Nominal current | 41 A |
| Number of connections | 8 |
| Rated cross-section | 6 mm² |
| Vol. resistance | 0.78 mΩ |
| Rated impulse withstand voltage | 8 kV |
| Power loss | 1.31 W |
| Pollution severity | 3 |
