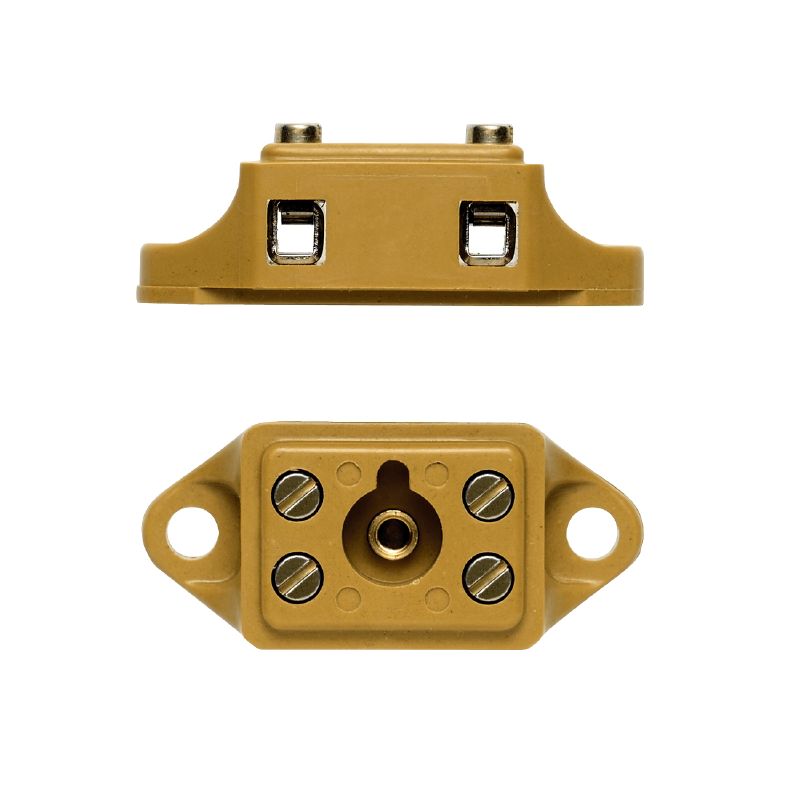

0243820000 - Yellow 4-Point Terminal Strip, 24A, 2.5mm² Connection (Pack of 100)
0243820000 - Yellow 4-Point Terminal Strip, 24A, 2.5mm² Connection (Pack of 100)
SKU: SKU: 0243820000 Download PDF
- 0243820000 - Yellow 4-Point Terminal Strip, 24A, 2.5mm² Connection (Pack of 100)
- 0243820000 - Yellow 4-Point Terminal Strip, 24A, 2.5mm² Connection (Pack of 100)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Optimize your electrical connections with this versatile terminal strip, which accommodates both single and multi-pole configurations It features a vibrant medium yellow design and is compatible with wire sizes of 25 mm² This strip boasts a robust maximum current of 24 A and can handle voltages up to 500 V With 4 connection points and a streamlined single-level structure, this terminal strip is engineered for efficiency and reliability in various applications.
Features and Benefits:
•Medium yellow color.
•Suitable for both single and multi-pole configurations.
•Screw connection ensures secure wiring.
Specifications:
| Depth | 18 mm |
| Height | 14.2 mm |
| Width | 40 mm |
| Storage temperature | -25 °C to 55 °C |
| Ambient temperature | -5 °C to 40 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Number of connections | 4 |
| Rated voltage | 500 V |
| Rated current | 24 A |
| Clamping range, max. | 4 mm² |
| Clamping range, min. | 0.2 mm² |
| Rated cross-section | 2.5 mm² |
| Wire connection cross section, max. (solid core) | 4 mm² |
| Wire connection cross section, min. (solid core) | 0.5 mm² |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Rated impulse withstand voltage | 6 kV |
| Power loss according to IEC 60947-7-x | 0.77 W |
| Pollution severity | 3 |
