7906080000 - 4mm² BK Terminal Strip, 32A, 400V, Yellow (Pack of 100)
7906080000 - 4mm² BK Terminal Strip, 32A, 400V, Yellow (Pack of 100)
SKU: SKU: 7906080000 Download PDF
- 7906080000 - 4mm² BK Terminal Strip, 32A, 400V, Yellow (Pack of 100)
- 7906080000 - 4mm² BK Terminal Strip, 32A, 400V, Yellow (Pack of 100)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

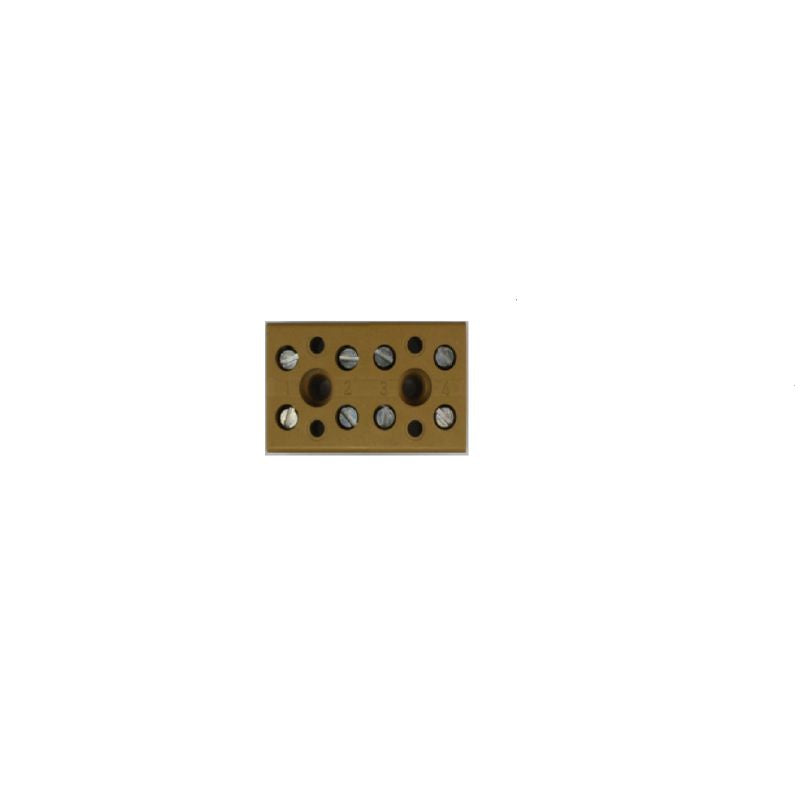

Introducing the BK 4/E terminal strip, designed for versatility in both single and multi-pole applications with reliable screw connections This terminal strip boasts a bright medium yellow hue, supporting a maximum voltage of 400V and capable of handling up to 32A With the ability to accommodate 8 connections, it is structured in a single level to maximize efficiency Compact in size, it measures 20 mm in depth, 22 mm in height, and 38 mm in width, weighing just 27.
3 grams Compliant with RoHS standards and crafted from durable KrG material, this terminal strip is ideal for a variety of electrical connections.
Features and Benefits:
•Medium yellow color.
•Direct mounting design.
•Screw connection type.
•Compliant with RoHS standards.
Specifications:
| Number of connections | 8 |
| Number of levels | 1 |
| Rated cross-section | 4 mm² |
| Rated voltage | 400 V |
| Nominal current | 32 A |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 22 |
| Installation advice | Direct mounting |
| UL certificate number | E60693 |
| IEC standard | IEC 60947-7-1 |
