Description:

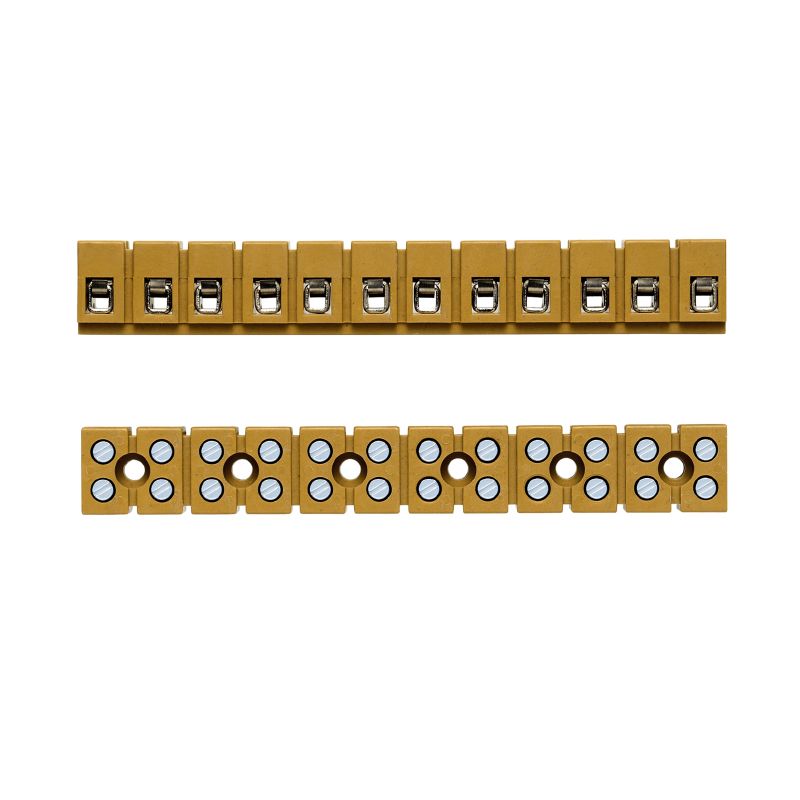

Introducing the MK 3/12/E terminal strip, engineered for versatility with its screw connections suitable for both single and multi-pole uses This terminal strip measures 110 mm in width and 161 mm in height, supporting a voltage range of up to 400 V and accommodating a maximum current of 24 A With a total of 24 connection points arranged in a single level, it is constructed from durable KrG material and comes in a distinctive medium yellow color.
It meets RoHS standards and operates effectively in ambient temperatures from -5 °C to 40 °C, while also tolerating storage conditions between -25 °C and 55 °C.
Features and Benefits:
•Constructed with a reliable screw connection design.
•Only requires direct mounting for installation.
•Compatible with various conductor types, including both stranded and solid core.
Specifications:
| Depth | 16.1 mm |
| Height | 16.1 mm |
| Width | 110 mm |
| Rated voltage | 400 V |
| Rated current | 24 A |
| Storage temperature | -25 °C...55 °C |
| Ambient temperature | -5 °C…40 °C |
| Clamping range, max. | 4 mm² |
| Clamping range, min. | 0.33 mm² |
| UL voltage rating | 300 V |
| Conductor size max. (UR) | 12 AWG |
| Conductor size min. (UR) | 22 AWG |
| Number of connections | 24 |
| Voltage rating (IECEX) | 275 V |
| Current rating (IECEX) | 24 A |
| Wire cross section max. (IECEX) | 4 mm² |
