7906040000 - 4-Connection Yellow Terminal Strip, 32A, 4mm², UL Certified (Pack of 100)
7906040000 - 4-Connection Yellow Terminal Strip, 32A, 4mm², UL Certified (Pack of 100)
SKU: SKU: 7906040000 Download PDF
- 7906040000 - 4-Connection Yellow Terminal Strip, 32A, 4mm², UL Certified (Pack of 100)
- 7906040000 - 4-Connection Yellow Terminal Strip, 32A, 4mm², UL Certified (Pack of 100)
Couldn't load pickup availability
Description:

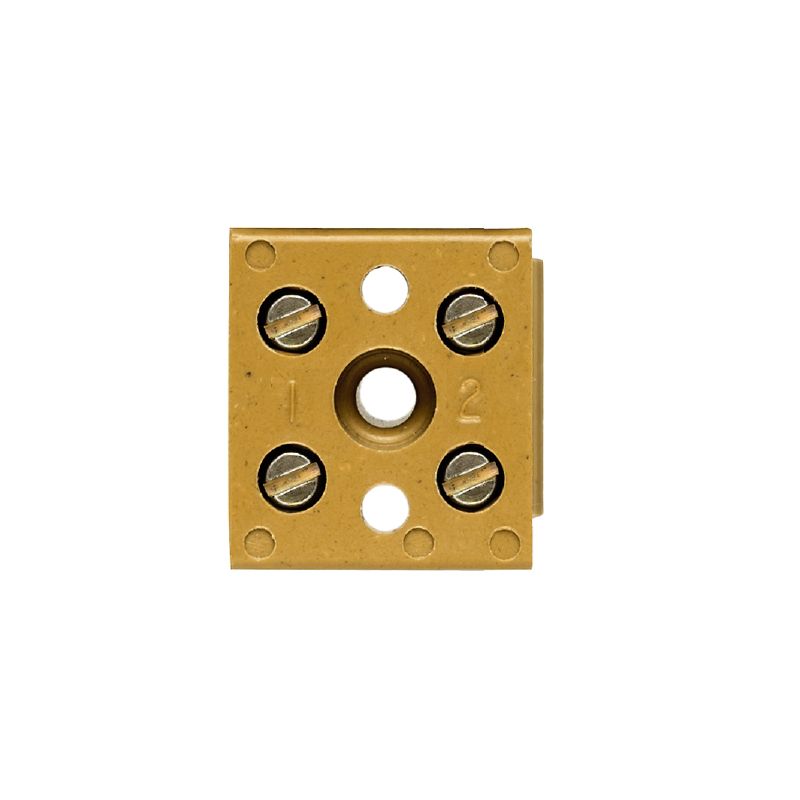

Introducing the BK 2/E terminal strip, an efficient solution for electrical connections, available in a vibrant medium yellow color This versatile strip accommodates both single and multi-pole configurations and features a secure screw connection It supports wire sizes up to 4 mm², with a current rating of 32 A and a voltage capacity of 400 V Designed for easy installation on mounting rails, this terminal strip consists of 4 connection points and adheres to RoHS standards, without the need for an end cover plate.
Additionally, it holds UL certification number E60693, confirming its quality and safety, while ensuring no SVHC substances are present above regulated limits.
Features and Benefits:
•Screw connection design.
•Compatible with standard mounting plates.
•Compliant with RoHS.
•Medium yellow color.
Specifications:
| Depth | 20 mm |
| Height | 22 mm |
| Width | 20 mm |
| Net weight | 14.64 g |
| Rated voltage | 400 V |
| Rated current | 32 A |
| Wire cross section max | 4 mm² |
| Wire cross section min | 0.33 mm² |
| Continuous operating temperature min | -60 °C |
| Continuous operating temperature max | 130 °C |
| Ambient temperature | -5 °C…40 °C |
| Storage temperature | -25 °C...55 °C |
| Tightening torque max | 0.6 Nm |
| Tightening torque min | 0.5 Nm |
