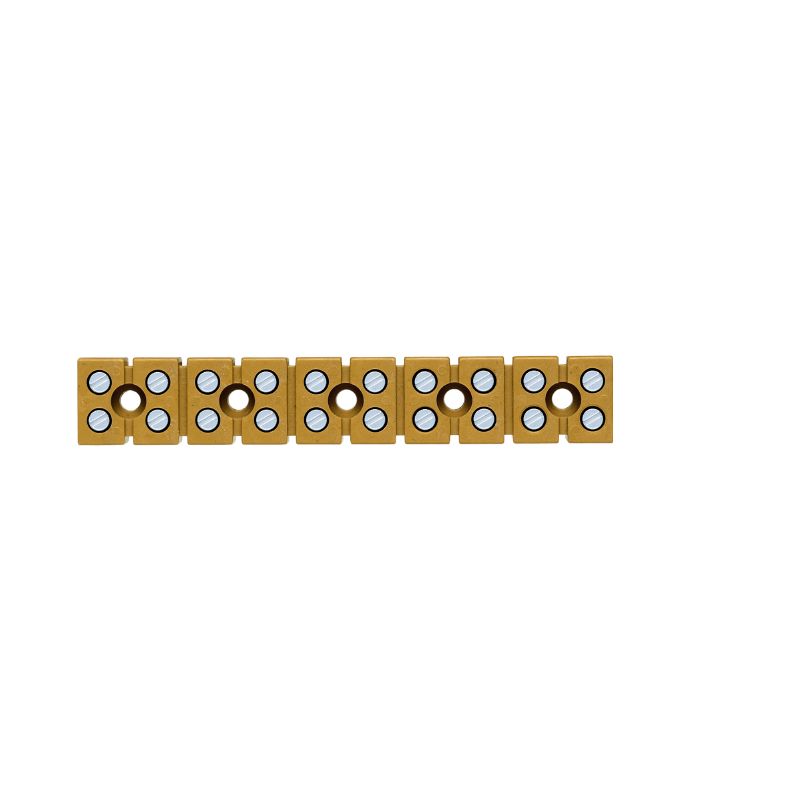

0274620000 - 20-Point Yellow Terminal Strip, 24A, 400V, Screw Connection (Pack of 20)
0274620000 - 20-Point Yellow Terminal Strip, 24A, 400V, Screw Connection (Pack of 20)
SKU: SKU: 0274620000 Download PDF
- 0274620000 - 20-Point Yellow Terminal Strip, 24A, 400V, Screw Connection (Pack of 20)
- 0274620000 - 20-Point Yellow Terminal Strip, 24A, 400V, Screw Connection (Pack of 20)
Couldn't load pickup availability
Description:
Introducing the MK 3/10 terminal strip, designed for versatile use with both single and multi-pole connections Crafted from durable medium yellow material, this terminal strip is built to last It supports a wire size up to 25 mm² and is capable of handling a maximum current of 24 A, along with voltages reaching 400 V With 20 connection points arranged in a single level, this strip is an excellent choice for a range of electrical applications, ensuring reliability and efficiency in your setups.
Features and Benefits:
•Screw connection type for reliable connections.
•Designed for mounting rails.
•Compliant with RoHS without any exemptions.
•Direct mounting installation.
•Required no end cover plate for assembly.
Specifications:
| Depth | 16.1 mm |
| Height | 15 mm |
| Width | 91.25 mm |
| Storage temperature | -25 °C...55 °C |
| Ambient temperature | -5 °C…40 °C |
| Rated voltage | 400 V |
| Rated current | 24 A |
| Number of connections | 20 |
| Flammability rating | UL 94 5VA |
| Clamping range, max. | 4 mm² |
| Clamping range, min. | 0.33 mm² |
| Wire connection cross-section, max. | 4 mm² |
| Wire connection cross-section, min. | 0.5 mm² |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Rated impulse withstand voltage | 6 kV |
| Power loss in accordance with IEC 60947-7-x | 0.77 W |
| Pollution severity | 3 |
| Current size B (UR) | 20 A |
| Current size D (UR) | 5 A |
