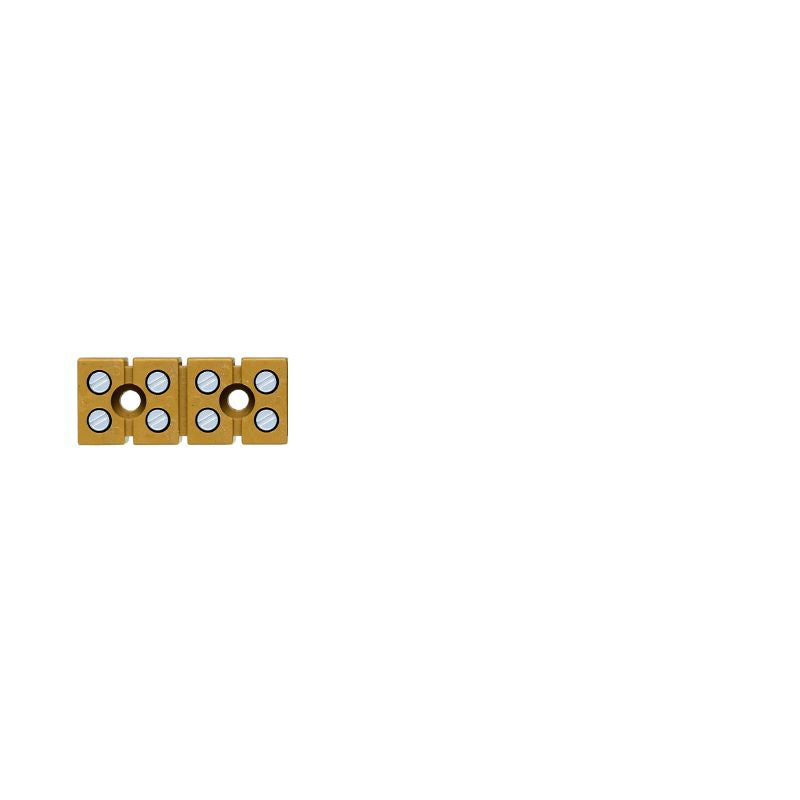

7906130000 - Yellow 2.5mm² Terminal Strip, 8 Connection Points, 400V (Pack of 50)
7906130000 - Yellow 2.5mm² Terminal Strip, 8 Connection Points, 400V (Pack of 50)
SKU: SKU: 7906130000 Download PDF
- 7906130000 - Yellow 2.5mm² Terminal Strip, 8 Connection Points, 400V (Pack of 50)
- 7906130000 - Yellow 2.5mm² Terminal Strip, 8 Connection Points, 400V (Pack of 50)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Discover this versatile terminal strip, designed for both single and multi-pole connections, presented in a vibrant medium yellow hue It is capable of accommodating wire cross-sections of 25 mm² and can handle a current of up to 24 A, with a voltage rating of 400 V This efficient terminal strip offers eight connection points within a single level configuration, making it an excellent choice for your wiring needs.
Features and Benefits:
•Suitable for direct mounting with a mounting plate.
•UL approved and RoHS compliant.
•Rated DC voltage is 400 V.
Specifications:
| Depth | 16.1 mm |
| Height | 15 mm |
| Width | 35.75 mm |
| Storage temperature | -25 °C to 55 °C |
| Ambient temperature | -5 °C to 40 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Basic material | KrG |
| Number of connections | 8 |
| Number of levels | 1 |
| Rated voltage | 400 V |
| Rated impulse withstand voltage | 6 kV |
| Volume resistance | 1.33 mΩ |
