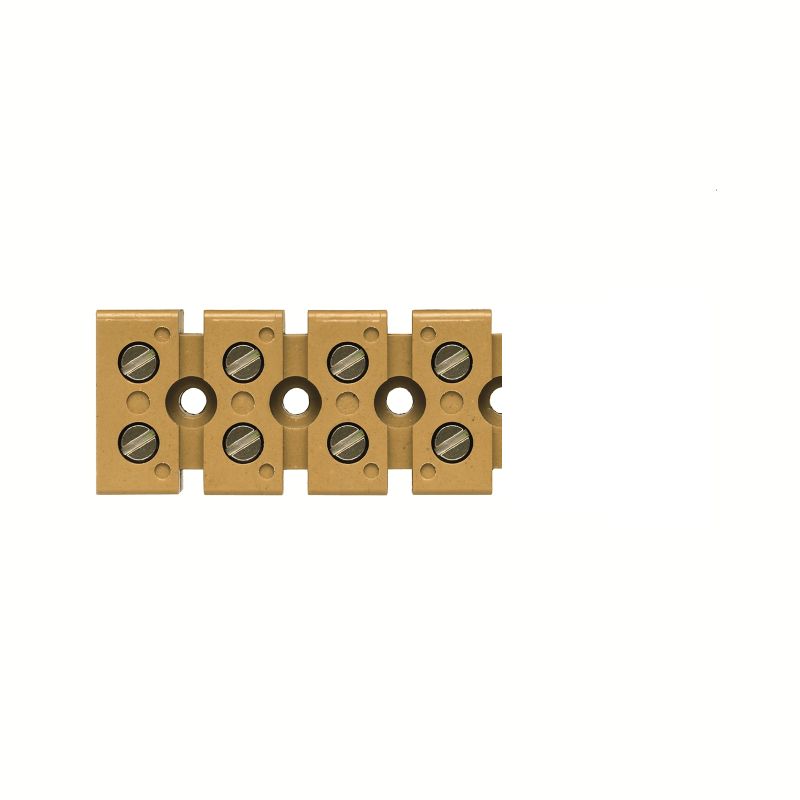

0620220000 - 8 Connection Yellow Terminal Strip, Rated 41A at 690V (Pack of 20)
0620220000 - 8 Connection Yellow Terminal Strip, Rated 41A at 690V (Pack of 20)
SKU: SKU: 0620220000 Download PDF
- 0620220000 - 8 Connection Yellow Terminal Strip, Rated 41A at 690V (Pack of 20)
- 0620220000 - 8 Connection Yellow Terminal Strip, Rated 41A at 690V (Pack of 20)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing our versatile terminal strip designed for both single and multi-pole connections, featuring reliable screw connections for secure attachment This terminal strip boasts a vibrant medium yellow hue and is engineered to handle currents of up to 41 A at a voltage of 690 V It accommodates a total of 8 connections and is constructed in a convenient single level format, making it an efficient choice for various electrical applications.
Features and Benefits:
•Rated for 41 A at 690 V.
•Compliant with RoHS without exemption.
•Designed for direct mounting.
•UL and CSA certified.
Specifications:
| Depth | 22 mm |
| Height | 23 mm |
| Width | 49.5 mm |
| Storage temperature | -25 °C to 55 °C |
| Ambient temperature | -5 °C to 40 °C |
| Rated cross-section | 6 mm² |
| Rated voltage | 690 V |
| Rated DC voltage | 690 V |
| Nominal current | 41 A |
| Number of connections | 8 |
| Clamping range, max | 6 mm² |
| Clamping range, min | 0.33 mm² |
