Description:

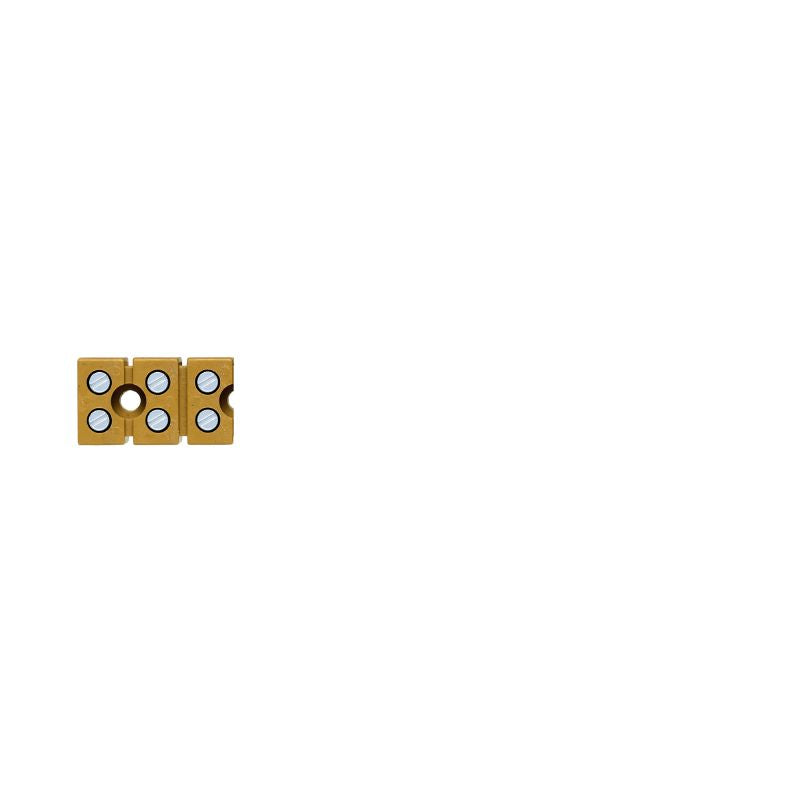

Introducing a versatile terminal strip designed for both single and multi-pole applications This component, finished in a medium yellow hue, features robust screw connections and accommodates a cross-section of 25 mm² It is engineered to handle a maximum current of 24 A and a voltage of 400 V, boasting six connection points arranged in a neat single level, ensuring efficient electrical distribution in your projects.
Features and Benefits:
•Medium yellow color.
•Designed for direct mounting.
•Screw connection type.
Specifications:
| Depth | 16.1 mm |
| Height | 15 mm |
| Width | 26.5 mm |
| Net weight | 9.803 g |
| Rated cross-section | 2.5 mm² |
| Rated voltage | 400 V |
| Nominal current | 24 A |
| Number of connections | 6 |
| Number of levels | 1 |
| Storage temperature | -25 °C...55 °C |
| Ambient temperature | -5 °C…40 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| UL 94 flammability rating | 5VA |
| Clamping range, max. | 4 mm² |
| Clamping range, min. | 0.33 mm² |
| Tightening torque, max. | 0.45 Nm |
| Tightening torque, min. | 0.4 Nm |
| Current size C (CSA) | 25 A |
| Voltage size C (CSA) | 300 V |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 22 |
