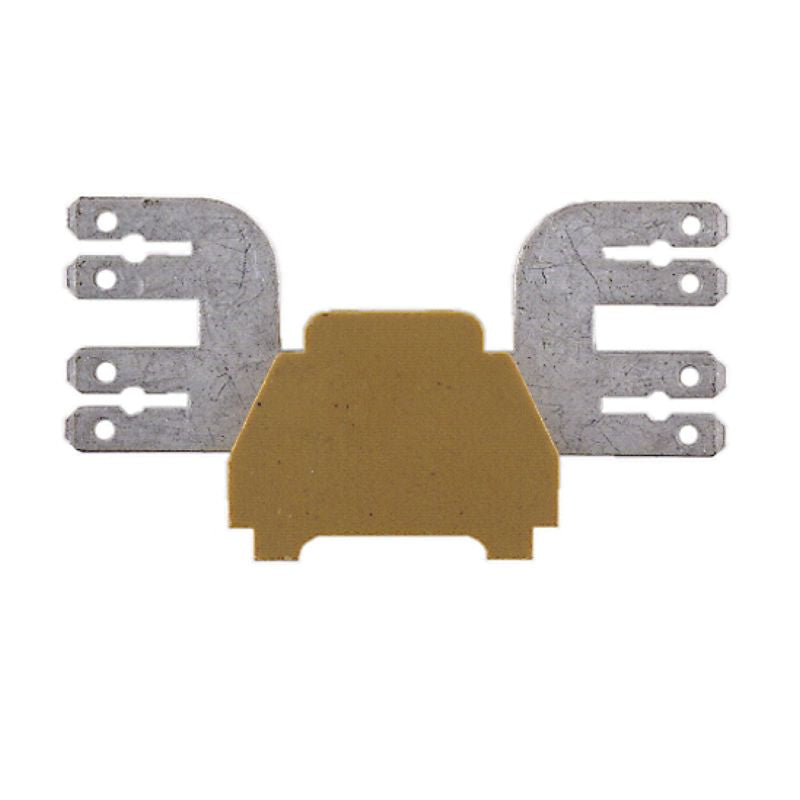

0480220000 - Medium Yellow 8-Connection Terminal Strip, 12A 400V (Pack of 50)
0480220000 - Medium Yellow 8-Connection Terminal Strip, 12A 400V (Pack of 50)
SKU: SKU: 0480220000 Download PDF
- 0480220000 - Medium Yellow 8-Connection Terminal Strip, 12A 400V (Pack of 50)
- 0480220000 - Medium Yellow 8-Connection Terminal Strip, 12A 400V (Pack of 50)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the MF 1/12 4X63/28 terminal strip, a versatile solution for both single and multi-pole connections, featuring a flat-blade design This terminal strip showcases a vibrant medium yellow hue and is built to accommodate a cross-section of 25 mm², making it reliable with a capacity of 12 A up to 400 V It offers 8 connection points and is structured in a single-level configuration, ensuring efficient and organized wiring.
Perfect for a variety of electrical applications, this terminal strip combines functionality with easy installation.
Features and Benefits:
•Flat-blade connection.
•Suitable for direct mounting.
•RoHS compliant without exemption.
•Metal materials meet UL flammability ratings.
Specifications:
| Depth (mm) | 12.5 |
| Height (mm) | 6800 |
| Width (mm) | 113 |
| Storage temperature | -25 °C...55 °C |
| Continuous operating temperature | -60 °C to 130 °C |
| Current rating | 12 A |
| Voltage rating | 400 V |
| Clamping range | 0.5 mm² to 2.5 mm² |
| Installation advice | Direct mounting |
| Wire connection type | Flat-blade connection |
| Environmental compliance | RoHS compliant |
