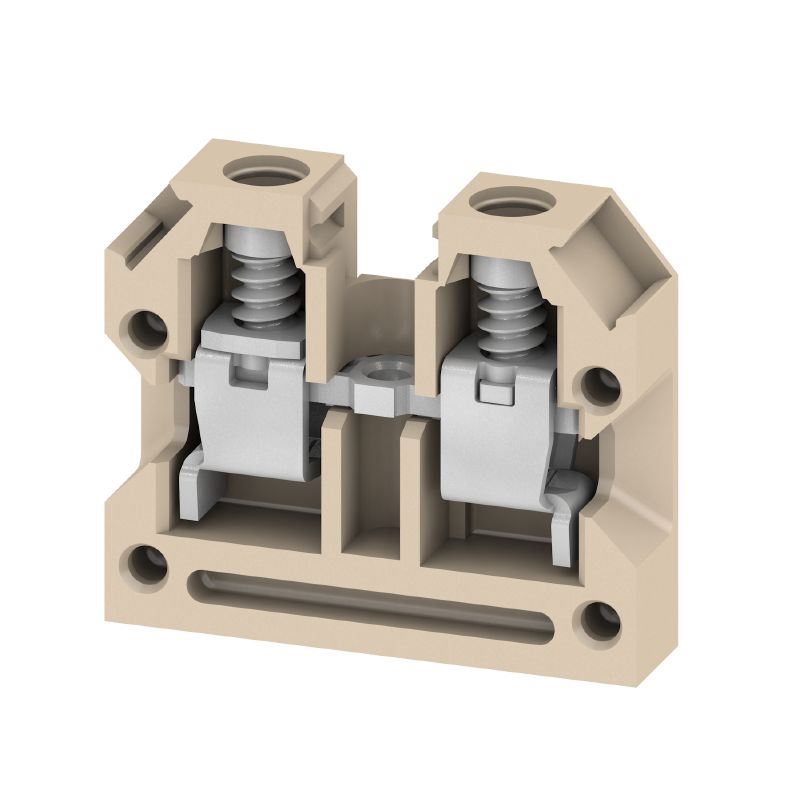

0321560000 - 4mm² Beige Terminal Block, 32A Screw Connection (Pack of 100)
0321560000 - 4mm² Beige Terminal Block, 32A Screw Connection (Pack of 100)
SKU: SKU: 0321560000 Download PDF
- 0321560000 - 4mm² Beige Terminal Block, 32A Screw Connection (Pack of 100)
- 0321560000 - 4mm² Beige Terminal Block, 32A Screw Connection (Pack of 100)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the AKB 4 feed-through terminal block, featuring a reliable screw connection This component comes in a beige/yellow hue and accommodates wire sizes of up to 4 mm² With a robust current rating of 32 A and a voltage capacity of 400 V, it offers the ability to create two separate connections Designed for ease of installation, it can be directly mounted on a mounting plate, making it a versatile choice for your electrical needs.
Features and Benefits:
•Screw connection for easy cross-connection.
•Compact design with dimensions of 60 mm width, 55.5 mm depth, and 27 mm height.
•Robust material made from PA 66.
•Compatible with various wire sizes from 0.13 mm² to 6 mm².
•Installation advice recommends direct mounting.
Specifications:
| Depth | 55.5 mm |
| Height | 27 mm |
| Width | 60 mm |
| Storage temperature | -25 °C...55 °C |
| Ambient temperature | -5 °C…40 °C |
| Continuous operating temp., min. | -50 °C |
| Continuous operating temp., max. | 100 °C |
| Number of connections | 2 |
| Rated cross-section | 4 mm² |
| Rated voltage | 400 V |
| Nominal current | 32 A |
| Volume resistance according to IEC 60947-7-x | 1 mΩ |
| Rated impulse withstand voltage | 6 kV |
| Power loss in accordance with IEC 60947-7-x | 1.02 W |
| Current size C (CSA) | 10 A |
| Wire connection cross section max. (CSA) | 12 AWG |
| Wire connection cross section min. (CSA) | 22 AWG |
