0480120000 - 8-Connection Yellow Terminal Strip, 2.5 mm², 400V (Pack of 50)
0480120000 - 8-Connection Yellow Terminal Strip, 2.5 mm², 400V (Pack of 50)
SKU: SKU: 0480120000 Download PDF
- 0480120000 - 8-Connection Yellow Terminal Strip, 2.5 mm², 400V (Pack of 50)
- 0480120000 - 8-Connection Yellow Terminal Strip, 2.5 mm², 400V (Pack of 50)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

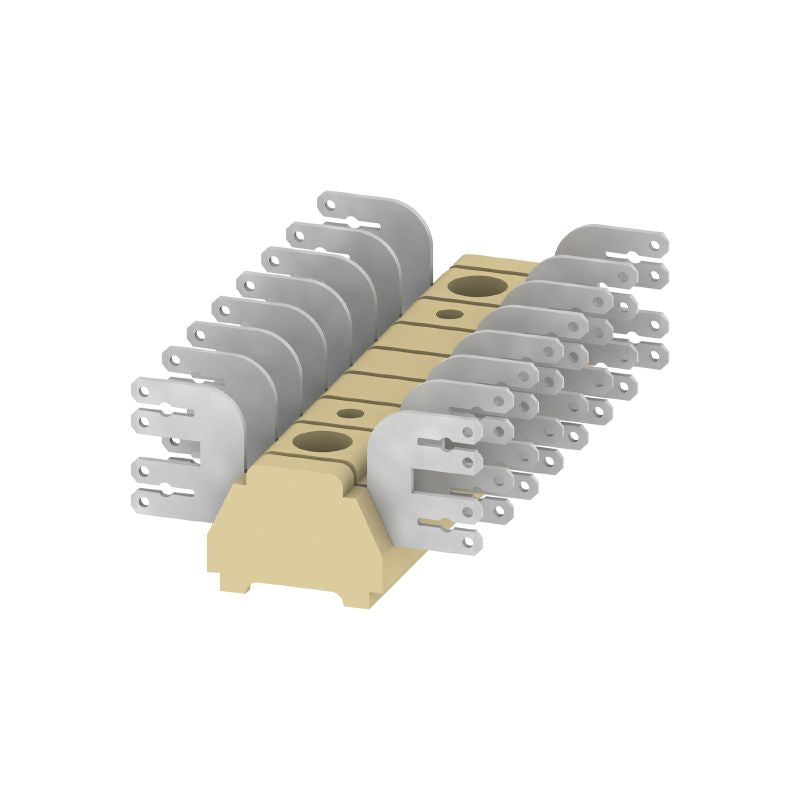

Introducing the MF 1/8 4X63/28 terminal strip, an ideal solution for both single and multi-pole connections This terminal strip boasts a flat-blade connection type and is showcased in a vibrant medium yellow hue It accommodates a conductor size of 25 mm², making it capable of handling loads up to 8A and 400V With a total of 8 connection points arranged in a single level, this strip is designed to meet various electrical wiring needs efficiently.
Features and Benefits:
•Compliant with RoHS standards.
•Direct mounting.
•Requires no end cover plate.
Specifications:
| Depth | 12.5 mm |
| Height | 68 mm |
| Width | 68 mm |
| Storage temperature | -25 °C to 55 °C |
| Ambient temperature | -5 °C to 40 °C |
| Continuous operating temp., min | -60 °C |
| Continuous operating temp., max | 130 °C |
| Number of connections | 8 |
| Rated cross-section | 2.5 mm² |
| Rated voltage | 400 V |
| Nominal current | 8 A |
