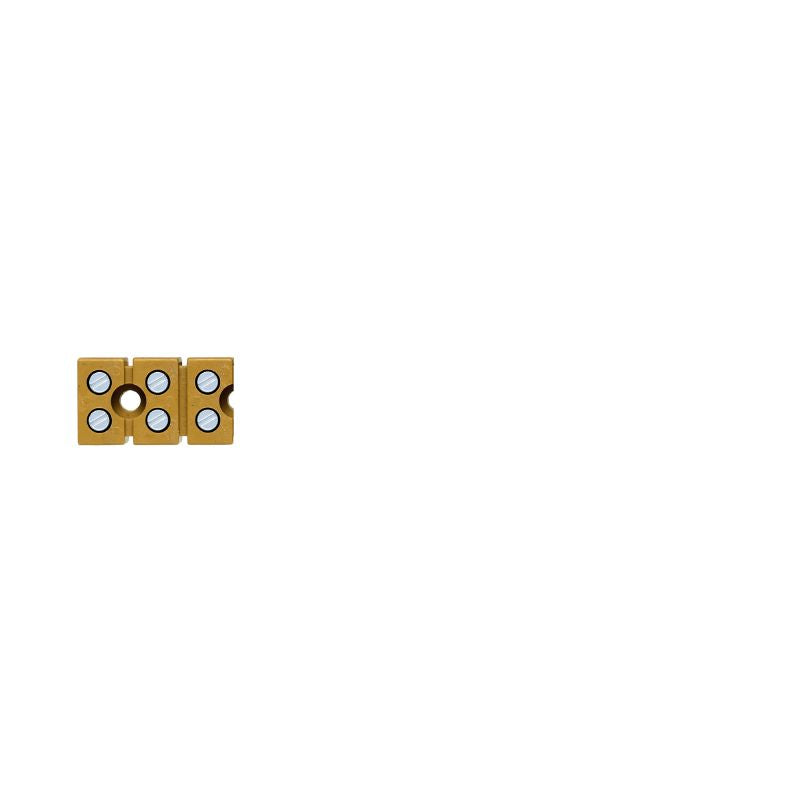

7906120000 - 6-Point Yellow Terminal Strip, 2.5mm², 24A, 400V (Pack of 50)
7906120000 - 6-Point Yellow Terminal Strip, 2.5mm², 24A, 400V (Pack of 50)
SKU: SKU: 7906120000 Download PDF
- 7906120000 - 6-Point Yellow Terminal Strip, 2.5mm², 24A, 400V (Pack of 50)
- 7906120000 - 6-Point Yellow Terminal Strip, 2.5mm², 24A, 400V (Pack of 50)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Optimize your electrical connections with this versatile single and multi-pole terminal strip, featuring secure screw connections Boasting a vibrant medium yellow hue, it accommodates conductors of up to 25 mm² and can support a current of 24 A at a maximum voltage of 400 V This terminal strip offers six connection points in a streamlined one-level design, making it a practical choice for various applications.
Features and Benefits:
•Compliant with RoHS without any exemptions.
•Suitable for direct mounting.
•Screw connection type for enhanced reliability.
•No end cover plate is required.
Specifications:
| Depth | 16.1 mm |
| Height | 15 mm |
| Width | 26.5 mm |
| Storage temperature | -25 °C...55 °C |
| Ambient temperature | -5 °C…40 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Number of connections | 6 |
| Number of levels | 1 |
| Rated voltage | 400 V |
| Rated current | 24 A |
| Rated cross-section | 2.5 mm² |
| Tightening torque, max. | 0.45 Nm |
| Tightening torque, min. | 0.4 Nm |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Rated impulse withstand voltage | 6 kV |
| Pollution severity | 3 |
| UL File Number | E60693 |
| Conductor size, min. | 22 AWG |
| Conductor size, max. | 12 AWG |
