7906090000 - 12-Pole Terminal Strip, 32A, 4mm² Screw Connection (Pack of 50)
7906090000 - 12-Pole Terminal Strip, 32A, 4mm² Screw Connection (Pack of 50)
SKU: SKU: 7906090000 Download PDF
- 7906090000 - 12-Pole Terminal Strip, 32A, 4mm² Screw Connection (Pack of 50)
- 7906090000 - 12-Pole Terminal Strip, 32A, 4mm² Screw Connection (Pack of 50)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

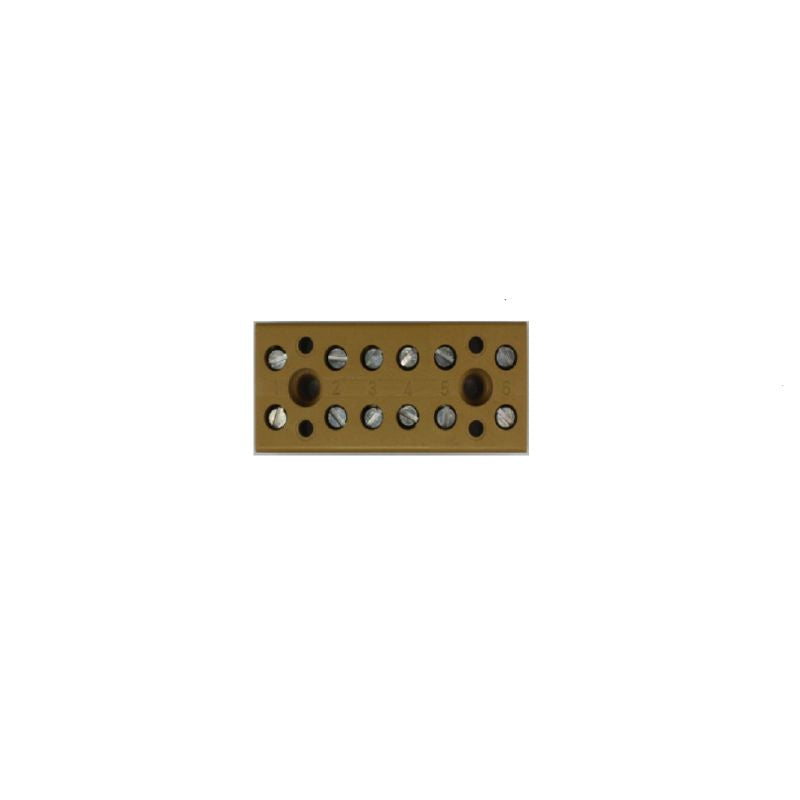

Introducing the BK 6/E terminal strip, a versatile solution for both single and multi-pole connections, featuring robust screw connections This terminal strip is designed to accommodate wires with a cross-section of 4 mm², offering a current capacity of 32 A and a voltage limit of 400 V With 12 points for connection, it simplifies installation on mounting plates Additionally, it adheres to RoHS standards, ensuring environmentally responsible materials and construction.
Features and Benefits:
•Screw connection for secure wire attachment.
•Compact dimensions suitable for installation in various applications.
•RoHS compliant, ensuring environmental standards.
•Direct mounting capability for ease of installation.
•Supports a wide range of wire sizes and types.
Specifications:
| Depth | 20 mm |
| Height | 22 mm |
| Width | 52 mm |
| Net weight | 38.4 g |
| Storage temperature | -25 °C...55 °C |
| Ambient temperature | -5 °C…40 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Number of poles | 6 |
| Rated cross-section | 4 mm² |
| Rated voltage | 400 V |
| Nominal current | 32 A |
| Volume resistance according to IEC 60947-7-x | 1 mΩ |
| Rated impulse withstand voltage | 6 kV |
| Power loss in accordance with IEC 60947-7-x | 1.02 W |
| Pollution severity | 3 |
| Conductor size Factory wiring max. (UR) | 12 AWG |
| Conductor size Factory wiring min. (UR) | 26 AWG |
| Conductor size Field wiring max. (UR) | 12 AWG |
| Conductor size Field wiring min. (UR) | 22 AWG |
