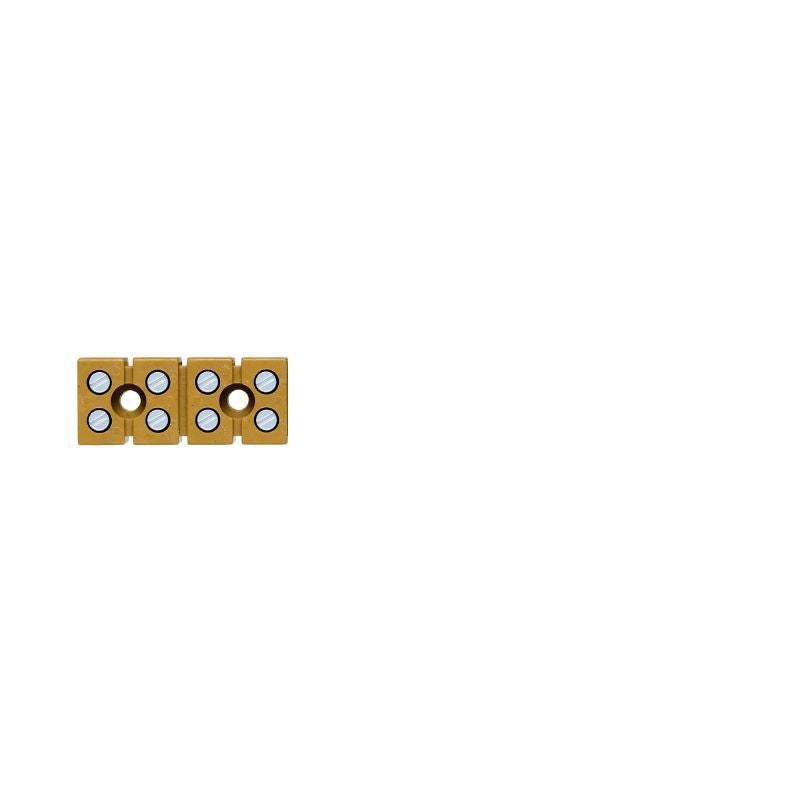

0274020000 - Yellow Terminal Strip, 8 Connections, 2.5 mm², 400V (Pack of 50)
0274020000 - Yellow Terminal Strip, 8 Connections, 2.5 mm², 400V (Pack of 50)
SKU: SKU: 0274020000 Download PDF
- 0274020000 - Yellow Terminal Strip, 8 Connections, 2.5 mm², 400V (Pack of 50)
- 0274020000 - Yellow Terminal Strip, 8 Connections, 2.5 mm², 400V (Pack of 50)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Discover the MK 3/4 terminal strip, designed for both single and multi-pole applications with reliable screw connections This model comes in a vibrant medium yellow color and accommodates a cross-sectional area of 25 mm² It supports a nominal current of 24 A and operates at a rated voltage of 400 V, featuring 8 connections on a single level for versatile wiring solutions.
Features and Benefits:
•Compliant with RoHS without exemptions.
•Direct mounting configuration.
•No end cover plate required.
•Rated for a maximum operating temperature of 130 °C.
•UL 94 flammability rating of 5VA.
•Explosion-tested version not required.
Specifications:
| Depth | 16.1 mm |
| Height | 15 mm |
| Width | 35.75 mm |
| Storage temperature | -25 °C to 55 °C |
| Ambient temperature | -5 °C to 40 °C |
| Rated voltage | 400 V |
| Nominal current | 24 A |
| Rated cross-section | 2.5 mm² |
| Number of poles | 4 |
| Clamping range, max. | 4 mm² |
| Clamping range, min. | 0.33 mm² |
| Connection type | Screw connection |
| Number of connections | 8 |
| Current size C (CSA) | 25 A |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 22 |
