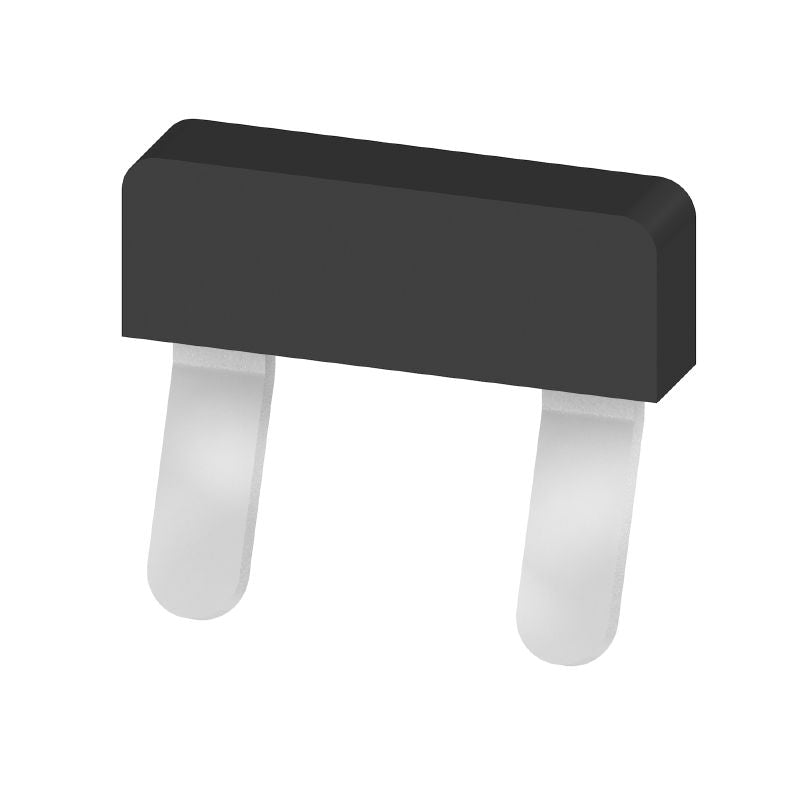

3833700000 - Black Cross-Connector, 2 Poles, Insulated, 14.5mm Wide (Pack of 20)
3833700000 - Black Cross-Connector, 2 Poles, Insulated, 14.5mm Wide (Pack of 20)
SKU: SKU: 3833700000 Download PDF
- 3833700000 - Black Cross-Connector, 2 Poles, Insulated, 14.5mm Wide (Pack of 20)
- 3833700000 - Black Cross-Connector, 2 Poles, Insulated, 14.5mm Wide (Pack of 20)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the QB 2 MK3, a reliable black cross-connector with two poles and a current rating of 24 A This connector features an insulated design, measuring 145 mm in width and a pitch of 10 mm, ensuring both safety and efficiency It meets rigorous RoHS standards without any exemptions, guaranteeing compliance and quality Perfect for your electrical needs!.
Features and Benefits:
•Cross-connector with 2 poles.
•Rated current of 24 A.
•Plugged type of fixing and mounting.
•Compliant with RoHS regulations.
•Made from PA 6.6 material.
Specifications:
| Depth | 3 mm |
| Height | 12.24 mm |
| Width | 14.5 mm |
| Storage temperature | -25 °C...55 °C |
| Ambient temperature | -5 °C…40 °C |
| Material | PA 6.6 |
| Number of cross-connected terminals | 2 |
| Nominal current | 24 A |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
