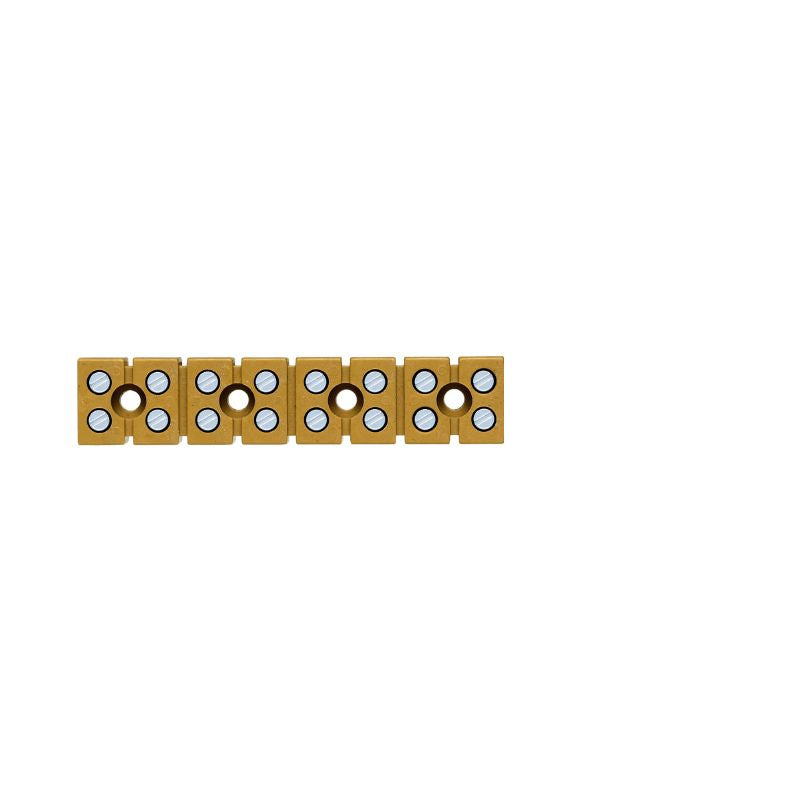

7906170000 - 16 Connection 2.5mm² Terminal Strip, 24A Voltage Ratings (Pack of 25)
7906170000 - 16 Connection 2.5mm² Terminal Strip, 24A Voltage Ratings (Pack of 25)
SKU: SKU: 7906170000 Download PDF
- 7906170000 - 16 Connection 2.5mm² Terminal Strip, 24A Voltage Ratings (Pack of 25)
- 7906170000 - 16 Connection 2.5mm² Terminal Strip, 24A Voltage Ratings (Pack of 25)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the MK 3/8/E terminal strip, an ideal solution for both single-pole and multi-pole applications Engineered with screw connections, this terminal strip accommodates a wire cross-section of 25 mm², offering reliability with a maximum current rating of 24 A and a voltage rating of 400 V It provides 16 organized connections on a single level, making installation straightforward Compliant with RoHS and various environmental standards, this product is designed for plate mounting and operates without the need for an end cover.
Features and Benefits:
•Medium yellow color.
•Screw connection type.
•No end cover plate needed.
•Designed for direct mounting.
Specifications:
| Depth | 16.1 mm |
| Height | 15 mm |
| Width | 72.75 mm |
| Storage temperature | -25 °C to 55 °C |
| Ambient temperature | -5 °C to 40 °C |
| Continuous operating temperature, min | -60 °C |
| Continuous operating temperature, max | 130 °C |
| Basic material | KrG |
| Number of connections | 16 |
| Rated cross-section | 2.5 mm² |
| Rated voltage | 400 V |
| Nominal current | 24 A |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Rated impulse withstand voltage | 6 kV |
| Power loss in accordance with IEC 60947-7-x | 0.77 W |
| Pollution severity | 3 |
| Clamping range, max | 4 mm² |
| Clamping range, min | 0.33 mm² |
| Tightening torque, max | 0.45 Nm |
| Tightening torque, min | 0.4 Nm |
| Gauge to IEC 60947-1 | A2 |
| Number of poles | 8 |
| Certificate No. (UR) | E60693 |
| Certificate No. (ATEX) | TUEV18ATEX8209U |
| Max. voltage (ATEX) | 275 V |
| Current (ATEX) | 24 A |
| Wire connection cross-section, solid core, max | 4 mm² |
| Wire connection cross-section, solid core, min | 0.33 mm² |
