0241360000 - 2.5mm² Terminal Strip for Solder Connections, 20A Capacity (Pack of 50)
0241360000 - 2.5mm² Terminal Strip for Solder Connections, 20A Capacity (Pack of 50)
SKU: SKU: 0241360000 Download PDF
- 0241360000 - 2.5mm² Terminal Strip for Solder Connections, 20A Capacity (Pack of 50)
- 0241360000 - 2.5mm² Terminal Strip for Solder Connections, 20A Capacity (Pack of 50)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

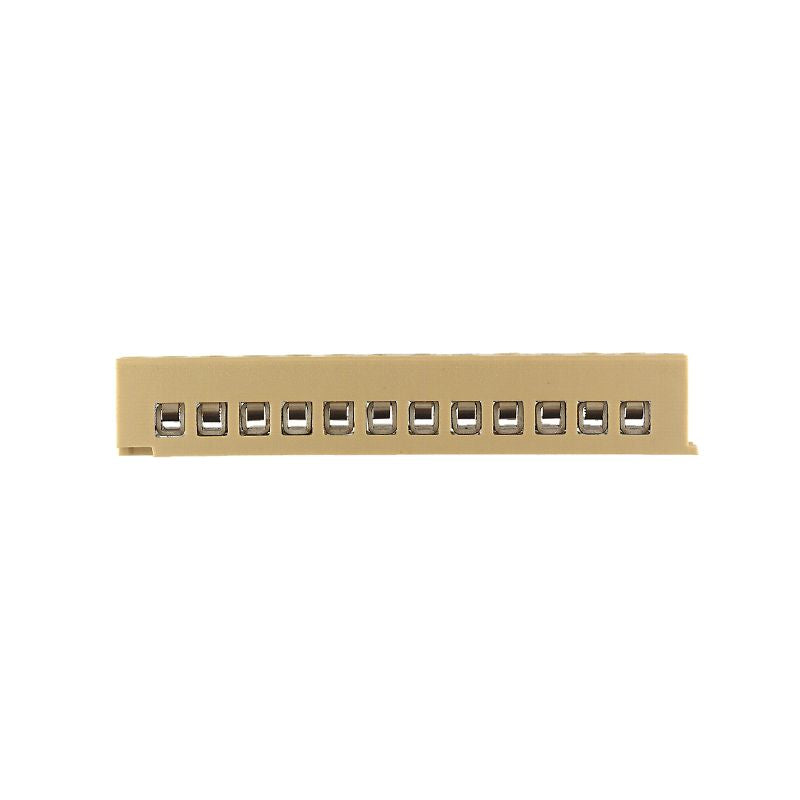

Discover the versatility of the MK 2/12 SL/WA terminal strip, crafted for both single and multi-pole solder connections This medium yellow component boasts a cross-section of 25 mm² and can handle a current of up to 20 A at a voltage of 125 V With its single connection point and one level design, it is ideal for a wide range of applications, making it an efficient choice for your electrical projects.
Features and Benefits:
•Color is medium yellow.
•Designed for direct mounting.
•RoHS compliant without exemptions.
•Screw connection is available for additional connection.
•Explosion-tested version is not available.
Specifications:
| Depth | 16.1 mm |
| Height | 15 mm |
| Width | 110 mm |
| Storage temperature | -25 °C...55 °C |
| Ambient temperature | -5 °C…40 °C |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Rated voltage | 125 V |
| Nominal current | 20 A |
| Rated DC voltage | 125 V |
| Rated cross-section | 2.5 mm² |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Rated impulse withstand voltage | 2.5 kV |
| Pollution severity | 3 |
| Mounting rail | Mounting plate |
| Number of poles | 12 |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 22 |
| Clamping range, max. | 2.5 mm² |
| Clamping range, min. | 0.2 mm² |
