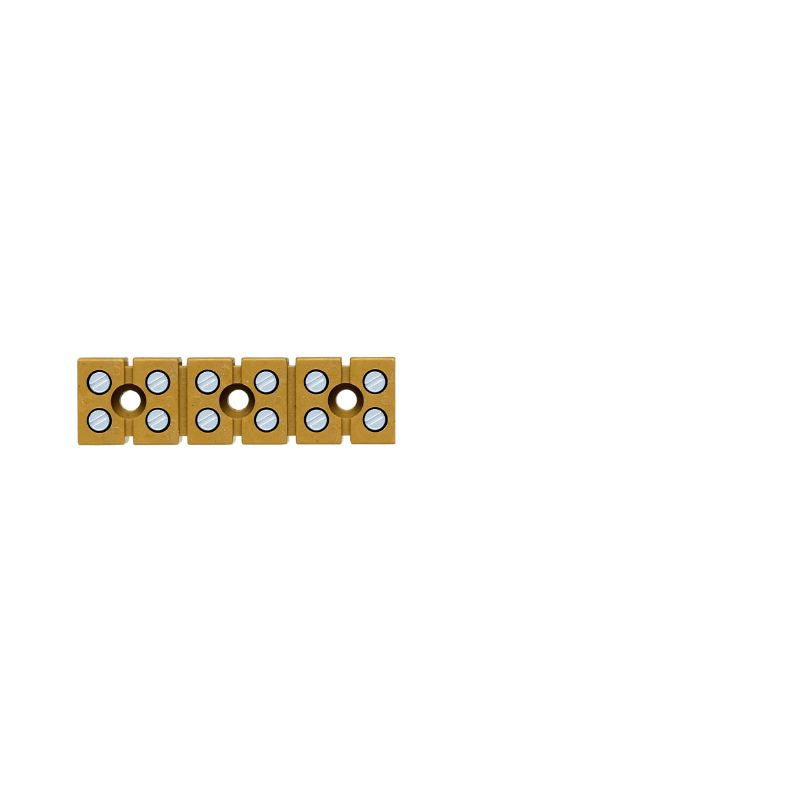

0274220000 - MK 3/6 Yellow 12-Connection Terminal Strip, 400V, 24A (Pack of 50)
0274220000 - MK 3/6 Yellow 12-Connection Terminal Strip, 400V, 24A (Pack of 50)
SKU: SKU: 0274220000 Download PDF
- 0274220000 - MK 3/6 Yellow 12-Connection Terminal Strip, 400V, 24A (Pack of 50)
- 0274220000 - MK 3/6 Yellow 12-Connection Terminal Strip, 400V, 24A (Pack of 50)
Couldn't load pickup availability
Description:
Introducing the MK 3/6 terminal strip, a versatile solution for your electrical connections This terminal strip features both single and multi-pole options with reliable screw connections Its medium yellow hue adds a vibrant touch, while engineered to handle wire sizes up to 25 mm² With a robust current capacity of 24 A and a voltage rating of 400 V, it supports up to 12 connections arranged in a single level.
Designed for easy installation, it mounts directly on plates, making it a practical choice for various applications.
Features and Benefits:
•Medium yellow color.
•Suitable for direct mounting.
•12 connection points.
•Screw connection type.
•Used in electrical installations where terminal strips are required..
Specifications:
| Depth | 16.1 mm |
| Height | 15 mm |
| Width | 54.25 mm |
| Net weight | 21.6 g |
| Storage temperature | -25 °C...55 °C |
| Ambient temperature | -5 °C…40 °C |
| Number of poles | 6 |
| Rated cross-section | 2.5 mm² |
| Rated voltage | 400 V |
| Nominal current | 24 A |
| Clamping range, max. | 4 mm² |
| Clamping range, min. | 0.33 mm² |
| Volume resistance | 1.33 mΩ |
| Rated impulse withstand voltage | 6 kV |
| Flammability rating | 5VA |
