7906060000 - 32A Terminal Strip, Secure Connections, Medium Yellow, 6 Ports (Pack of 100)
7906060000 - 32A Terminal Strip, Secure Connections, Medium Yellow, 6 Ports (Pack of 100)
SKU: SKU: 7906060000 Download PDF
- 7906060000 - 32A Terminal Strip, Secure Connections, Medium Yellow, 6 Ports (Pack of 100)
- 7906060000 - 32A Terminal Strip, Secure Connections, Medium Yellow, 6 Ports (Pack of 100)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

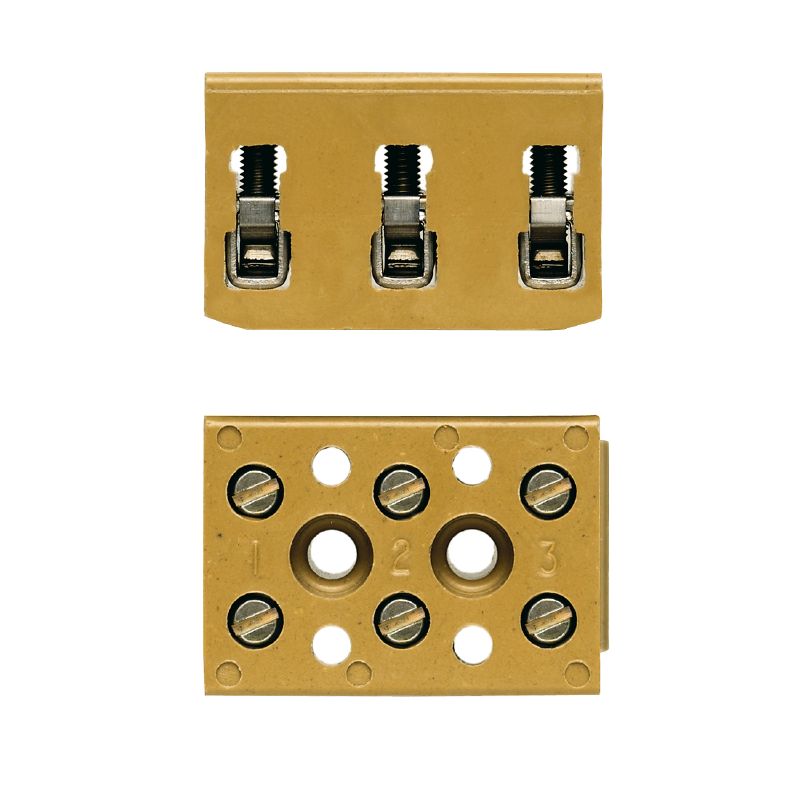

Introducing the BK 3/E terminal strip, expertly crafted for both single and multi-pole connections This medium yellow component guarantees reliable screw connections, boasting a maximum capacity of 32 A and 400 V Featuring 6 connection points arranged in a single level, this terminal strip measures 20 mm in depth, 22 mm in height, and 31 mm in width, with a lightweight net weight of 213 g Perfect for various electrical applications, it’s designed for optimal performance and safety.
Features and Benefits:
•Medium yellow color.
•Screw connection type.
•6 connections.
•Direct mounting.
•Compliant with RoHS without exemption.
•Installation advice for direct mounting.
•Rated cross-section of 4 mm².
•Rated voltage of 400 V.
Specifications:
| Depth | 20 mm |
| Height | 22 mm |
| Width | 31 mm |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Number of levels | 1 |
| Ambient temperature | -5 °C…40 °C |
| Storage temperature | -25 °C...55 °C |
| Rated DC voltage | 400 V |
| Nominal current | 32 A |
| Volume resistance according to IEC 60947-7-x | 1 mΩ |
| Rated impulse withstand voltage | 6 kV |
| Power loss in accordance with IEC 60947-7-x | 1.02 W |
| Pollution severity | 3 |
| Wire cross section max. (ATEX) | 4 mm² |
| Wire connection cross-section, solid core, max. | 4 mm² |
