0241260000 - Beige Terminal Strip, 24 Connections, 2.5mm², 24A, 125V (Pack of 50)
0241260000 - Beige Terminal Strip, 24 Connections, 2.5mm², 24A, 125V (Pack of 50)
SKU: SKU: 0241260000 Download PDF
Select a Variant:
- 0241260000 - Beige Terminal Strip, 24 Connections, 2.5mm², 24A, 125V (Pack of 50)
- 0241260000 - Beige Terminal Strip, 24 Connections, 2.5mm², 24A, 125V (Pack of 50)
Qty:
Unit price
per
Sold out
Shipping calculated at checkout.
IN STOCK Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
Couldn't load pickup availability
Product Information
Description:

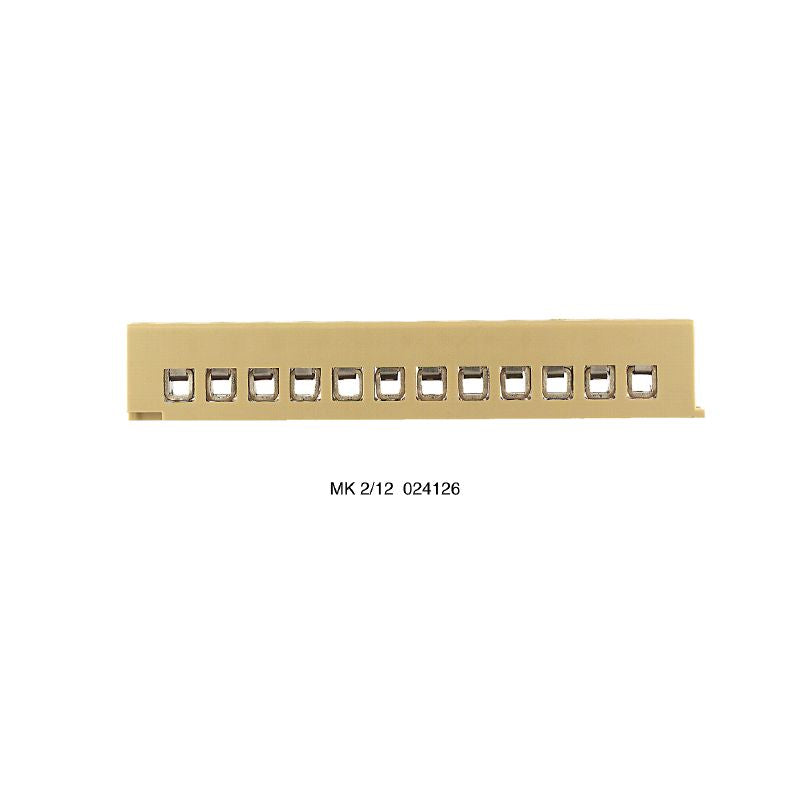

Introducing the MK 2/12 terminal strip, a versatile solution for your wiring needs This beige-hued terminal strip accommodates conductor sizes up to 25 mm² and supports a maximum current of 24 A with a voltage rating of 125 V With 24 single-level connections, it offers both functionality and efficiency for your electrical projects.
Features and Benefits:
•Color: beige.
•RoHS compliant.
•Direct mounting installation.
•No end cover plate required.
•Mounting plate for mounting rail.
Specifications:
| Depth | 15 mm |
| Height | 86 mm |
| Width | 15 mm |
| Storage temperature | -25 °C to 55 °C |
| Ambient temperature | -5 °C to 40 °C |
| Continuous operating temp., min | -50 °C |
| Continuous operating temp., max | 100 °C |
| Basic material | Polyamide 66 |
| UL 94 flammability rating | V-2 |
| Number of poles | 12 |
| Rated cross-section | 2.5 mm² |
| Rated voltage | 125 V |
| Nominal current | 24 A |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Rated impulse withstand voltage | 2.5 kV |
| Power loss in accordance with IEC 60947-7-x | 0.77 W |
| Wire connection cross section AWG, max | AWG 12 |
| Wire connection cross section AWG, min | AWG 24 |
