0624920000 - Medium Yellow Terminal Strip, 6 Connections, 32A, 400V (Pack of 100)
0624920000 - Medium Yellow Terminal Strip, 6 Connections, 32A, 400V (Pack of 100)
SKU: SKU: 0624920000 Download PDF
- 0624920000 - Medium Yellow Terminal Strip, 6 Connections, 32A, 400V (Pack of 100)
- 0624920000 - Medium Yellow Terminal Strip, 6 Connections, 32A, 400V (Pack of 100)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

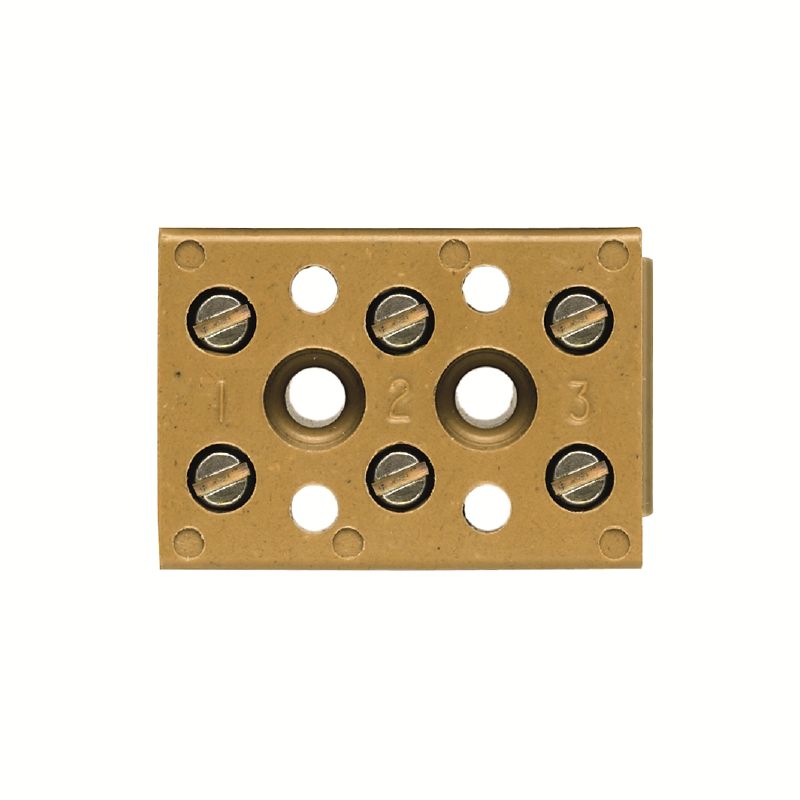

Introducing a versatile terminal strip available in a vibrant medium yellow hue, perfect for both single and multi-pole applications This terminal strip accommodates wires up to 4 mm² and is rated for a current of 32 A, ensuring reliable performance with voltage support up to 400 V Featuring six connection points in a single-layer design, it's a practical solution for various wiring needs.
Features and Benefits:
•RoHS compliant without exemptions.
•Direct mounting installation.
•No end cover plate required.
•UL 94 flammability rating of V-0.
•Used for electrical connections in mounting rails.
Specifications:
| Depth | 20 mm |
| Height | 22 mm |
| Width | 31 mm |
| Net weight | 14 g |
| Storage temperature | -25 °C to 55 °C |
| Ambient temperature | -5 °C to 40 °C |
| Continuous operating temperature | -60 °C to 130 °C |
| Number of levels | 1 |
| Number of connections | 6 |
| Rated cross-section | 4 mm² |
| Rated voltage | 400 V |
| Nominal current | 32 A |
| Wire connection cross section AWG, max | AWG 12 |
| Wire connection cross section AWG, min | AWG 22 |
