8000094097 - 5mm PCB Female Connector, 3 Poles, 180° Angle (Pack of 114)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

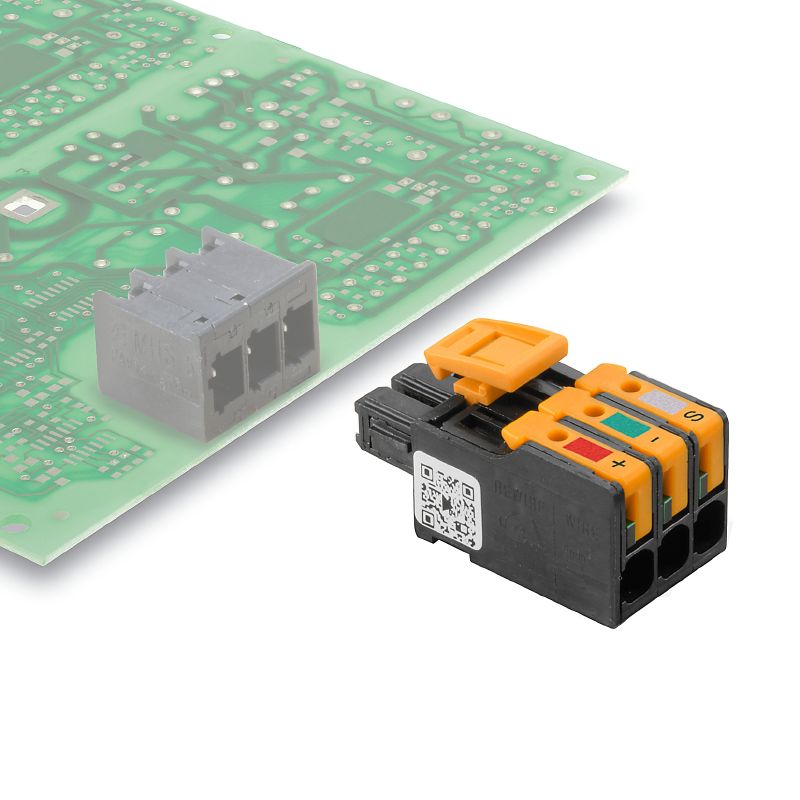

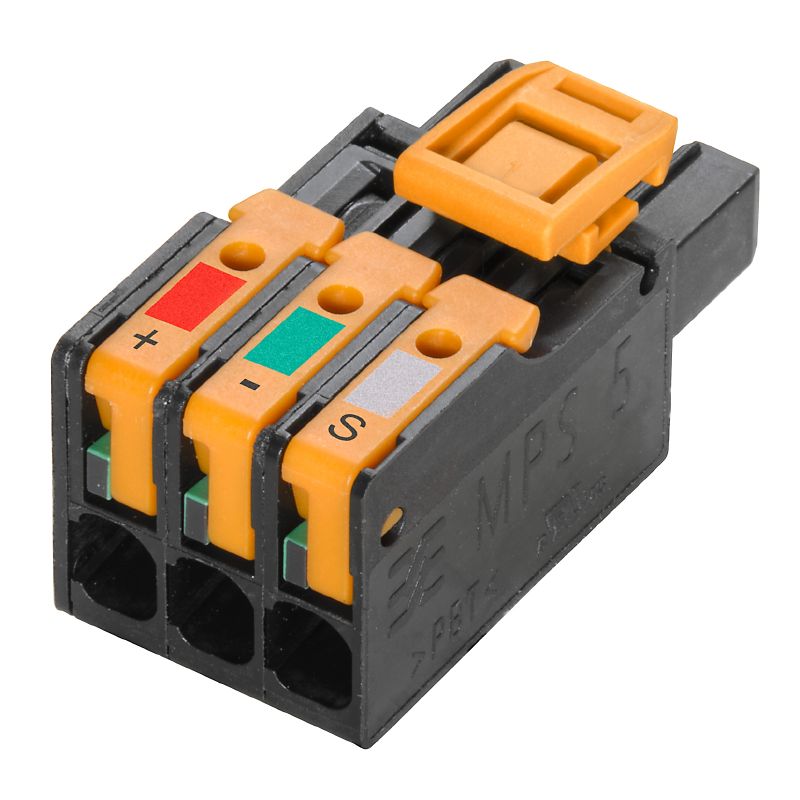

Introducing the MPS APL 5/03 S F2 TN B B D D, a high-performance PCB plug-in female connector with a 500 mm pitch and three poles arranged at a 180° angle This connector is rated for IEC voltages up to 400 V and can handle currents of 268 A, making it suitable for wire sizes ranging from 05 to 4 mm² For compliance with UL standards, it operates safely at 300 V with a maximum current capacity of 185 A for wire gauges AWG 20 to AWG 12.

Each connector is conveniently packaged in a box for easy storage and transport.

Features and Benefits:

•Compliant with RoHS without exemptions.

•High performance category supporting 10/100 MBit/s.

•Rated for 25 plugging cycles.

•Protection degree IP20.

Specifications:
