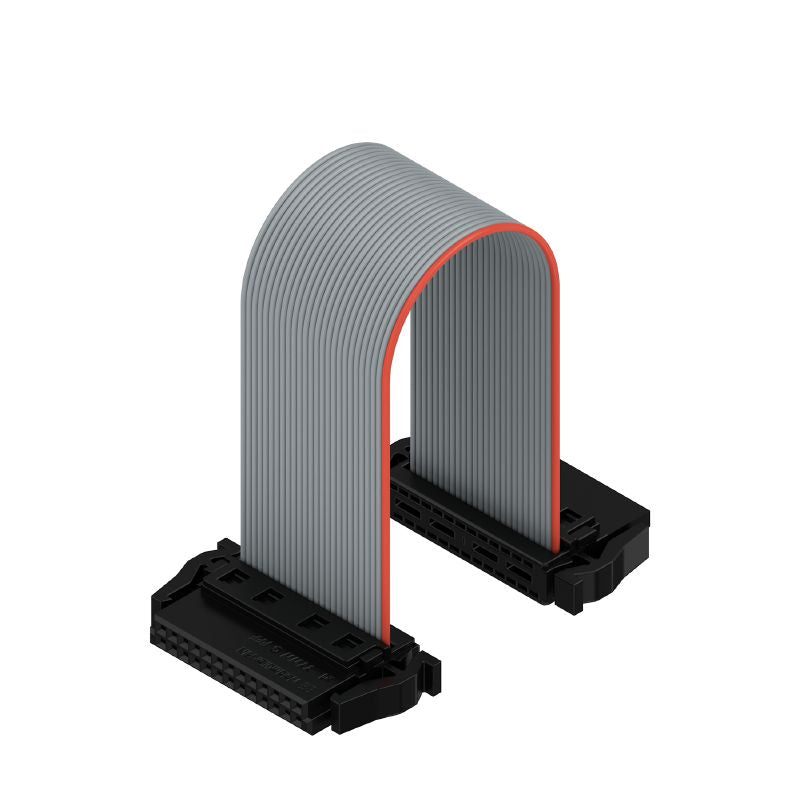

2827060000 - 1.27mm Pitch 26-Pole Female Plug PCB Connector (Pack of 10)

Description:

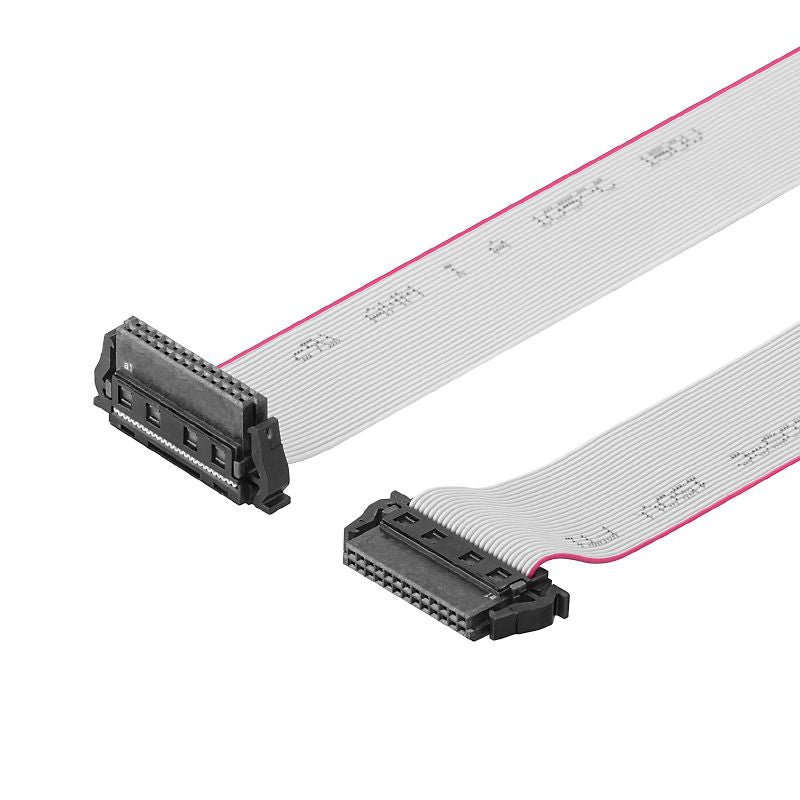

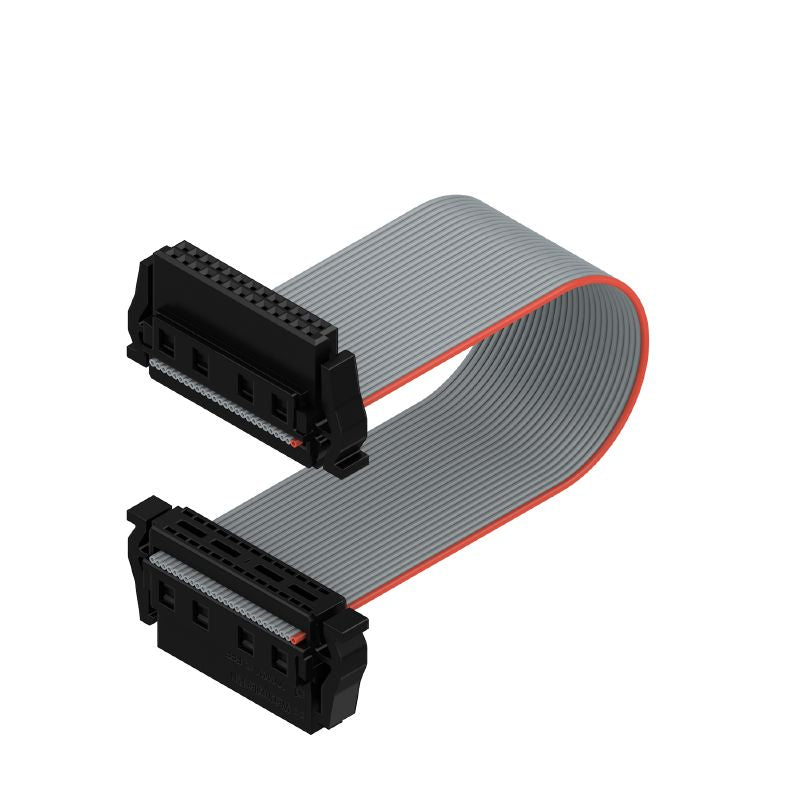

Discover the FC10 PN/26A S1 B BX female plug PCB connector, expertly designed for a 127 mm pitch and featuring 26 poles This connector not only comes packaged in a box but also adheres to RoHS standards It supports a rated current of 19 A and is ideal for insulation displacement connections (IDC) With a compact length of 122 mm (048 inches) and weighing just 51 g, it ensures efficient board-to-board signal transmission.

The device boasts a moisture sensitivity level of 1, a flammability rating of V-0, and provides IP20 protection, along with a durability of up to 500 plugging cycles Perfect for your electronic connection needs!.

Features and Benefits:

•Compliant with RoHS without exemptions.

•Insulation displacement connection method.

•Operating temperature range from -20 °C to 105 °C.

•Storage temperature range from -40 °C to 70 °C.

•Material includes LCP, copper alloy, and various plated contacts.

•Low volume resistance of <25 mΩ.

•Pulling and plugging forces of 0.6 N.

•Designed for board-to-board electrical connections.
