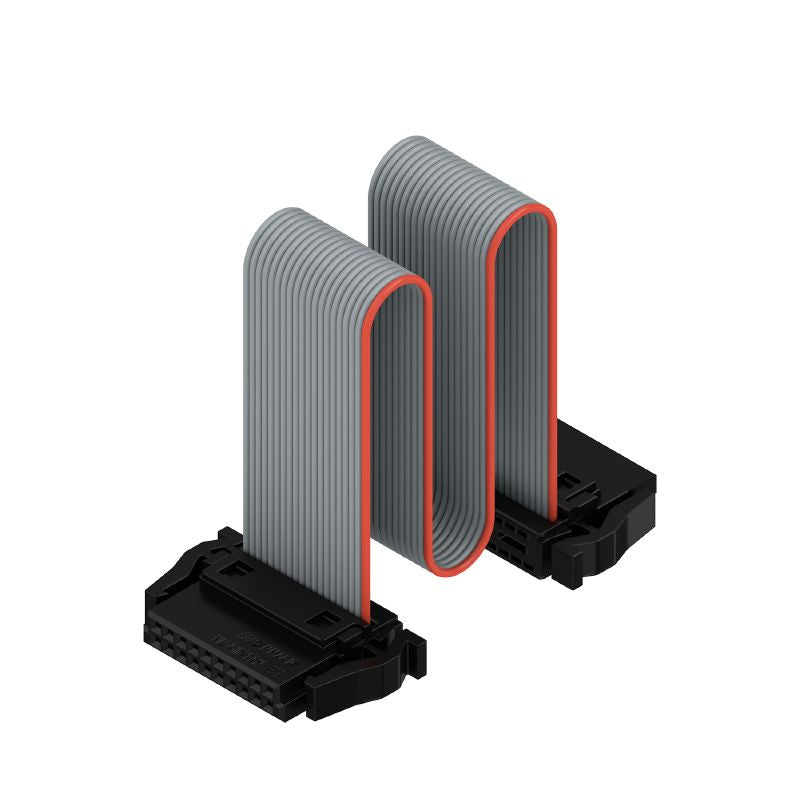

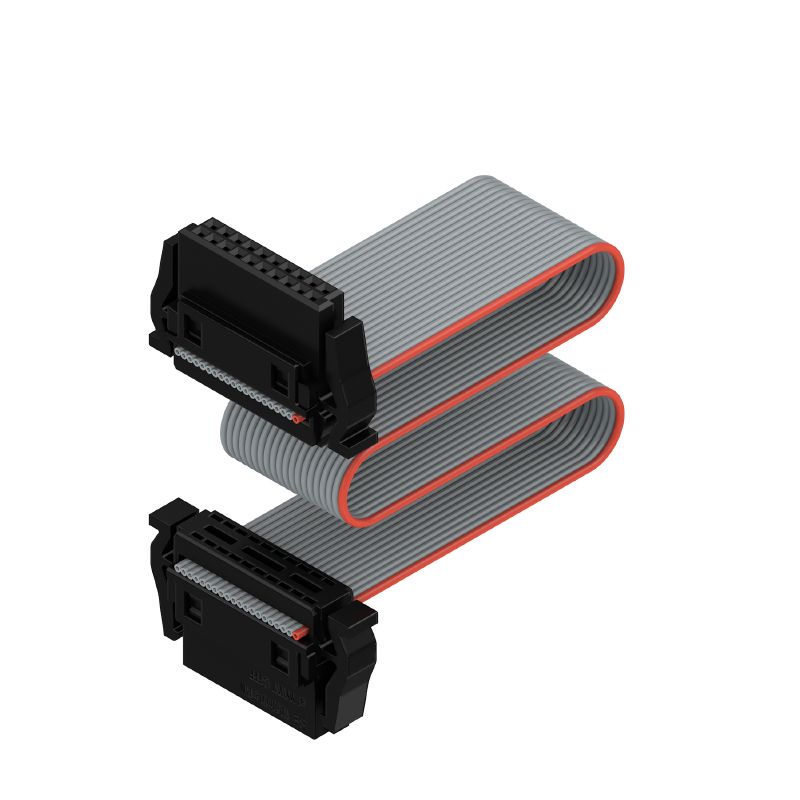

2827040000 - Female PCB Connector 1.27mm Pitch, 20 Poles, 200mm Length (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the FC20 TN/20A S1 B BX, a precision-engineered female PCB plug-in connector featuring a compact 127 mm pitch and 20 poles This connector is ideal for insulation displacement connections (IDC) and accommodates a cable length of 200 mm It adheres to RoHS regulations, ensuring it meets environmental standards without exemptions Each box contains ten connectors, each rated for a dependable current of 1.

9 A Designed for versatility, it offers a plugging cycle capacity of up to 500 cycles and includes a 90°/270° conductor outlet direction for flexible installation The connector is crafted from durable copper alloy, enhanced with a nickel and gold contact surface for reliable connectivity With a moisture sensitivity level of 1, it performs excellently in a temperature range of -40 °C to 125 °C, making it suitable for various applications.

The grey insulating material completes its robust design, making it a reliable choice for your connectivity needs.

Features and Benefits:

•RoHS compliant without exemptions.

•Insulation displacement connection.

•Suitable for AWG 30/1, 30/7 wire connection.

•Rated current of 1.9 A.

•500 maximum plugging cycles.

•Grey insulating material.

•IPC conformity according to IPC-A-610 'Class 2'.

Specifications:
