2747380000 - 1.27mm Female PCB Connector, 32 Poles, RoHS Compliant (Pack of 280)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

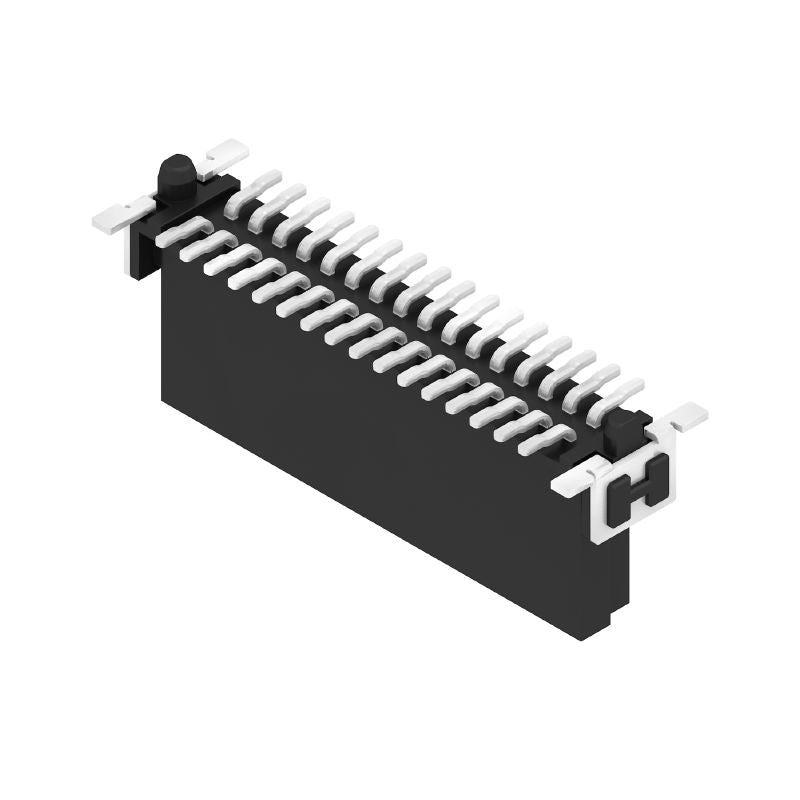

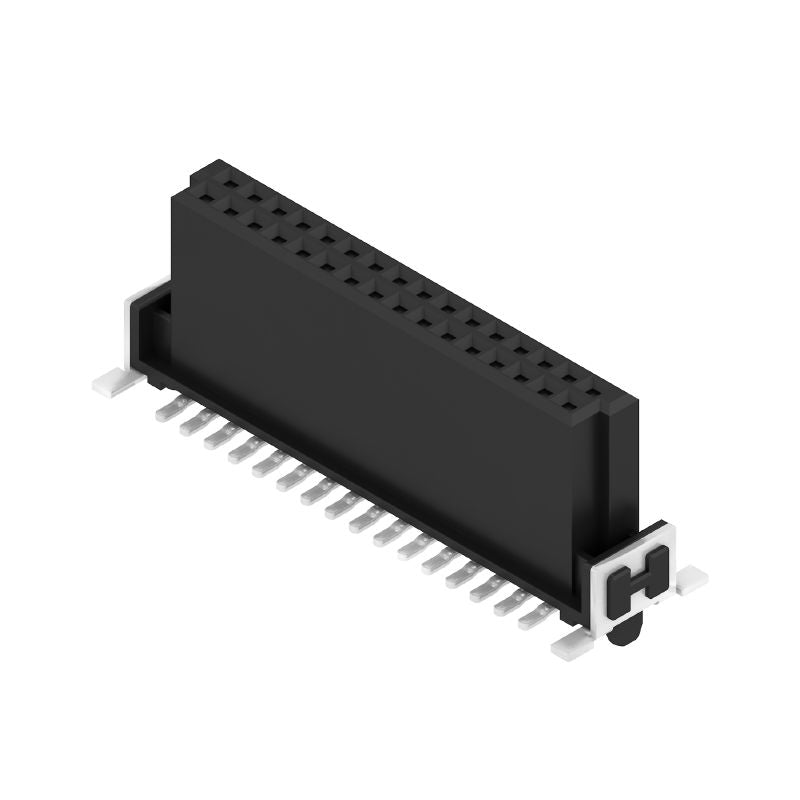

Introducing the FFH9 S1/32V F1 B RL, a robust PCB plug-in connector crafted with a female header tailored for surface mount soldering This connector accommodates up to 32 poles and features a 127 mm pitch with a 180° angled exit for versatile installation It meets RoHS guidelines, ensuring environmentally friendly use, along with an IEC rating of 28 A and a UL voltage rating of 150 V As part of the OMNIMATE Signal series, this connector also adheres to various environmental compliance standards, making it a reliable choice for your electronic projects.

Features and Benefits:

•Certified for RoHS compliance without exemption.

•Conforms to international standards and norms.

•Allows easy PCB mounting via SMD solder connection.

•High transmission rate of 3.125 Gbit/s.

•Endures up to 500 plugging cycles.

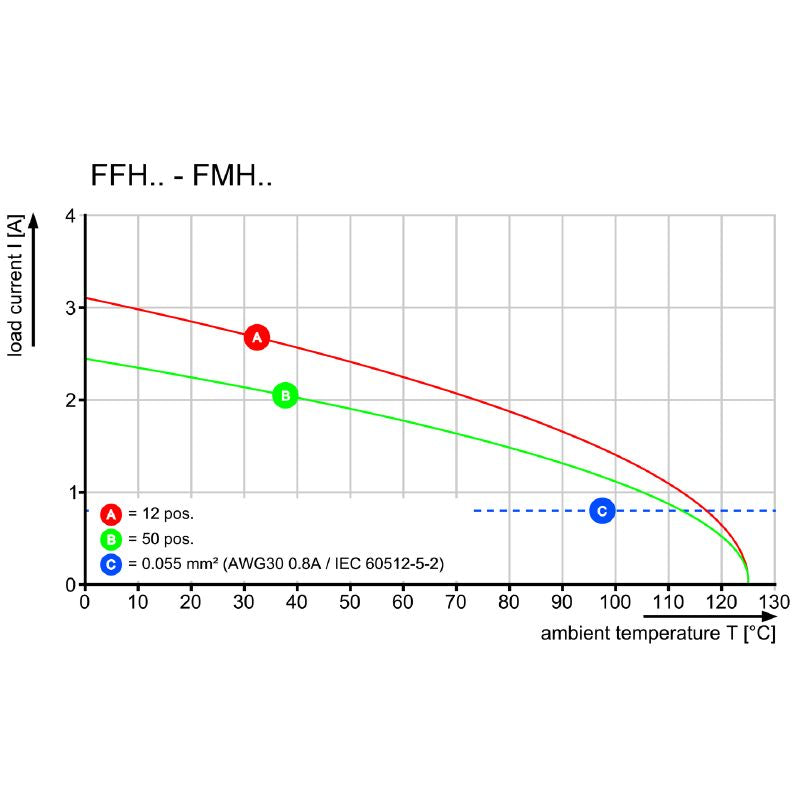

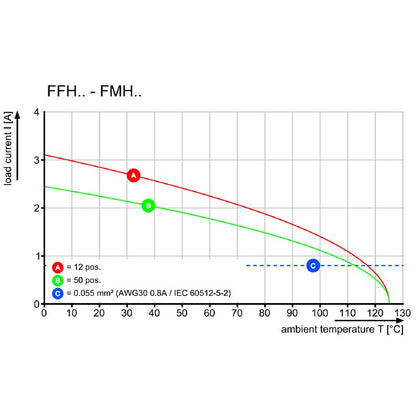

•Maximum rated current is 2.8 A.

•Supports a wide temperature range for operation from -55 °C to 125 °C.

Specifications:
