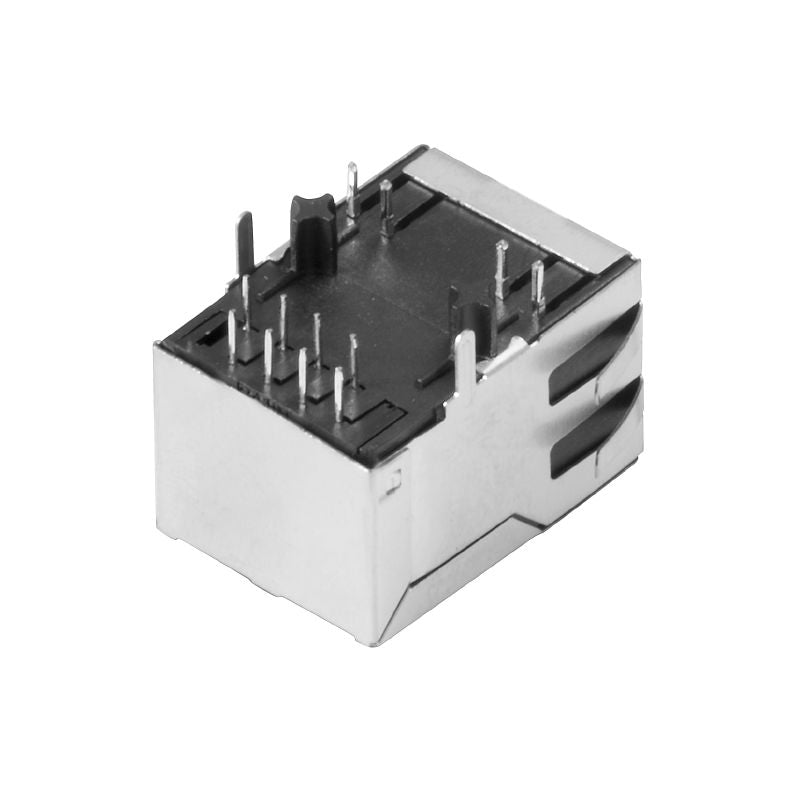

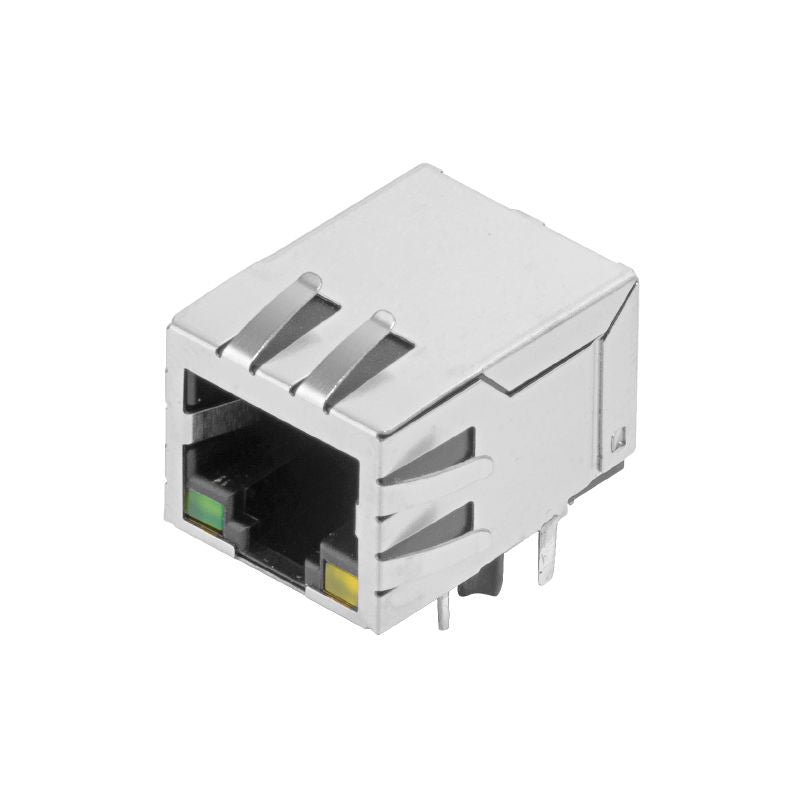

2564410000 - 90° RJ45 Transformer Jack with 8 Poles, Durable PA 9T (Pack of 200)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

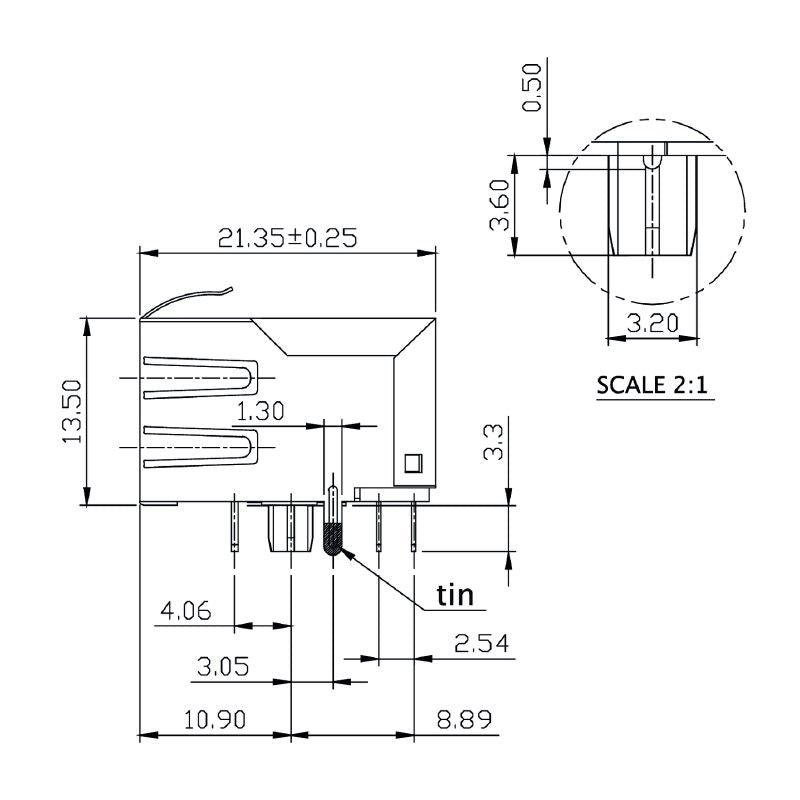

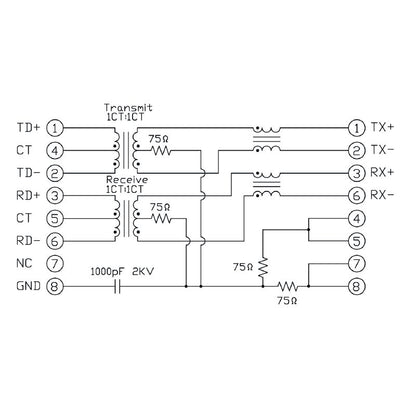

Introducing the RJ45 transformer jack, a versatile PCB plug-in connector that supports both THT and THR solder connections at a convenient 90-degree angle Equipped with six tabs, this robust connector is engineered for longevity, boasting up to 750 plugging cycles It features eight poles and is constructed from PA 9T material, further enhanced with a nickel coating ranging from 30 to 80 microinches, along with a minimum of 30 microinches of gold for superior performance.

This connector is an essential component for reliable and efficient connectivity in your electronic projects.

Features and Benefits:

•Compliant with RoHS regulations.

•Connects using a solder connection.

•Includes a lock option at the bottom.

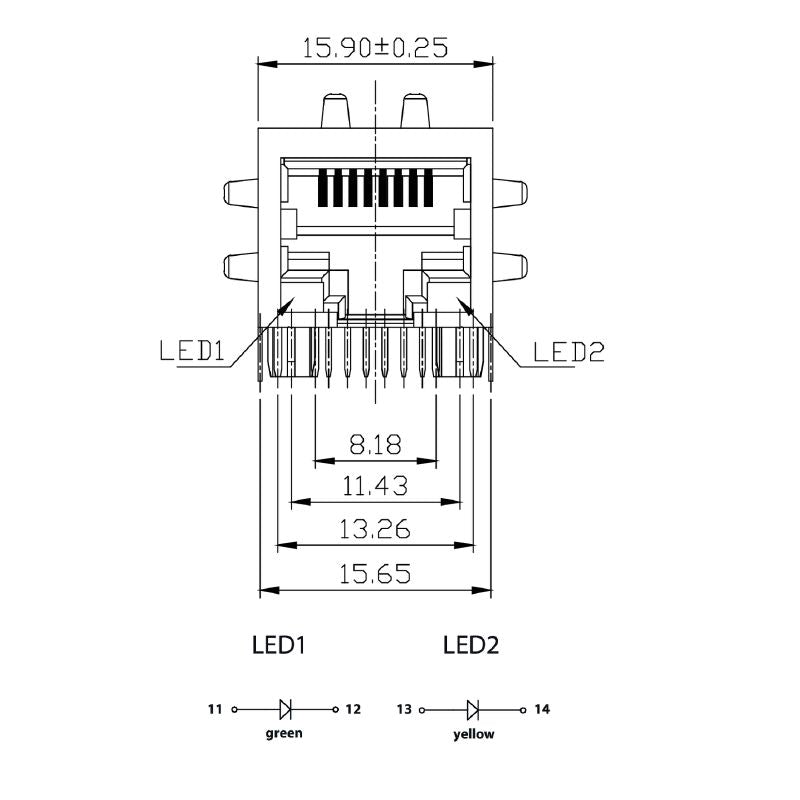

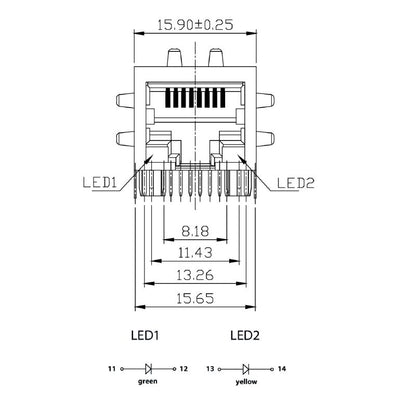

•LED indicators: green on the left and yellow on the right.

•Designed for 10/100 MBit/s performance.

•IP20 protection degree.

•Nickel-plated shielding with 6 tabs.

Specifications:
