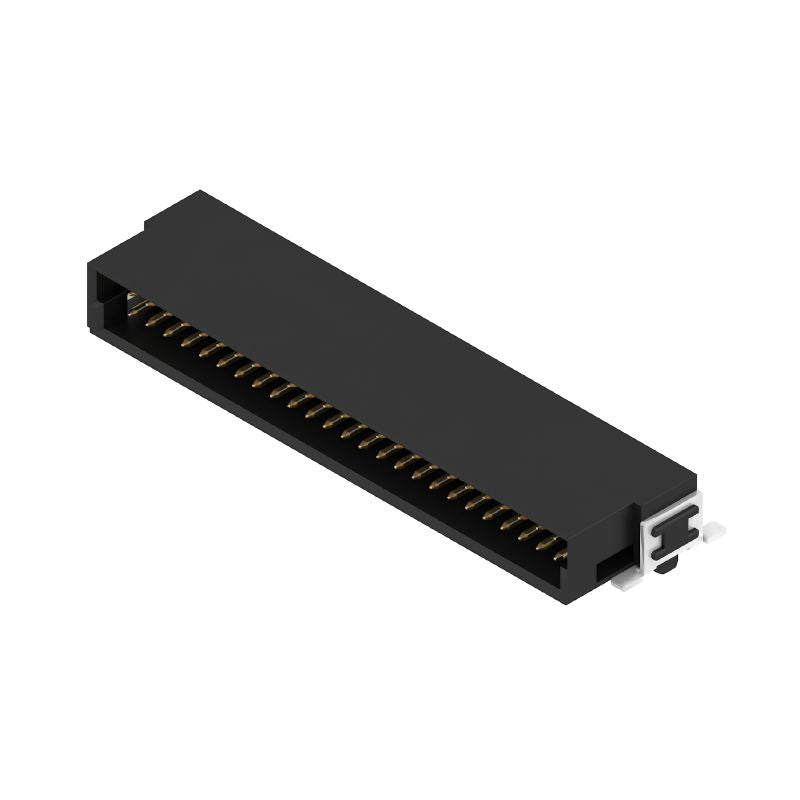

2747220000 - 50-Pole 1.27mm SMD PCB Connector with 90° Elbow (Pack of 560)

SKU: SKU: 2747220000 Download PDF

Select a Variant:

2747220000 - 50-Pole 1.27mm SMD PCB Connector with 90° Elbow (Pack of 560)

SET THE QTY:

Now $2,693.17 Web pricing policy

~~BEFORE $0.00~~ Now $2,693.17 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

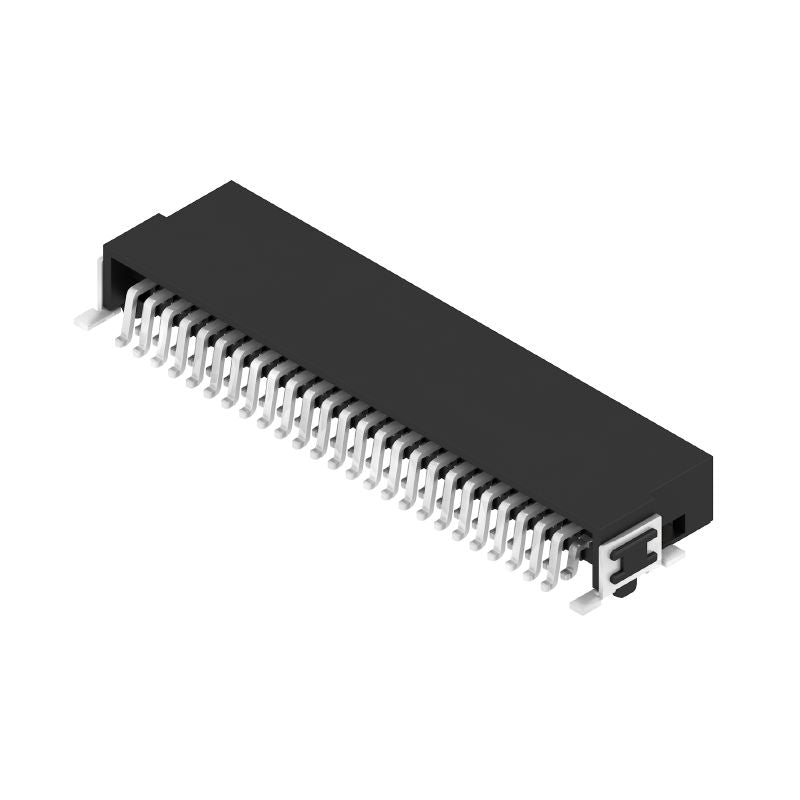

Introducing this PCB plug-in connector, expertly crafted for SMD solder connections with a compact pitch of just 127 mm It boasts an impressive 50 poles and features a 90° outgoing elbow, enhancing space efficiency in your projects Fully compliant with RoHS standards, this connector not only meets regulatory requirements but also supports environmental safety efforts As part of the OMNIMATE Signal product family, it adheres to various IEC and UL specifications, making it a reliable choice for board-to-board applications.

Features and Benefits:

•Compliant with RoHS standards.

•Suitable for board connection.

•Available in a tape packaging.

•Compatible with SMD solder connections.

•Durable with 500 plugging cycles.

•Protection degree rated at IP20.

•Insulation resistance exceeds 10^10 Ω.

•Low moisture sensitivity level (MSL) of 1.

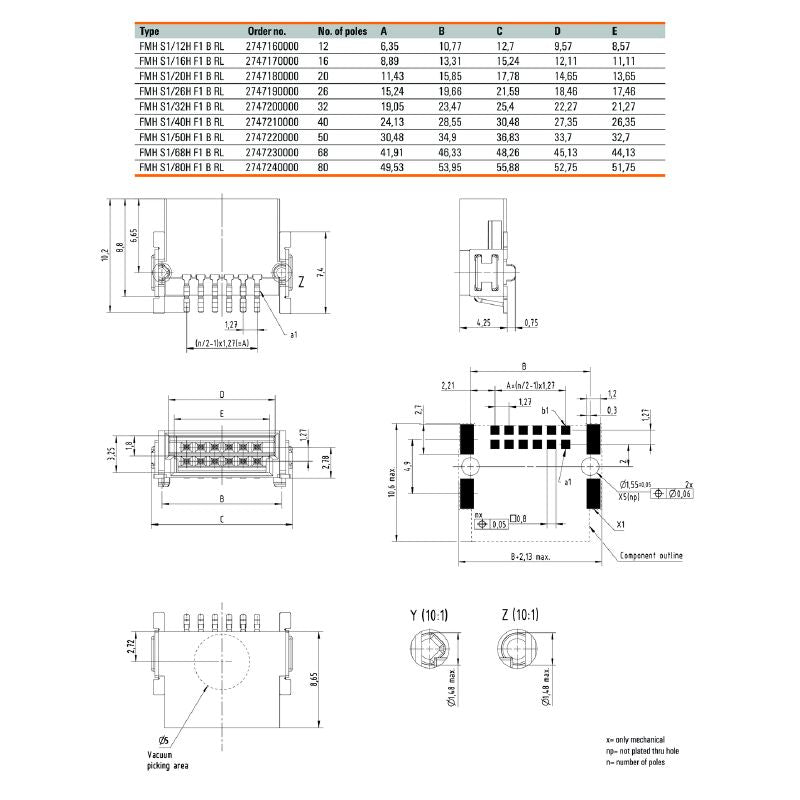

Specifications:

Depth	10.6 mm
Height	4.25 mm
Width	36.83 mm
Pitch	1.27 mm
Number of poles	50
Volume resistance	<25 mΩ
Rated current	2.8 A
Rated voltage (UL 1977)	150 V
Operating temperature	-55 °C to 125 °C
Storage temperature	-40 °C to 70 °C
Material data	{'Insulating material': 'LCP', 'Contact material': 'Cu-alloy', 'Contact surface': 'Gold over nickel'}
