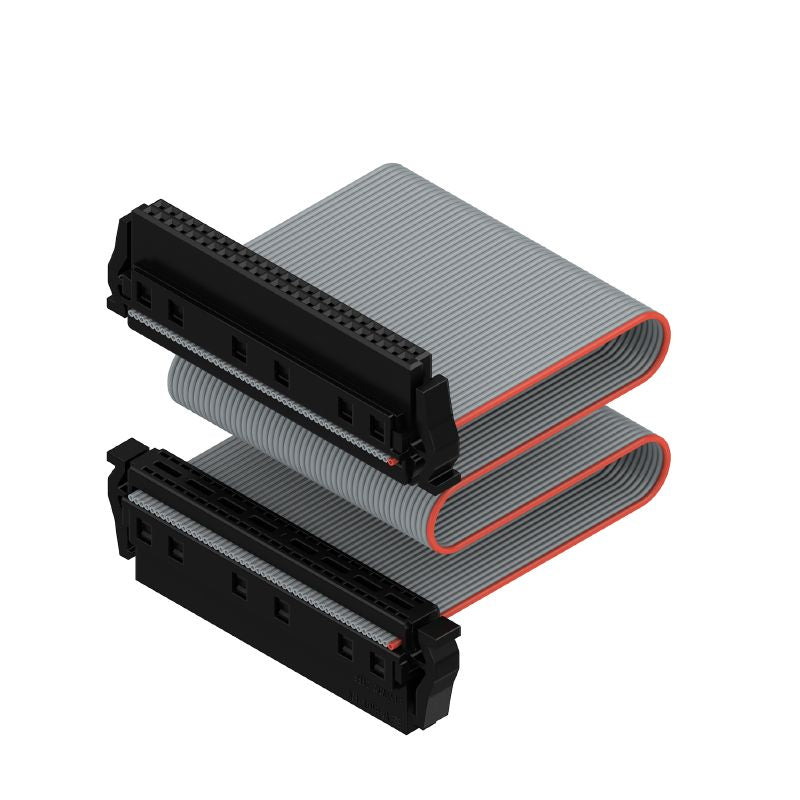

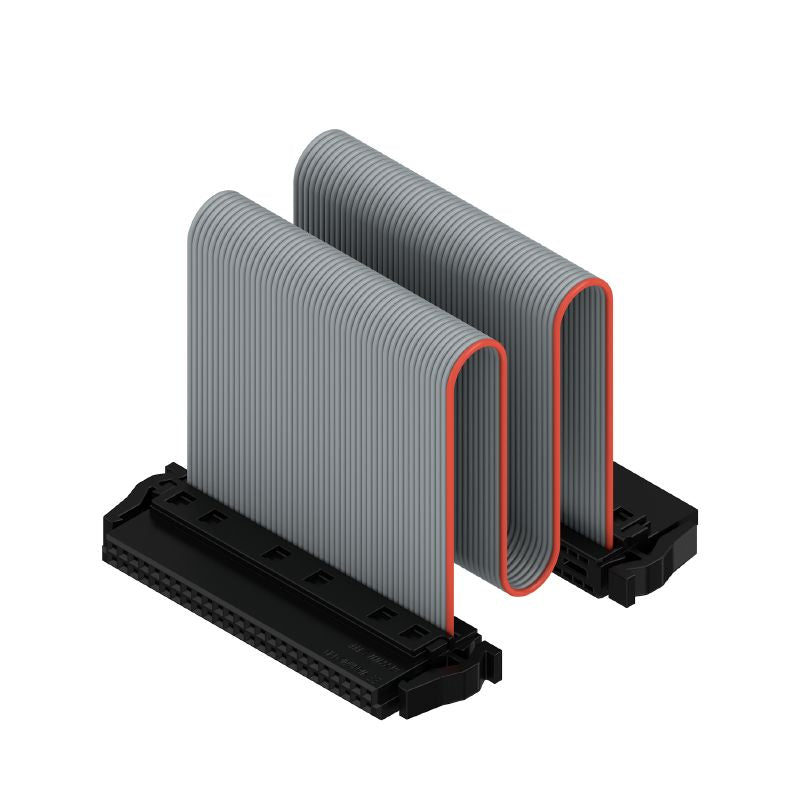

2827280000 - 50-Pole Female PCB Connector, 1.27mm Pitch, IDC, 200mm Length (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a robust PCB female plug-in connector featuring a pitch of 127 mm and accommodating up to 50 poles Packed securely in a box, this connector adheres to IEC standards with a current rating of 19 A Weighing in at just 142 g, it is fully compliant with RoHS regulations, free from any exemptions The connection is facilitated through insulation displacement connectors (IDC), and it boasts a length of 200 mm with cable exit options at both 90° and 270°.

Engineered for durability, it supports up to 500 insertion cycles, and each pole can handle a maximum plugging and pulling force of 06 N Crafted from high-quality materials including LCP for insulation, copper alloy for the contact base, and finished with a nickel/gold surface treatment, this connector is designed for reliability in various applications.

Features and Benefits:

•Designed for insulation displacement connection (IDC).

•Suitable for AWG 30/1 and 30/7 wire connection sizes.

•Resistant to temperatures ranging from -40 °C to 125 °C.

•Conforms to international standards and IPC-A-610 'Class 2'.

•Low volume resistance of <25 mΩ.

•High insulation resistance of ≥ 20 MΩ.

Specifications:
