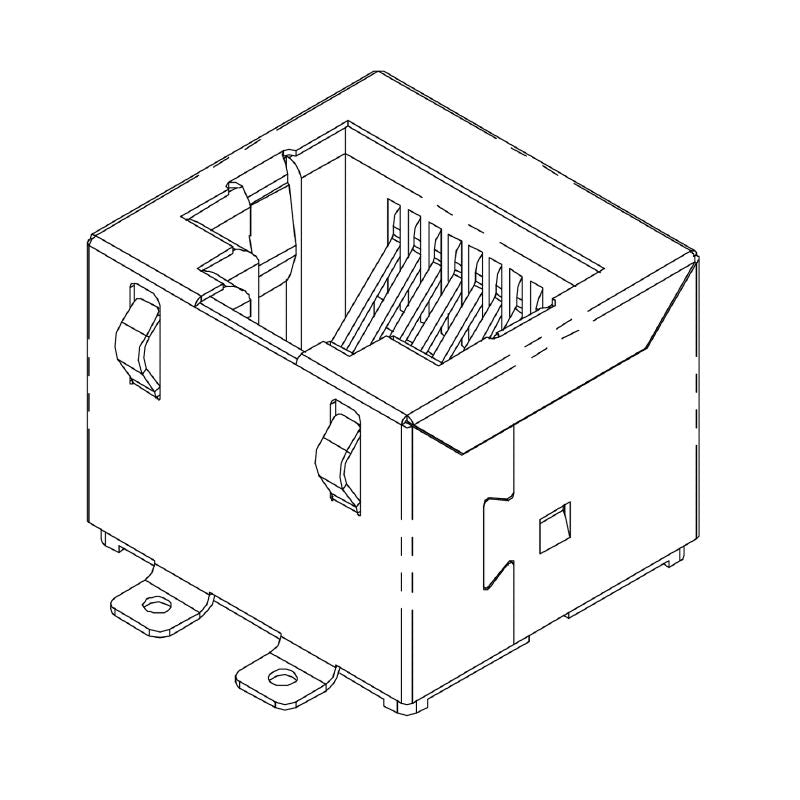

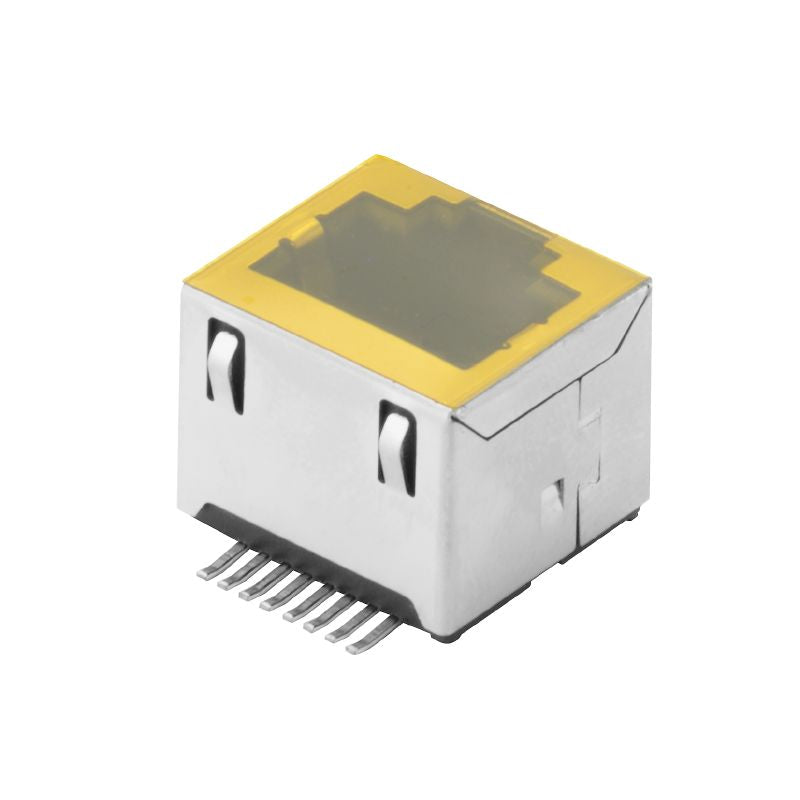

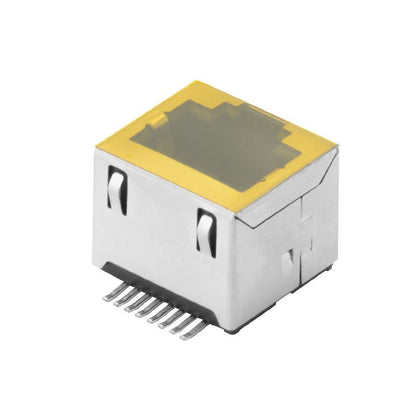

2514600000 - 180° RJ45 Modular Jack, 8 Pole Connector for Cat. 5 (Pack of 300)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RJ45 modular jack from the OMNIMATE Data series, a reliable PCB plug-in connector tailored for Cat 5 applications With a convenient 180° angle and a surface mount solder connection, this connector effectively manages 8 poles secured by 4 tabs It is engineered to withstand up to 750 plugging cycles, making it an excellent choice for a range of electronic applications.

Features and Benefits:

•Designed for Cat. 5 applications.

•Compliant with RoHS regulations.

•Offers a solder flange for side termination.

•Comes in tape packaging for easier handling.

•Solder eyelet hole diameter tolerance of ± 0.1 mm.

•Capable of withstanding temperatures from -40 °C to 85 °C.

•Insulation resistance of ≥ 500 MΩ.

•Surface resistance of Rs = 10^9 - 10^12 Ω.

Specifications:
