2747100000 - 26-Pole 1.27mm PCB Connector with Elbow Design (Pack of 280)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

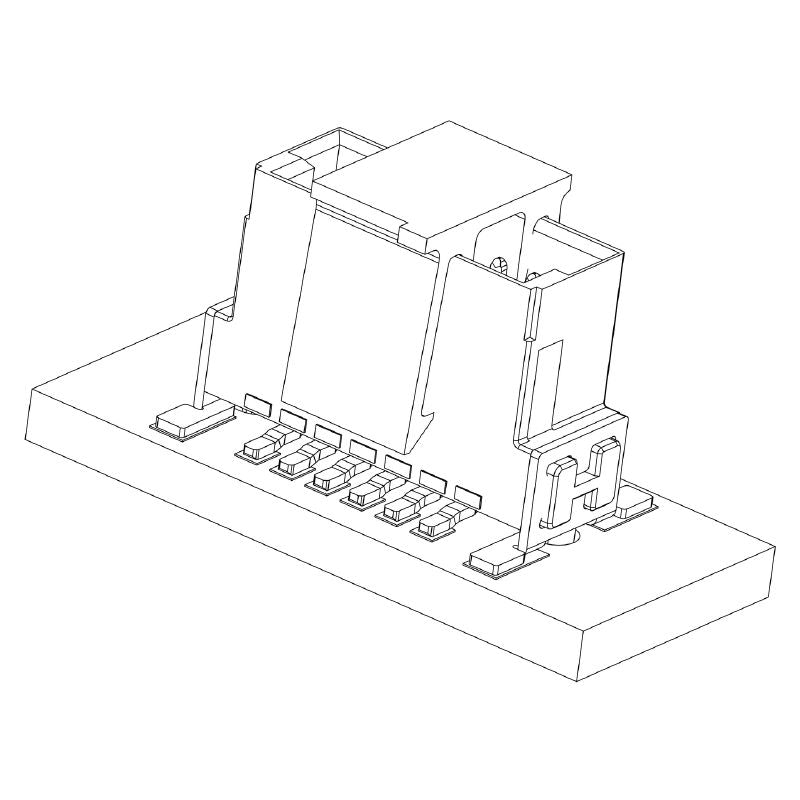

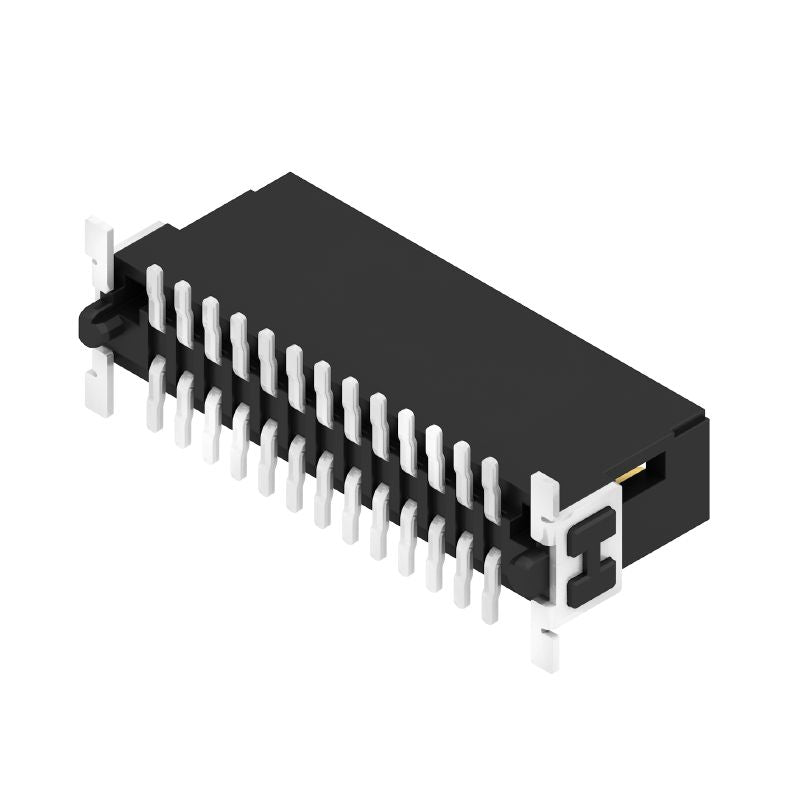

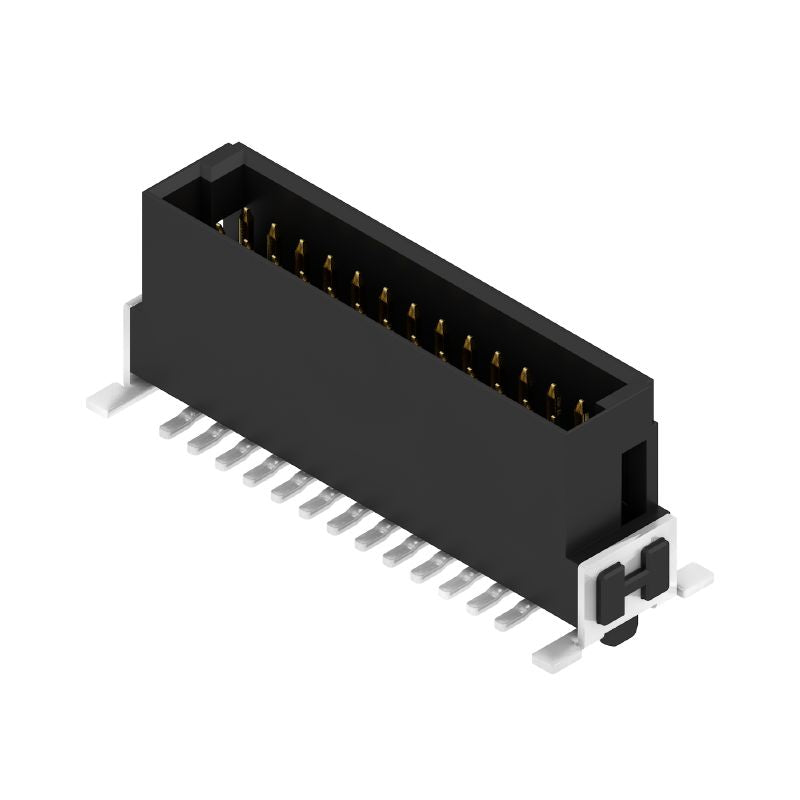

Introducing a versatile male header PCB plug-in connector, expertly crafted for SMD soldering applications This connector boasts a compact pitch of 127 mm and is equipped with 26 poles, featuring a functional 180° outgoing elbow for efficient connections Adhering to RoHS compliance, it meets stringent environmental regulations For smooth handling and application, the connector is conveniently packaged on tape.

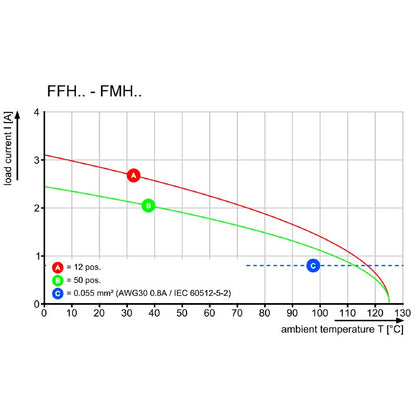

It supports a maximum rated current of 28 A, conforming to IEC standards, and can handle voltages up to 150 V, as specified by UL standards.

Features and Benefits:

•RoHS compliant without exemption.

•Mounting onto the PCB via SMD solder connection.

•Coplanarity of 0.1 mm.

•Protection degree of IP20.

•Volume resistance of less than 25 mΩ.

•Capable of withstanding 500 plugging cycles.

•Storage temperature range from -40 °C to 70 °C.

•Operating temperature range from -55 °C to 125 °C.

•Used as a signal connector in board-to-board applications.

Specifications:
